Nordhavn 96

A ten-foot extension of the Nordhavn 86 platform, adding volume to the cockpit, saloon, upper deck and crew areas.

Current model

Overview

The 96 retains the Nordhavn 86 hull platform but extends the cockpit and decks to create more space across several levels.

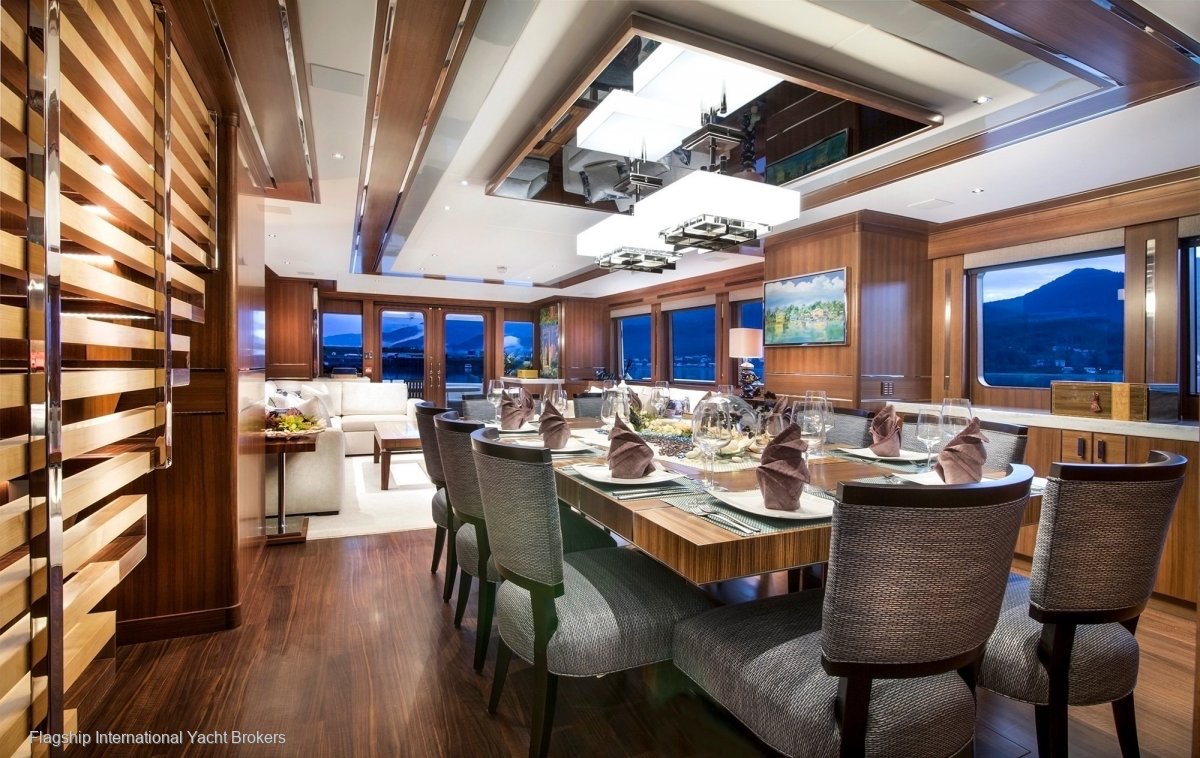

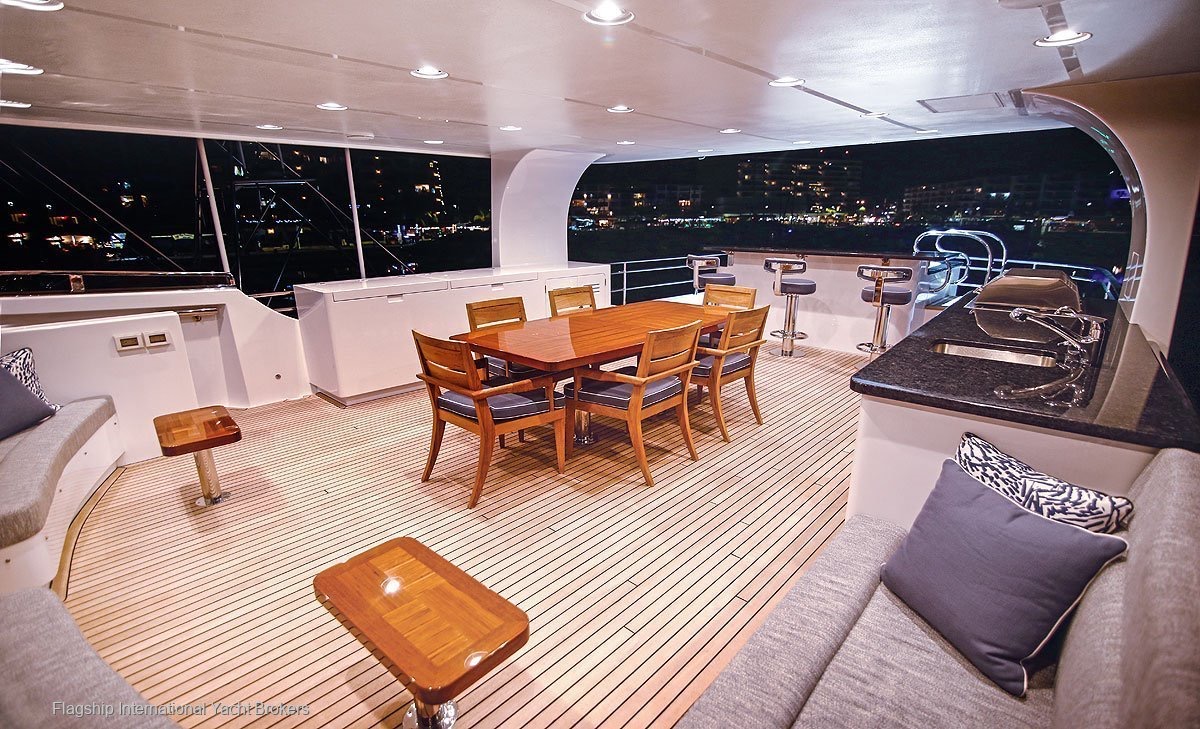

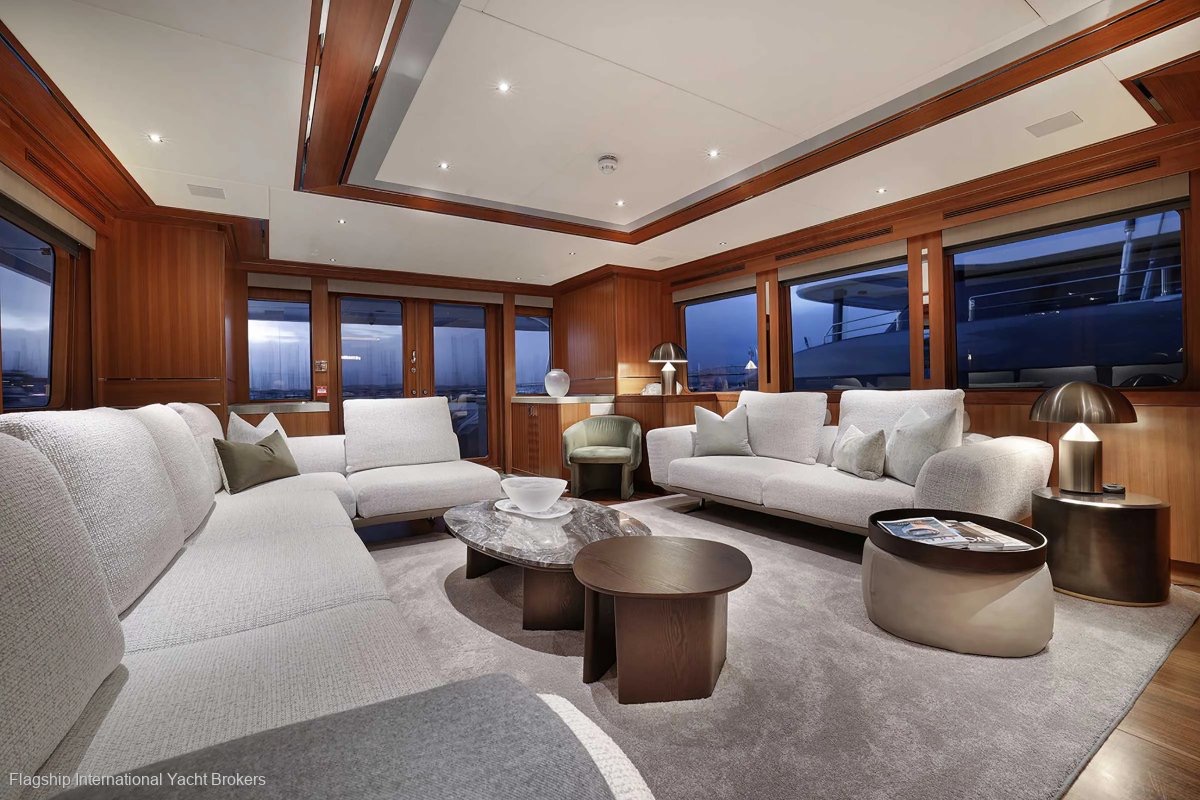

The additional length enlarges the saloon, crew area, lazarette, flybridge and either the skylounge or upper owner suite, depending on layout.

Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.

Nordhavn 96

Quick specifications

Length overall
96' 7" / 29.44 M
Waterline length
86' 11" / 26.21 M
Beam
24' 0" / 7.32 M
Draft
8' 2" / 2.49 M
Displacement
400,000 lbs. / 181.44 MT

Nordhavn 96

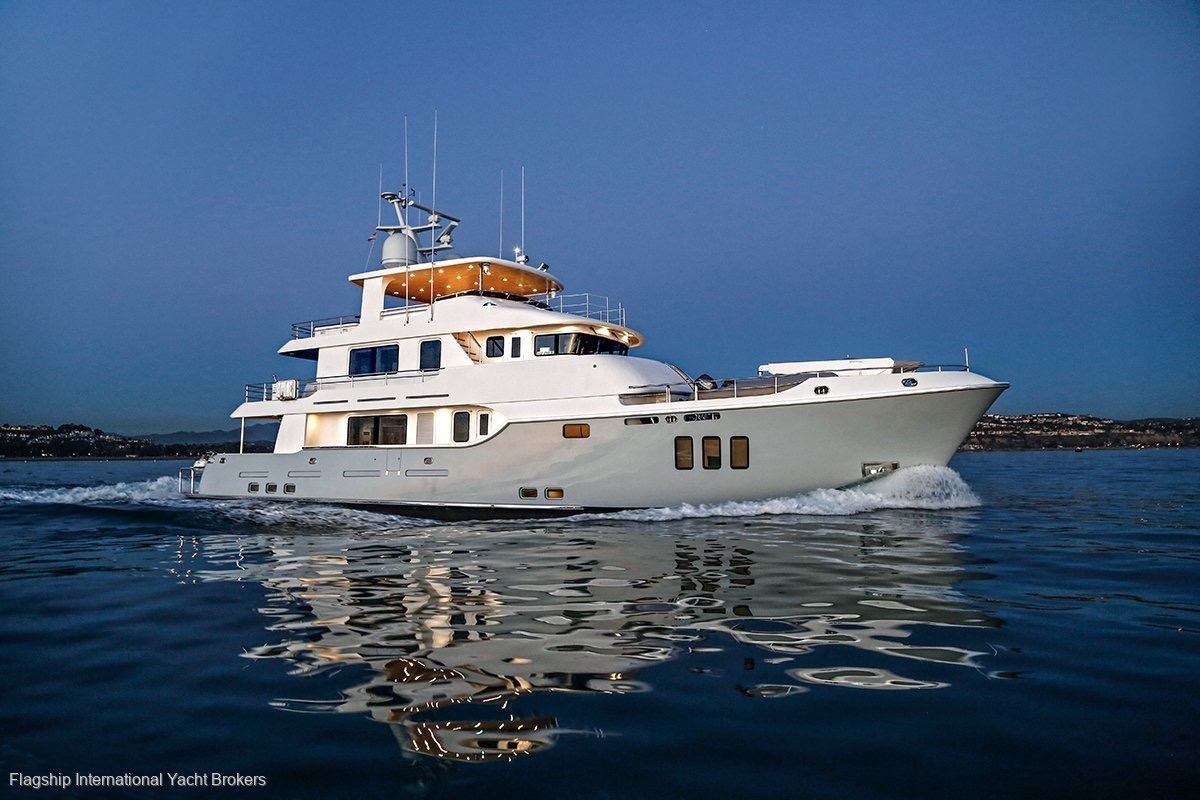

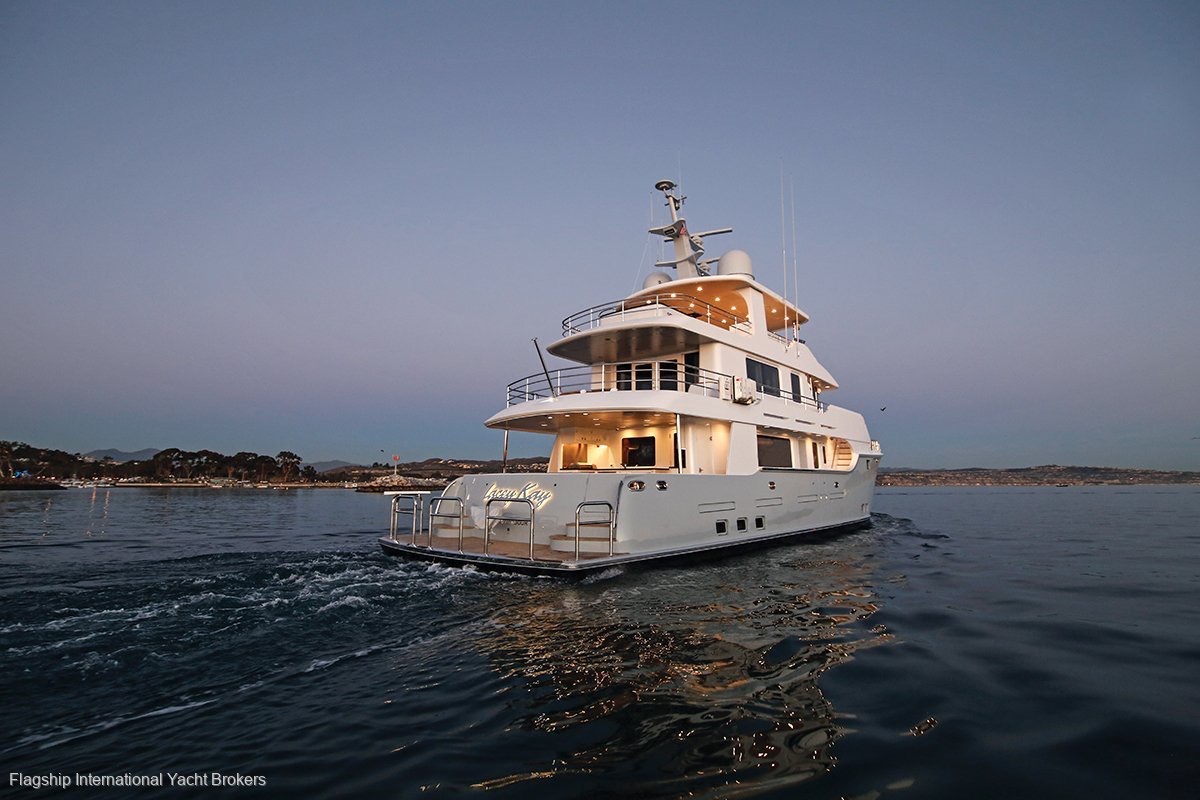

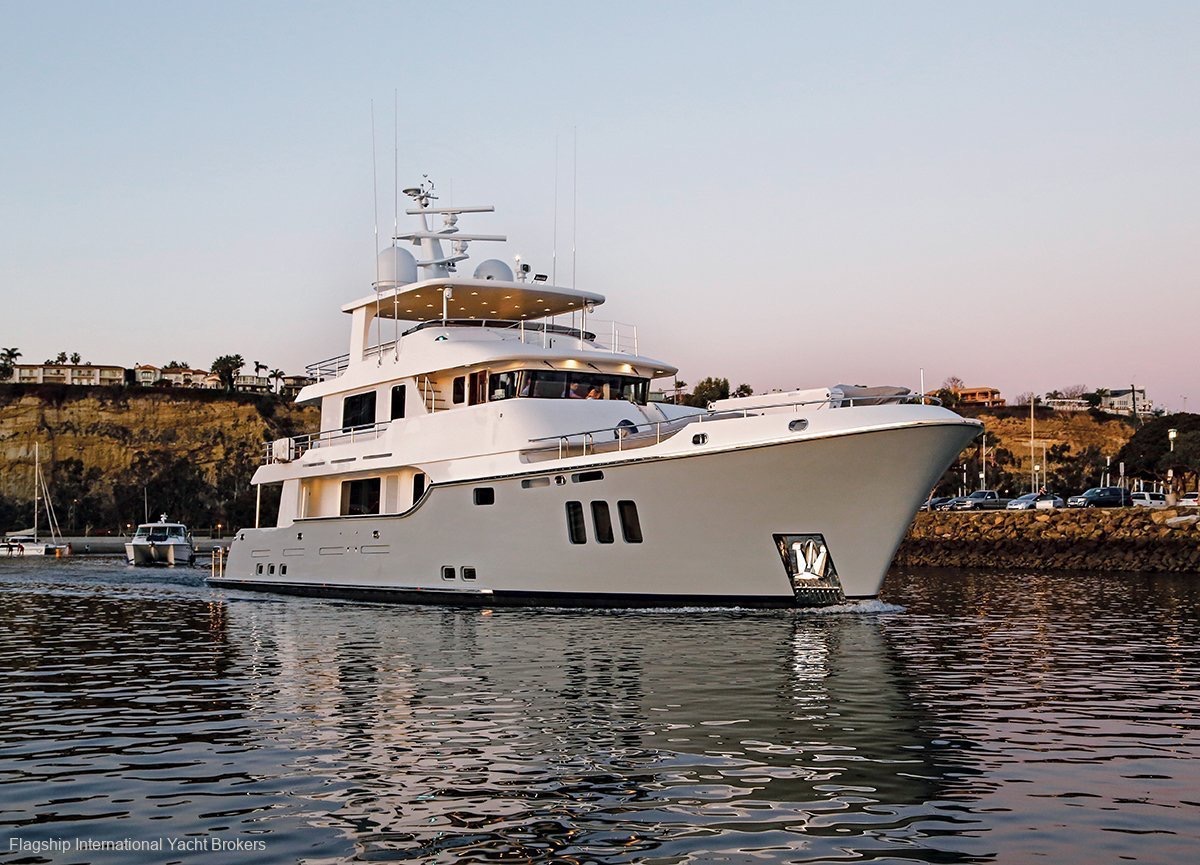

Photos

41 photos.

Nordhavn 96, image 11 / 41

1 / 41

Nordhavn 96, image 1

Nordhavn 96

Specifications

Confirm equipment and final build configuration with Nordhavn Australia.

Dimensions and construction
ModelNordhavn 96
Length29.44 m
Beam24' 0" / 7.32 m
Draft8' 2" / 2.49 m
Displacement400,000 lbs / 181.44 MT
DesignerNordhavn Yachts
BuilderNordhavn Yachts
Hull materialFibreglass/GRP
Deck materialFibreglass
Propulsion and performance
EngineTwin MTU 600 hp each
Engine makeMTU
Power600 hp per engine
Number of engines2
FuelDiesel
PropulsionTwin 48" counter-rotating propellers
Thrusters50 hp bow and stern thrusters
Cruising speed9-10 knots
GeneratorDual Onan generators, 40 kW and 27.5 kW
Accommodation and domestic systems
Cabins5
Berths10

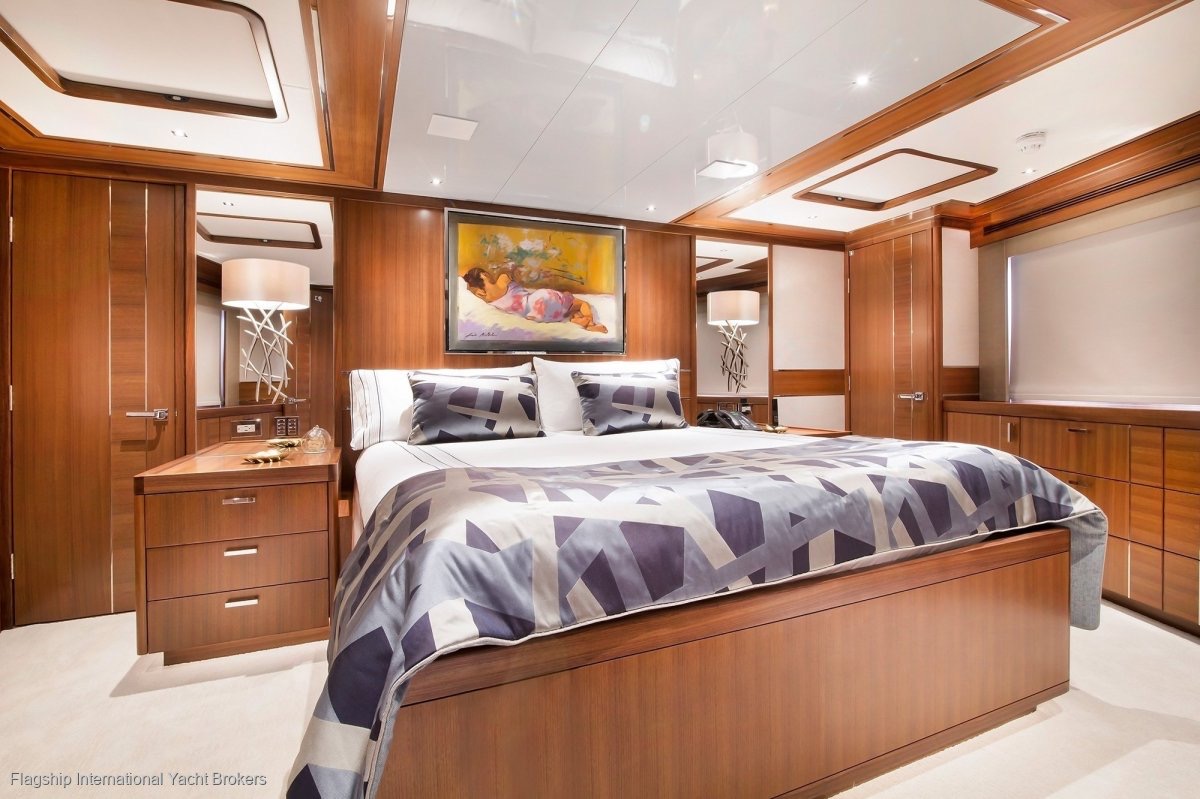

AccommodationFull-beam master cabin, 3 guest staterooms with ensuite heads, captain's cabin, crew cabin
RefrigerationSub-Zero and freezer units
Tankage, deck and safety
Fuel capacity7,000 gallons / 26,497.9 L
Water capacity3,406 L
Ground tackleMaxwell hydraulic anchor winch, dual 300 lb stainless steel anchors
Deck Gear3,500 lb hydraulic davit
Fire protectionAutomatic fire system in engine room and lazarette
Navigation and electrical

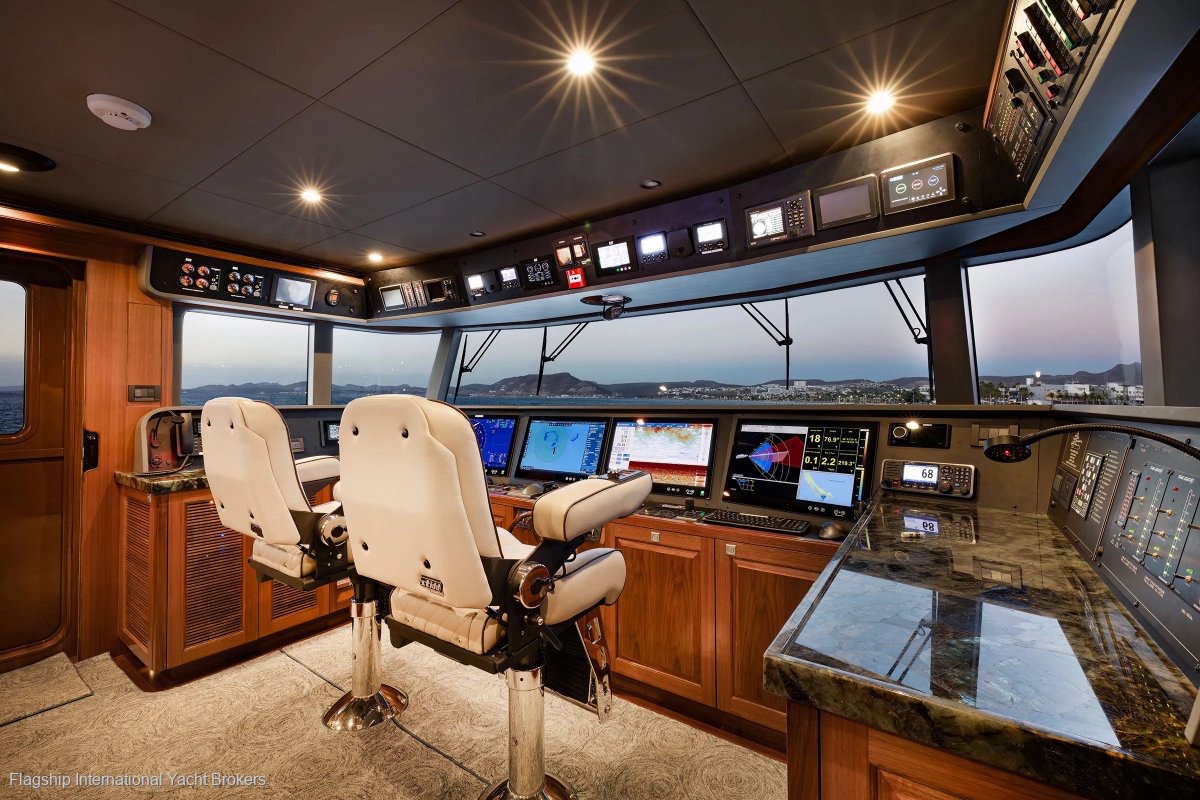

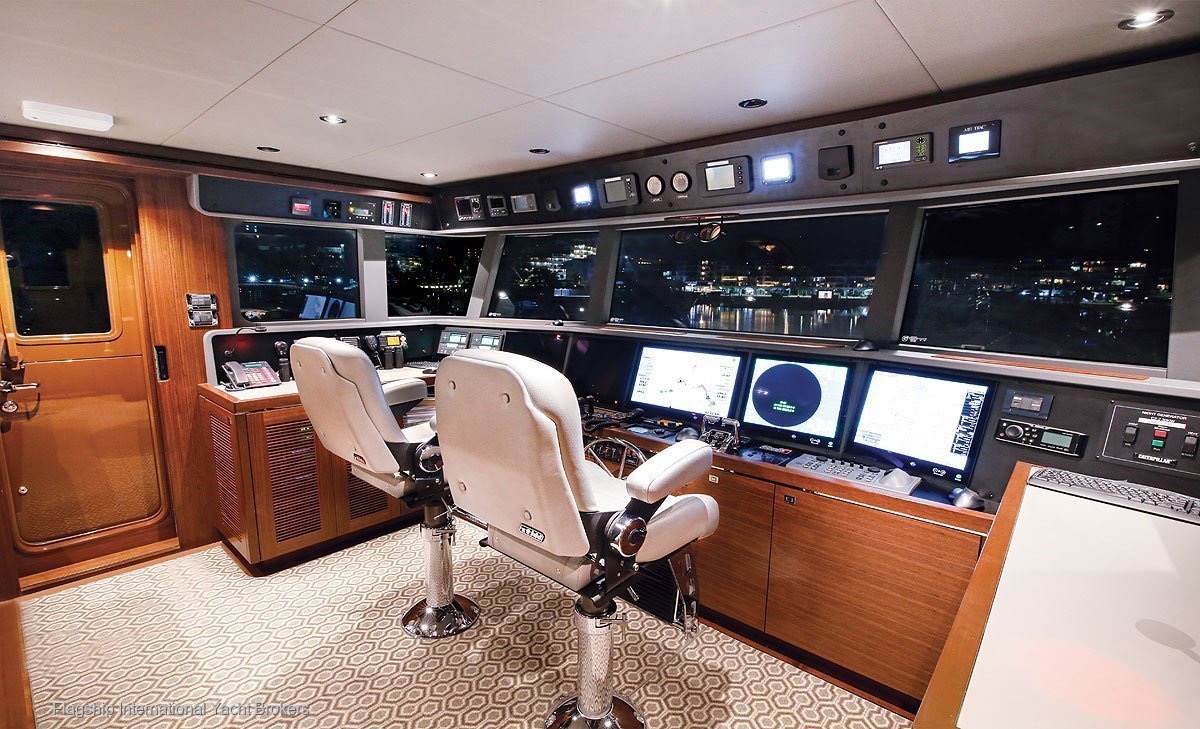

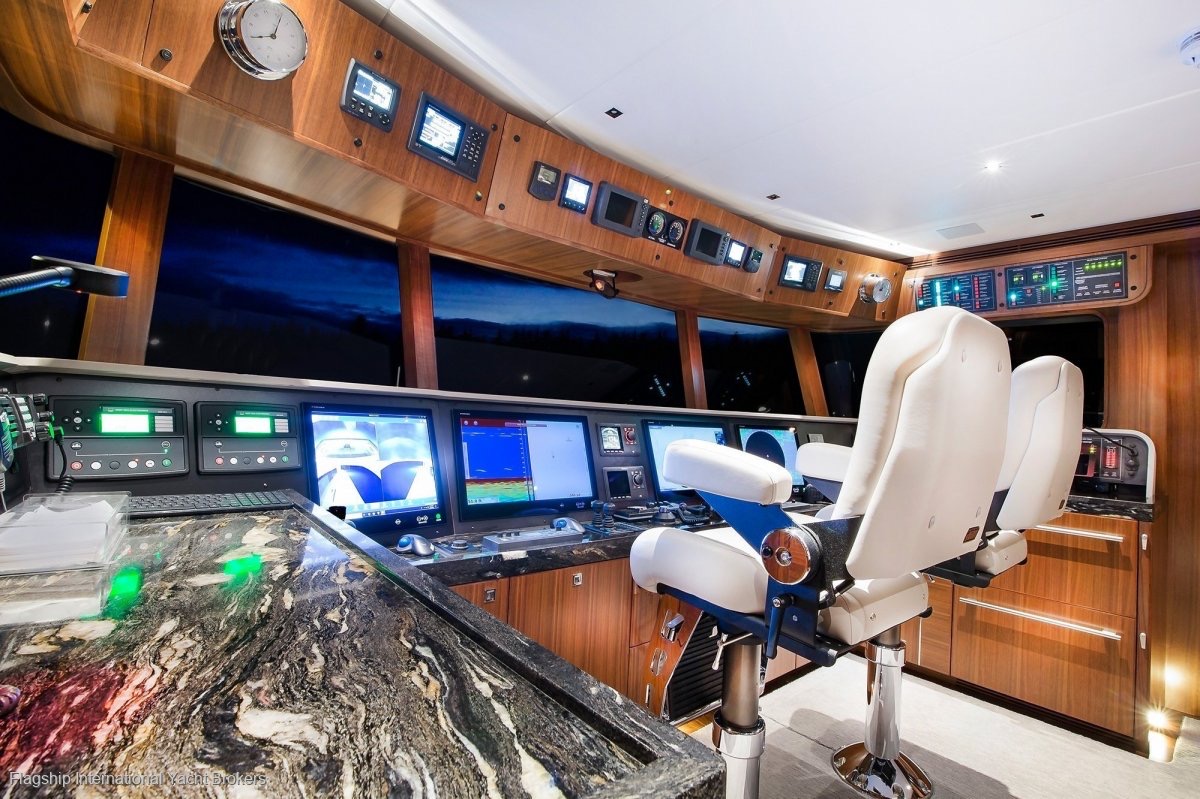

ElectronicsRaymarine navigation system, GPS, autopilot, radar, depth sounder, VHF radio
ElectricsUniversal AC electrical system, battery charger, inverter system
