Nordhavn 86

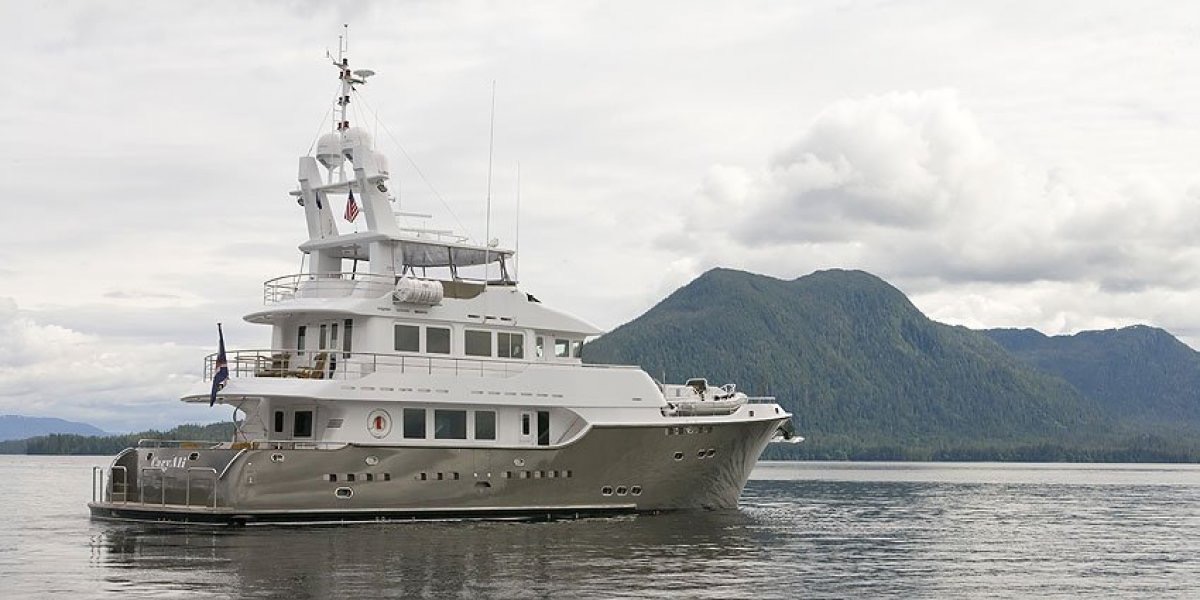

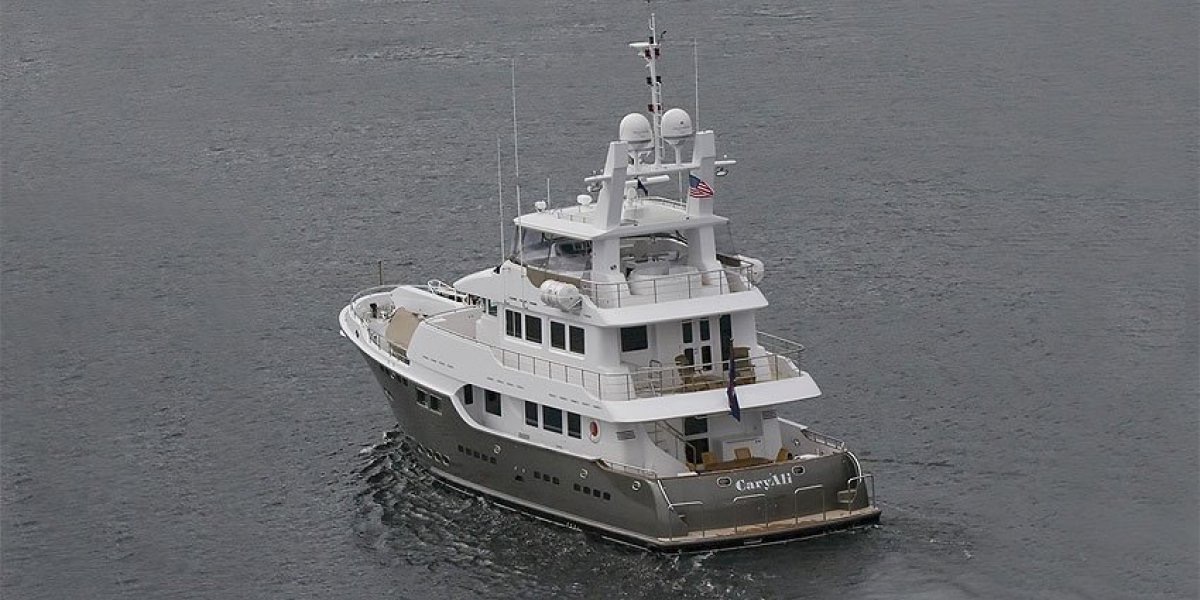

An aft-wheelhouse Nordhavn with a 7.32 metre beam, long foredeck tender stowage and separate guest and crew accommodation.
Current model
Overview

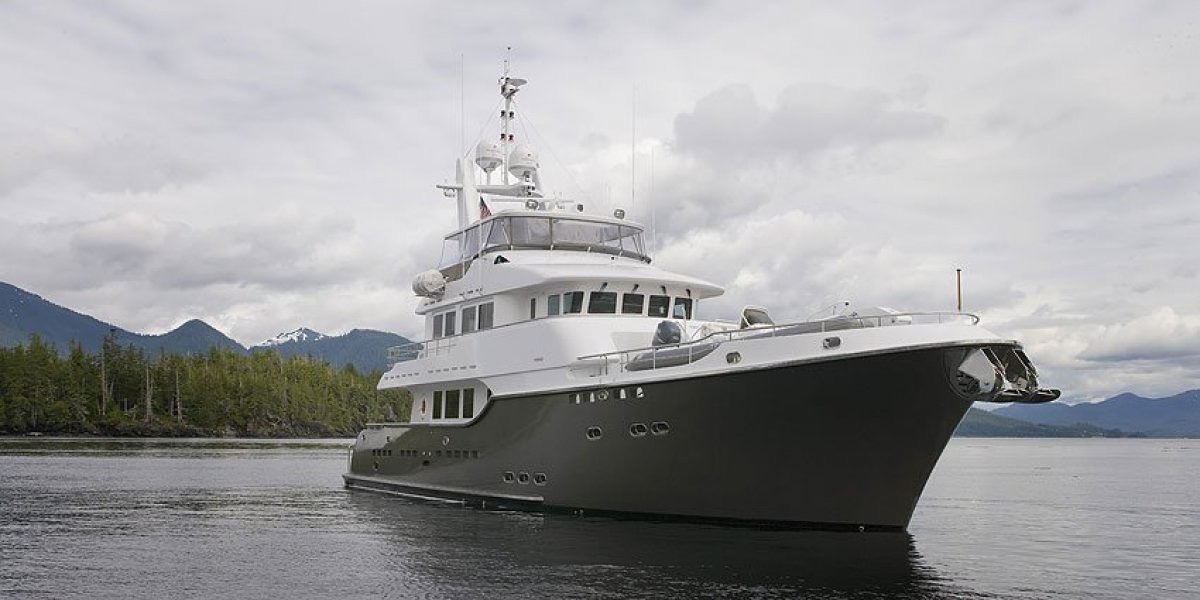

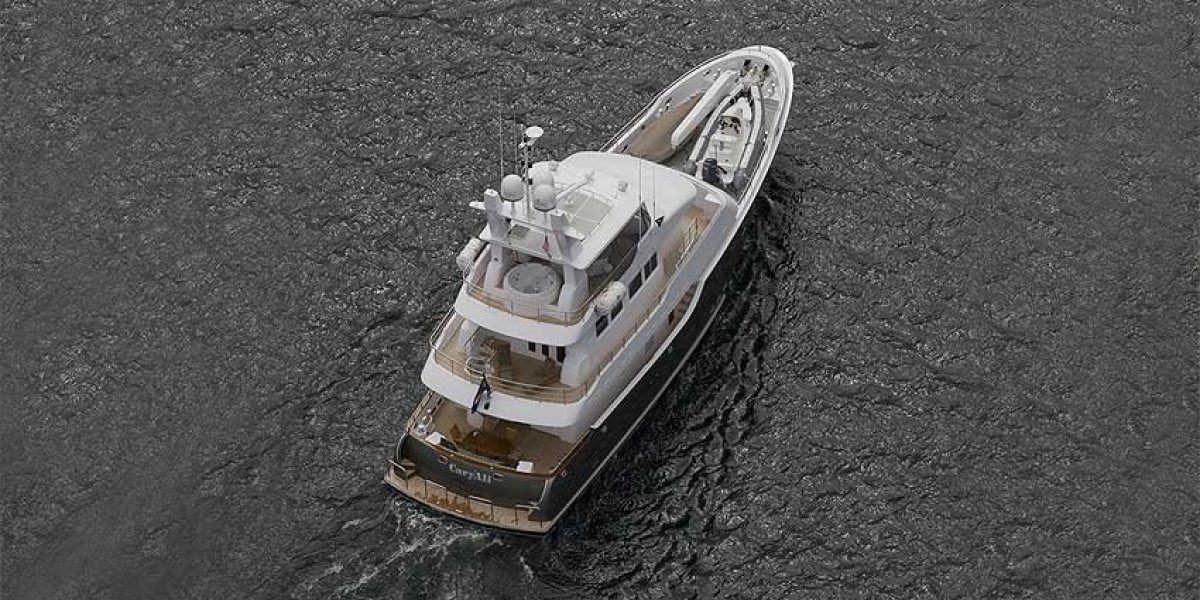

The 86 uses an aft-wheelhouse configuration and a long foredeck capable of carrying a tender up to about 6 metres.

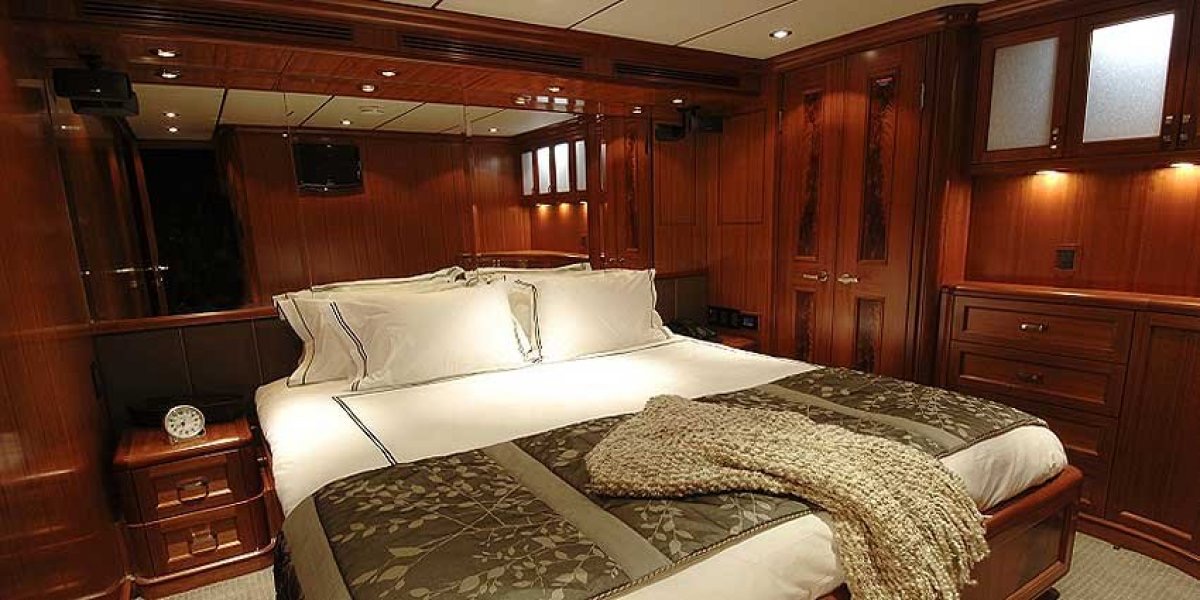

Its interior plan includes a full-width owner suite, three guest staterooms, a captain cabin, skylounge and a separate aft crew cabin.
Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.
Nordhavn 86
Quick specifications
- Length overall
- 86' 7" / 26.39 M
- Waterline length
- 77' 11" / 23.75 M
- Beam
- 24' 0" / 7.32 M
- Draft
- 8' 2" / 2.49 M
- Displacement
- 400,000 lbs. / 181.44 MT
Nordhavn 86
Photos
27 photos.
1 / 27Nordhavn 86
Specifications
Confirm equipment and final build configuration with Nordhavn Australia.
Dimensions and construction
ModelNordhavn 86
Length26.39 m
Beam24' 0" / 7.32 m
Draft8' 2" / 2.49 m
Displacement400,000 lbs / 181.44 MT
DesignerPAE (Pacific Asian Enterprises)
BuilderPAE
Hull materialFibreglass/GRP
Deck materialFibreglass
Propulsion and performance

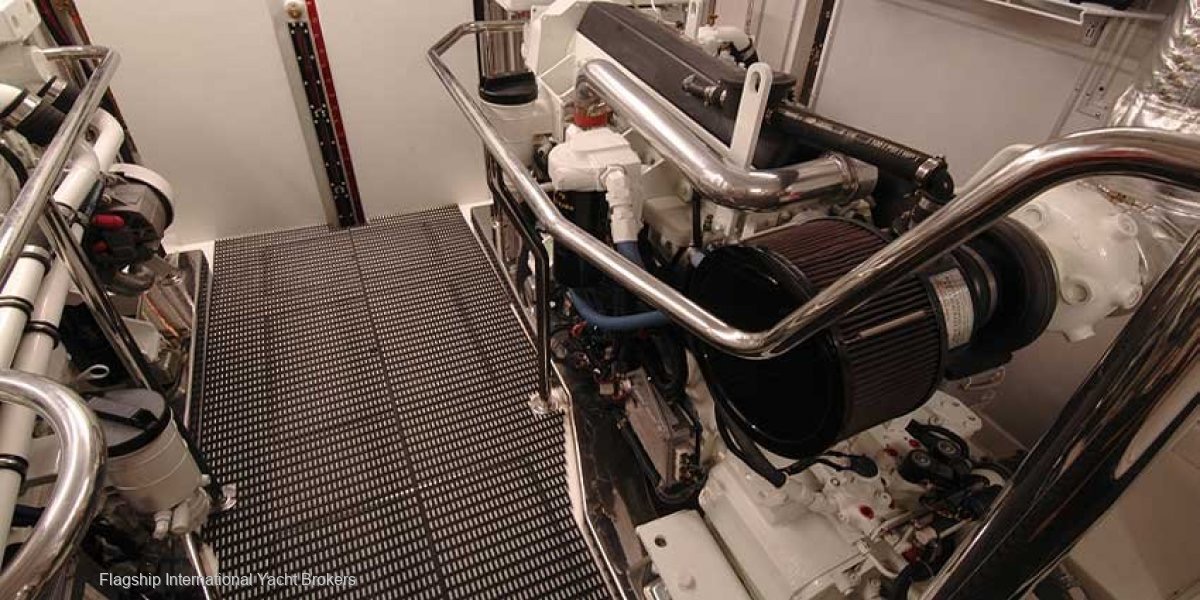

EngineTwin MTU 600 hp each
Engine makeMTU
Power600 hp each
Number of engines2
FuelDiesel
PropulsionTwin 48" counter-rotating propellers
Thrusters50 hp bow and stern thrusters
Cruising speed10 knots

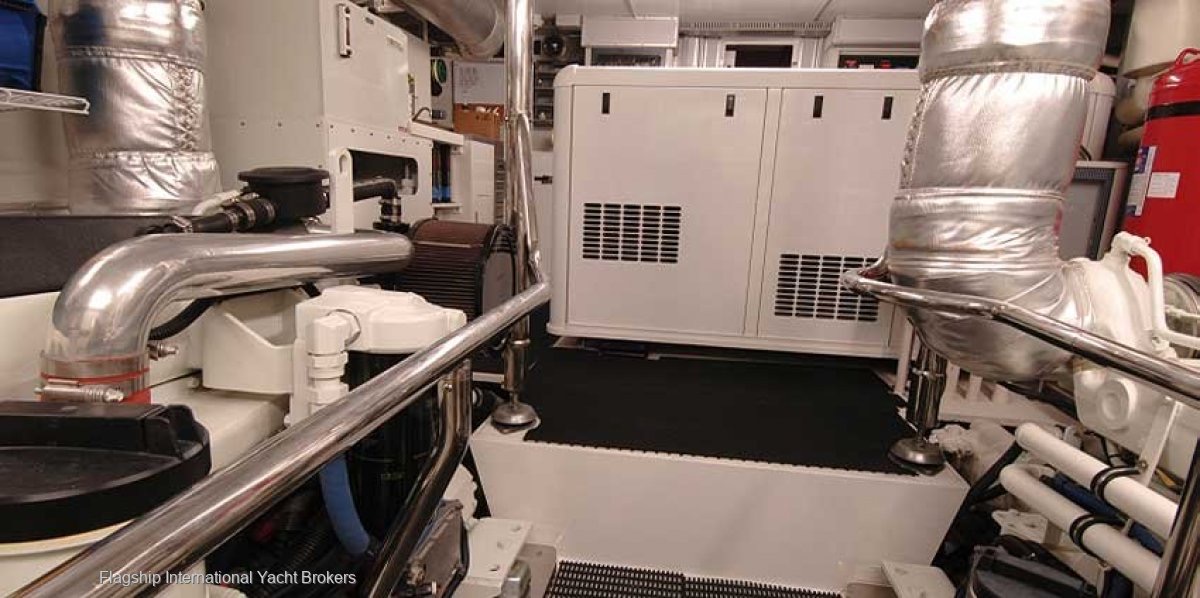

GeneratorDual Onan generators, 40 kW and 27.5 kW
Accommodation and domestic systems
Cabins5
Berths10
RefrigerationSub-Zero and additional freezer units
Tankage, deck and safety
Fuel capacity7,000 gallons / 26,497 L
Water capacity3,406.9 L
Deck Gear3,500 lb hydraulic davit

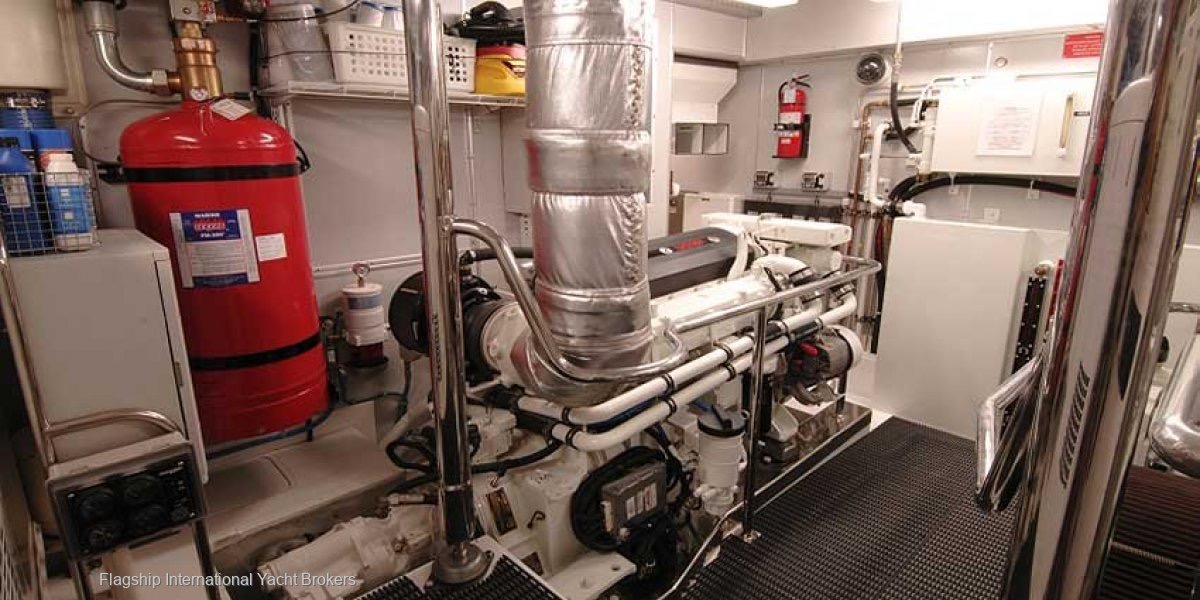

Fire protectionAutomatic fire system in engine room and lazarette
Navigation and electrical

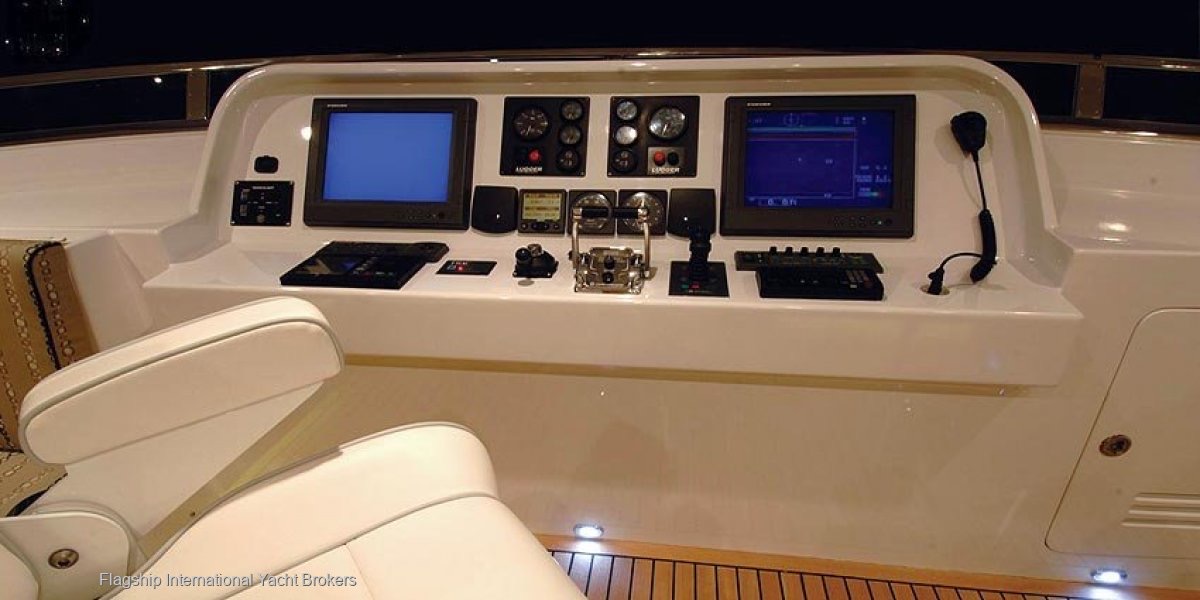

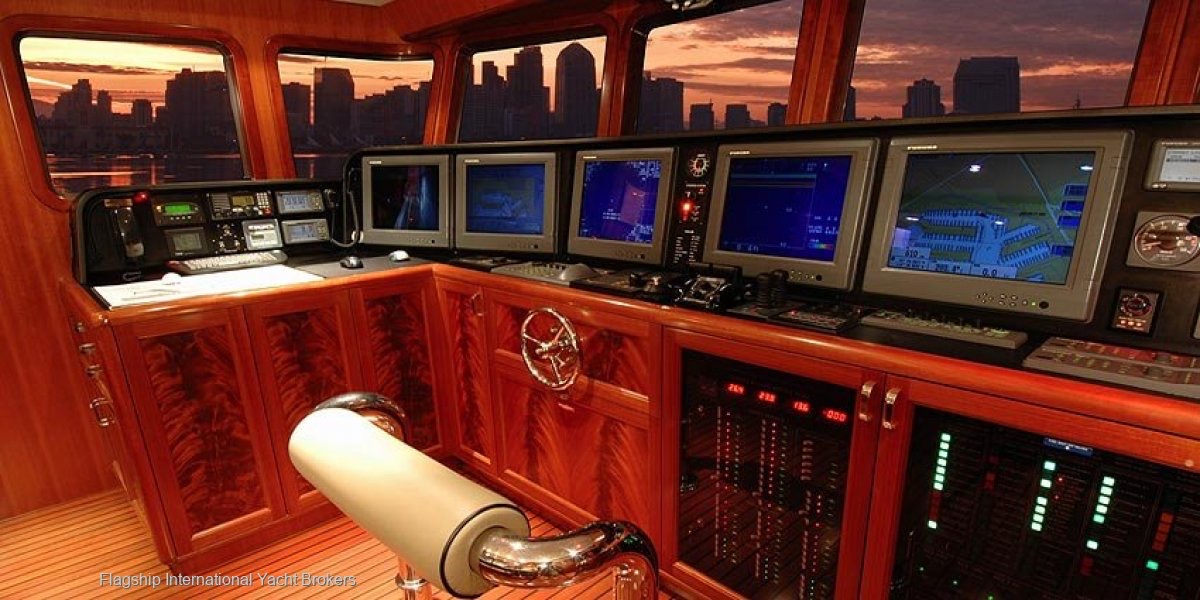

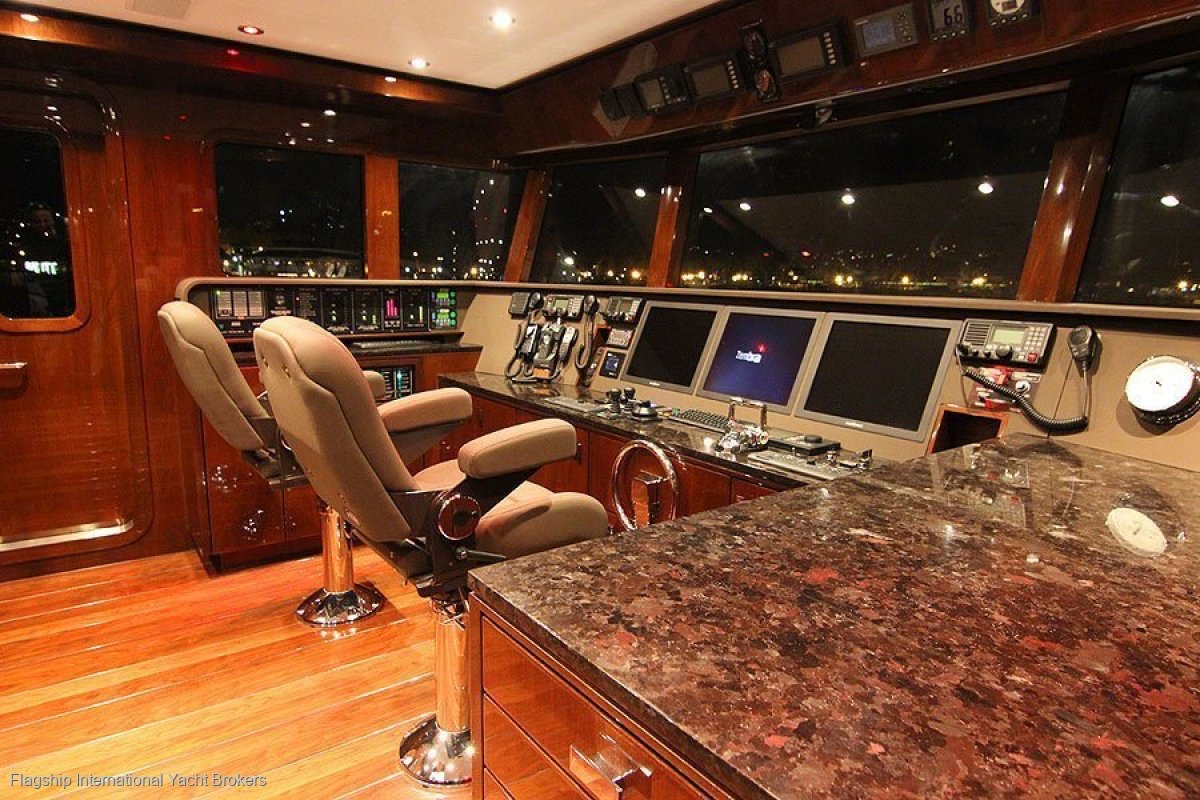

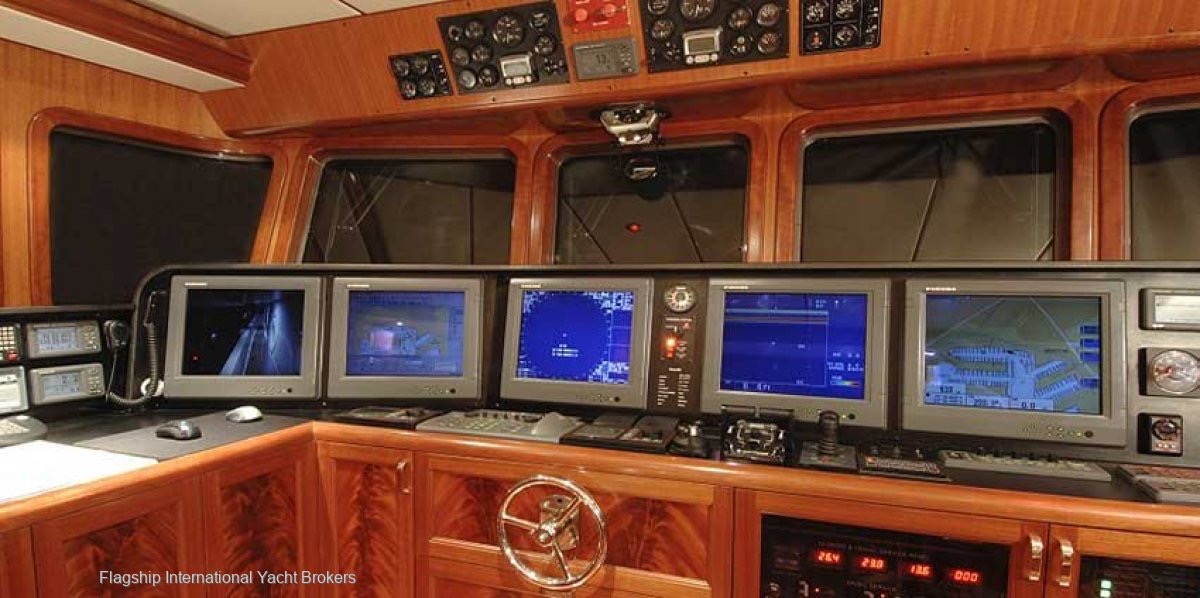

ElectronicsRaymarine navigation system, GPS, autopilot, radar, depth sounder, VHF radio
ElectricsUniversal AC electrical system, battery charger, inverter system
Nordhavn Australia
Enquire about Nordhavn 86
Contact Marley Cutbush about the Nordhavn 86, its build programme and Australian support.
