Nordhavn 80
A four-stateroom passagemaker designed to provide larger-yacht volume with limited crew requirements.
Current model
Overview
The 80 sits between the Nordhavn 76 and the 86 and 96, with four staterooms plus designated accommodation for up to two crew.

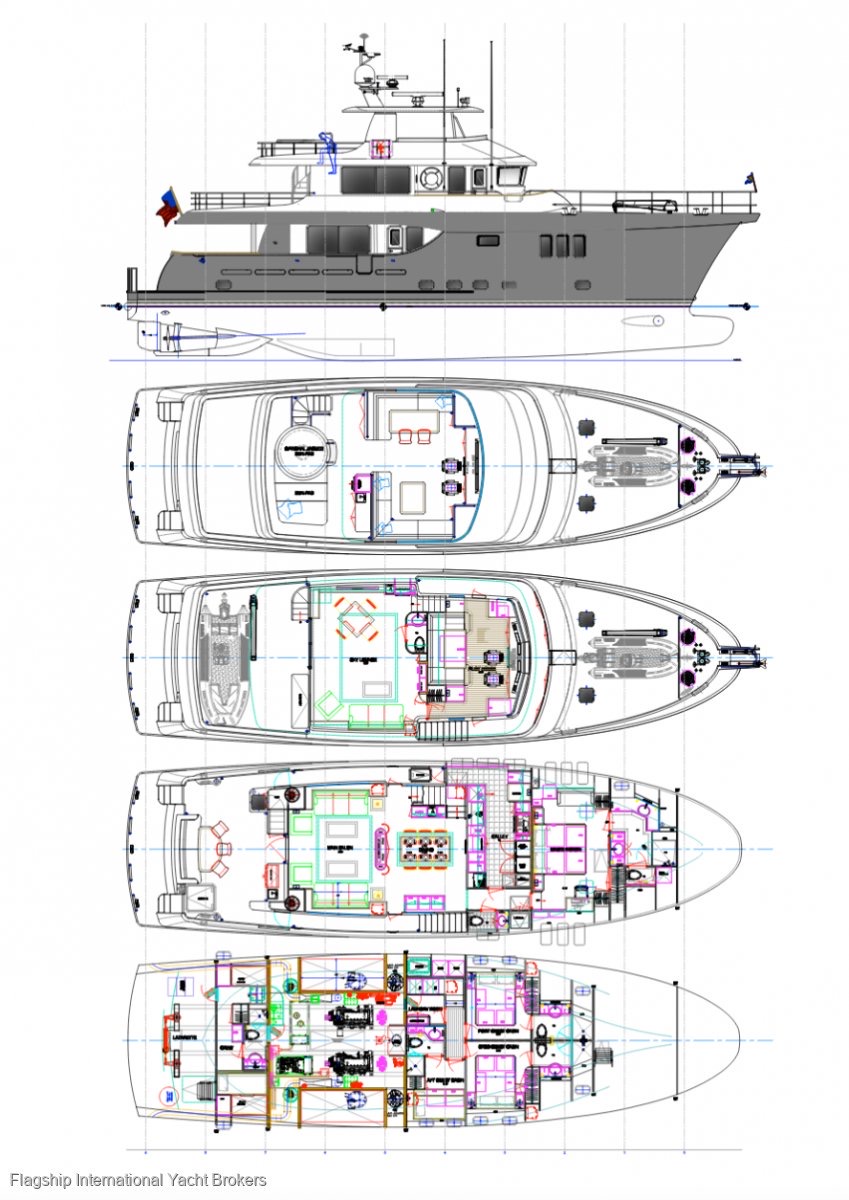

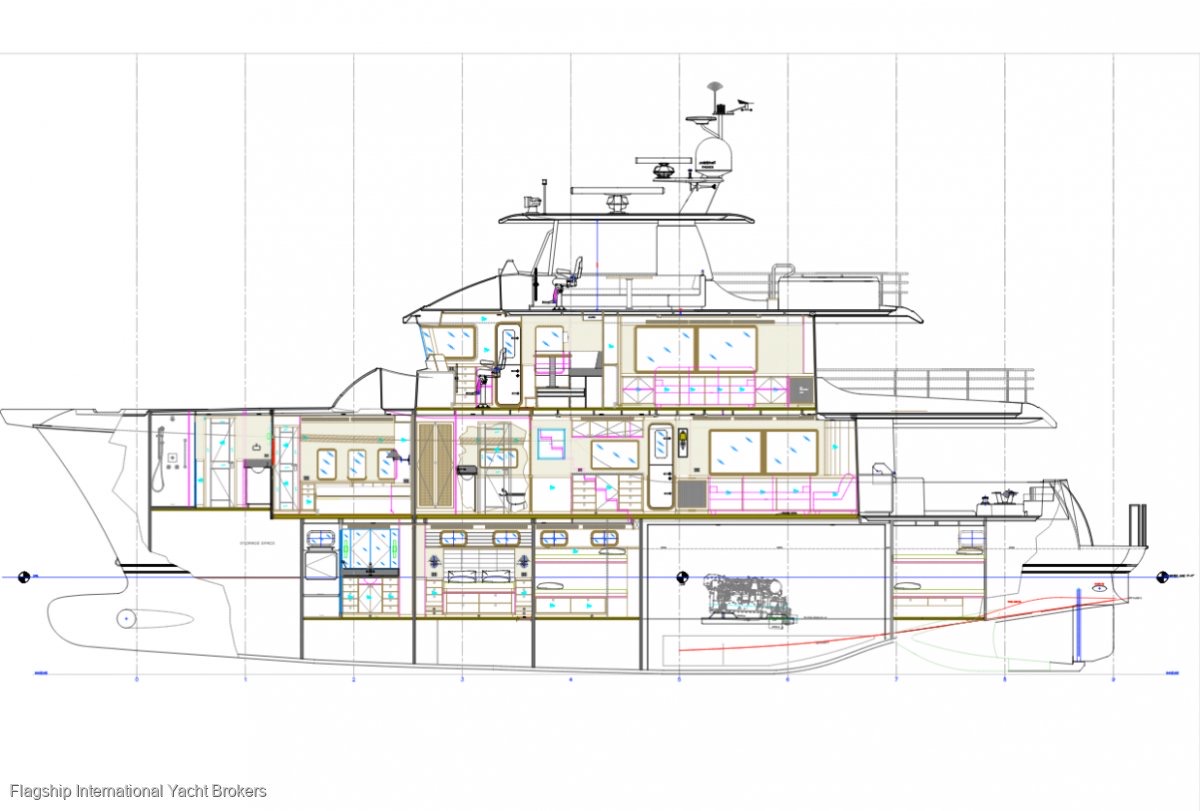

Twin 375 hp John Deere engines are specified. Layout choices include a captain cabin behind the bridge or an upper owner suite in place of the skylounge.
Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.
Nordhavn 80
Quick specifications
- Length overall
- 80' 8" / 24.58 M excluding bow plank; 82' 3 3/8" / 25.1 M including bow plank
- Waterline length
- 73' 1" / 22.27 M
- Beam
- 23' 4" / 7.11 M
- Draft
- 6' 9 1/2" / 2.02 M
- Displacement
- 280,358 lbs. / 127.44 MT
Nordhavn 80

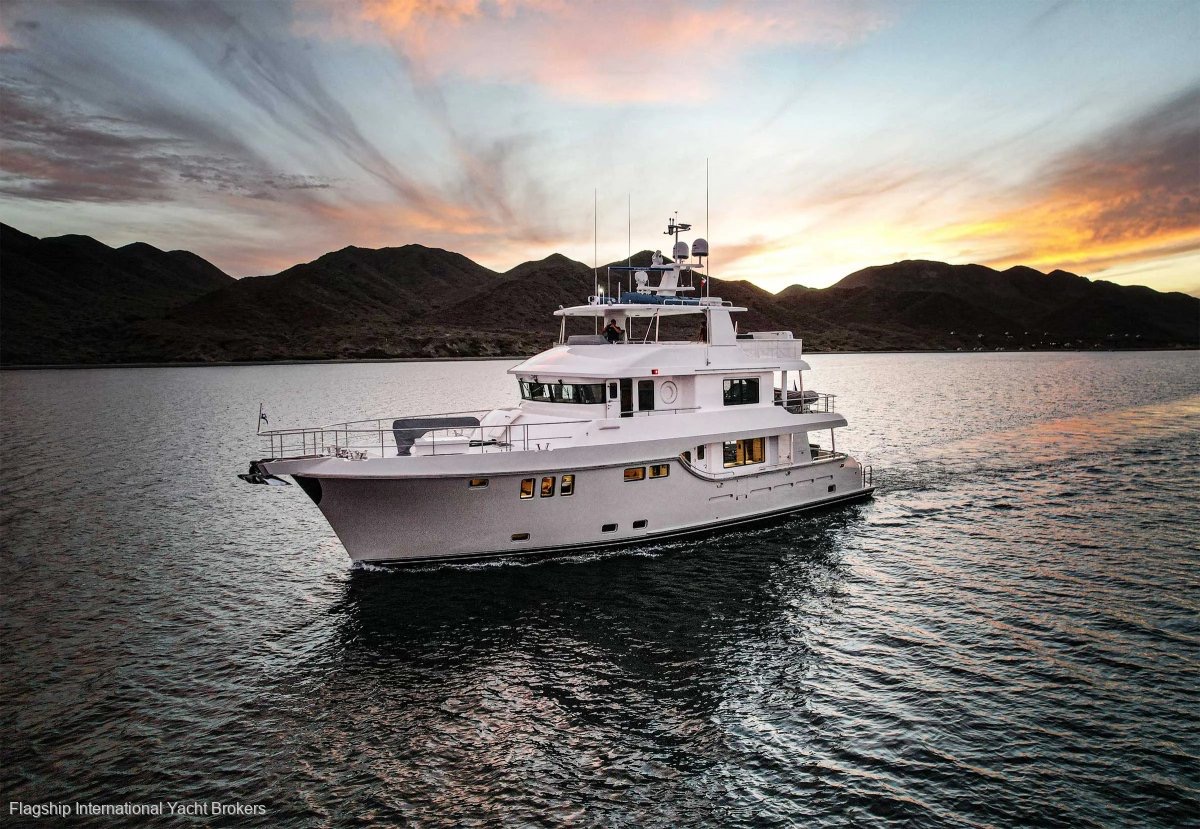

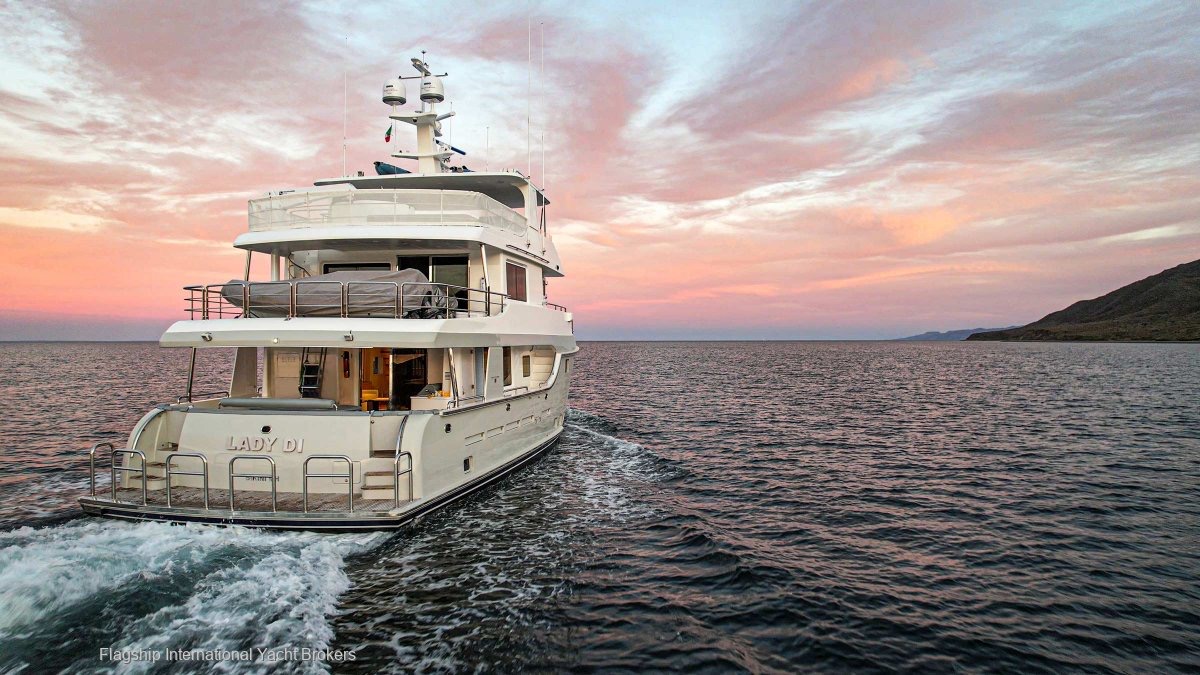

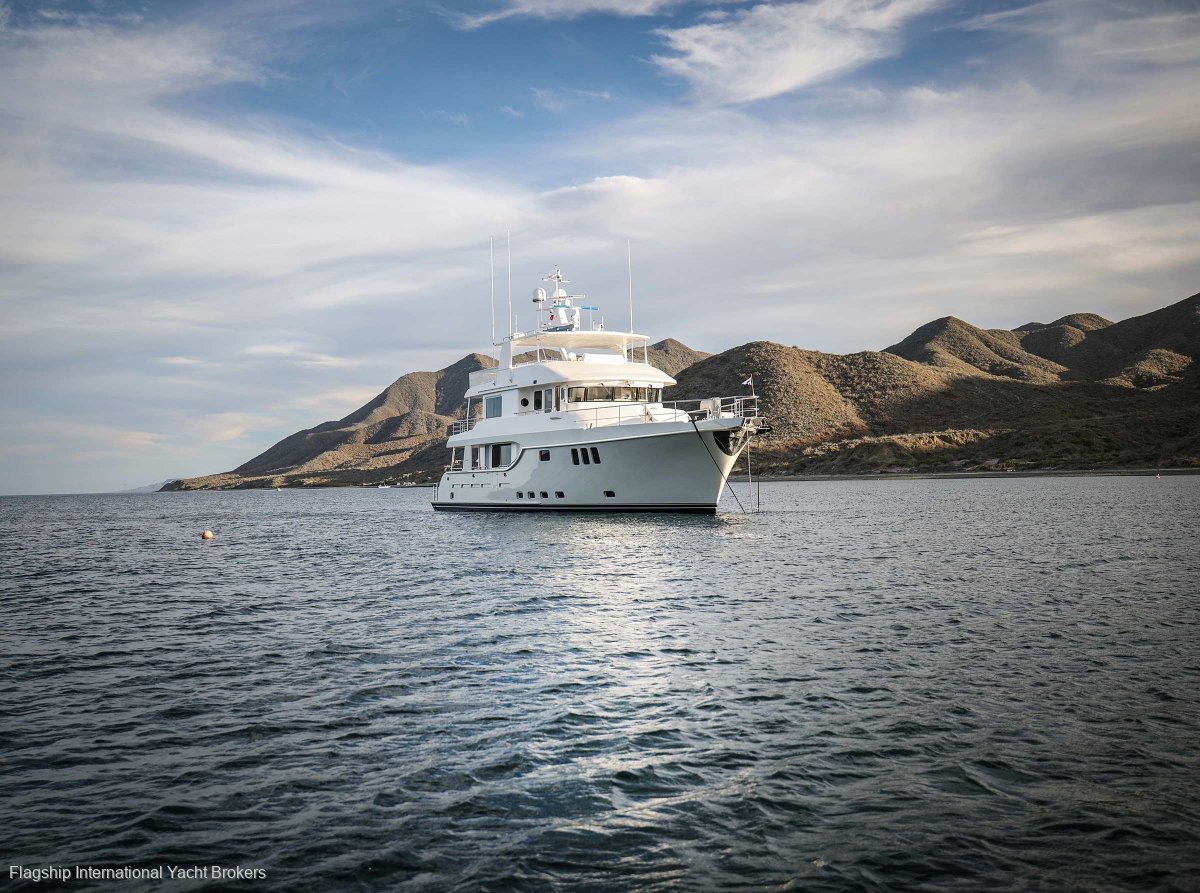

Photos
45 photos.
1 / 45Nordhavn 80
Specifications
Confirm equipment and final build configuration with Nordhavn Australia.
Dimensions and construction
ModelNordhavn 80
Length25.1 m
Beam23' 4" / 7.11m
Draft6' 9.5" / 2.02m
Displacement280,358 lbs / 127.44 MT
DesignerNordhavn Yachts
BuilderNordhavn Yachts
Hull materialFibreglass/GRP
Deck materialGRP with non-skid overlay
Propulsion and performance

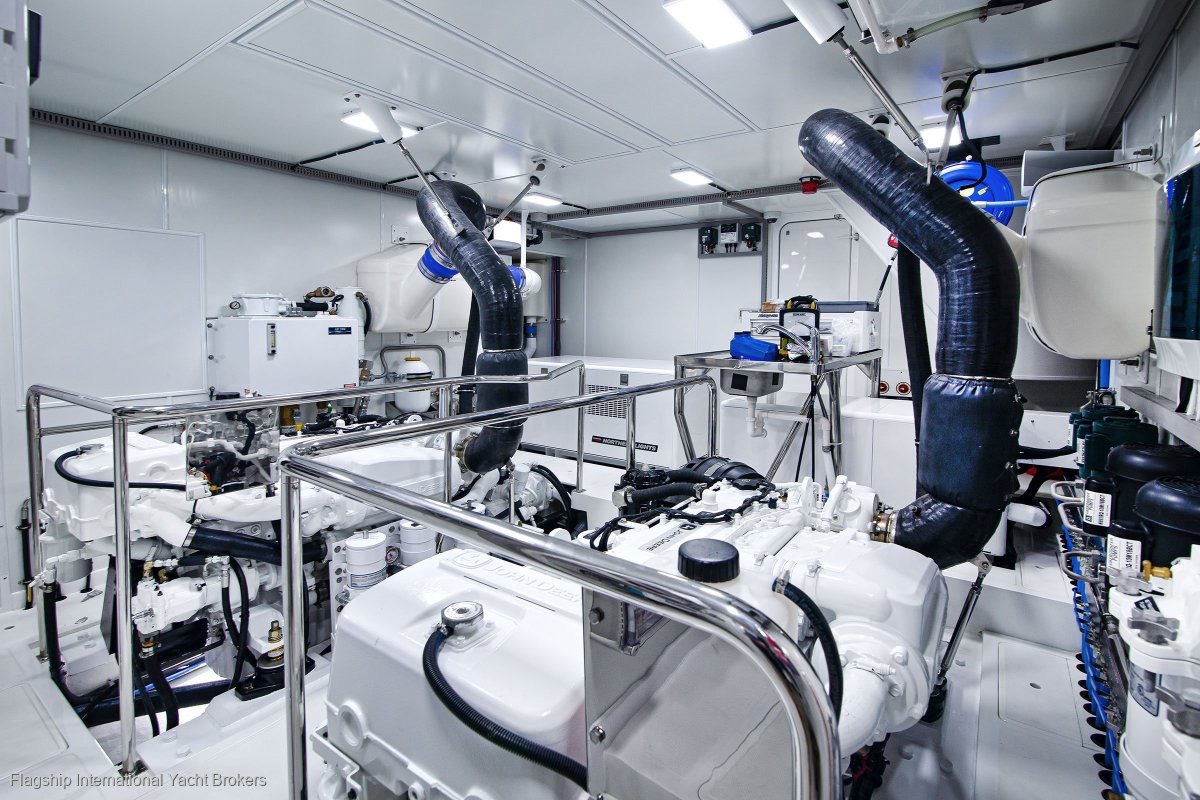

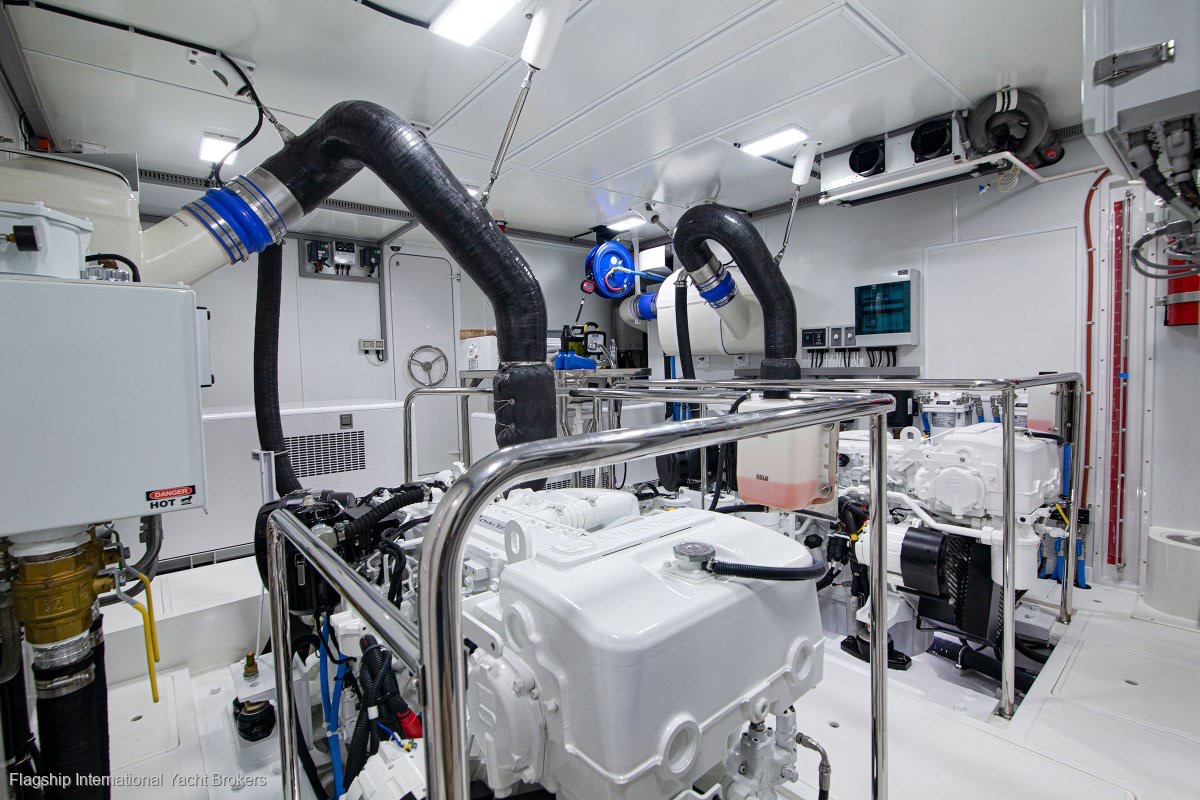

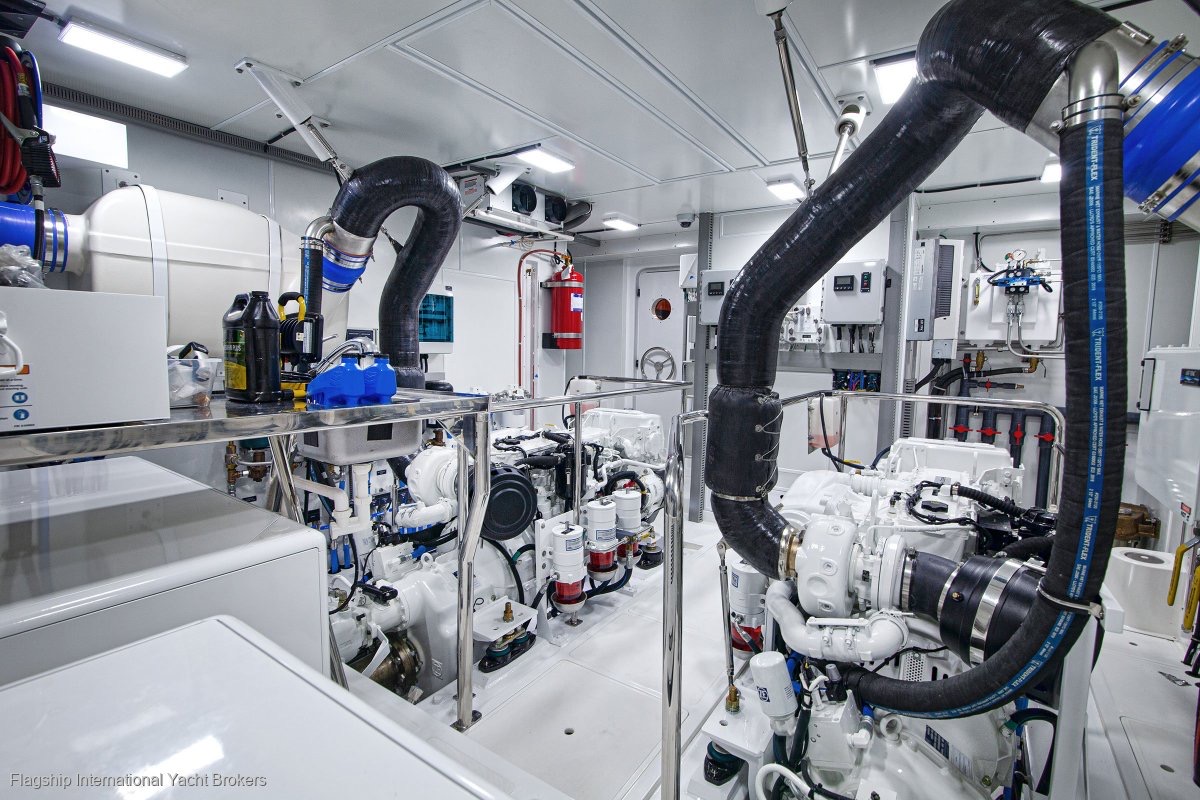

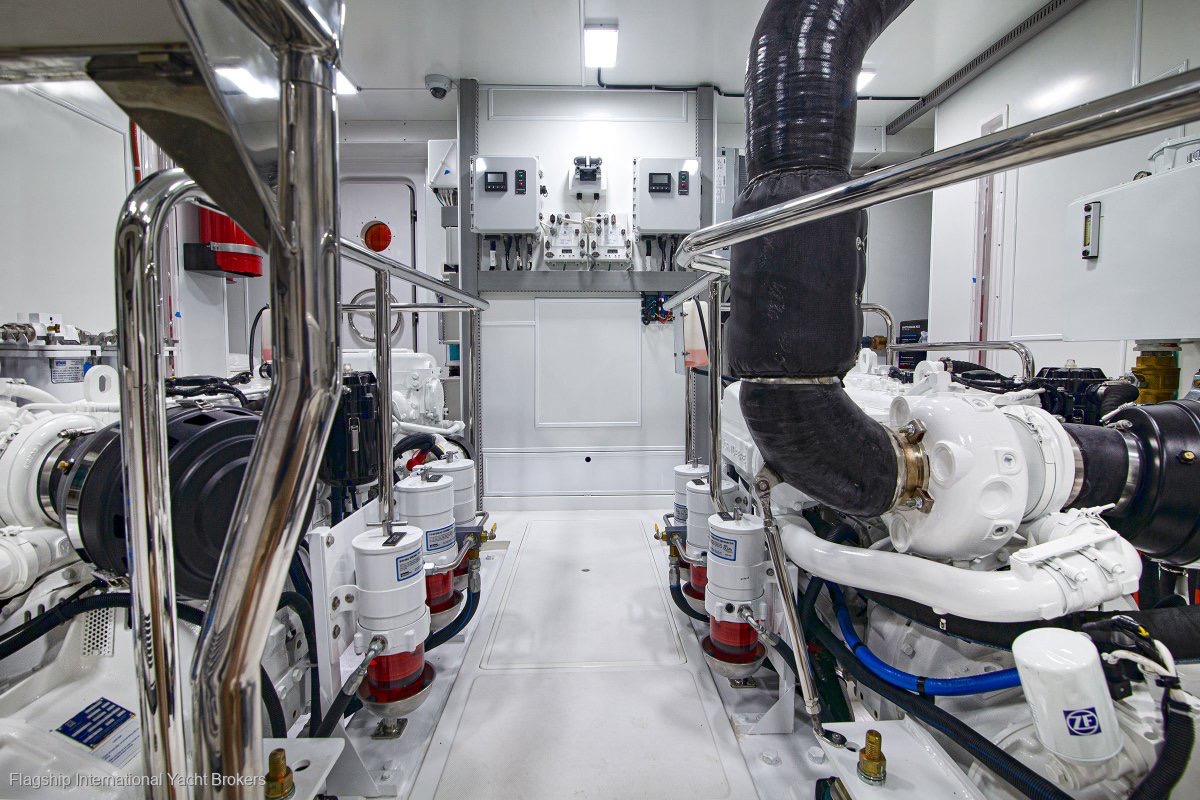

EngineJohn Deere 6090SFM85, twin engines, 375 hp at 2200 RPM, wet exhaust system
Engine makeJohn Deere
Power375 hp each
Number of engines2
FuelDiesel
PropulsionTwin-shaft direct drive with hydraulic bow and stern thrusters
ThrustersBow and Stern Thrusters: 50 hp bow and 38 hp stern thrusters, 16" and 12" tunnels
GeneratorNorthern Lights, 38kW and 25kW generators
Accommodation and domestic systems

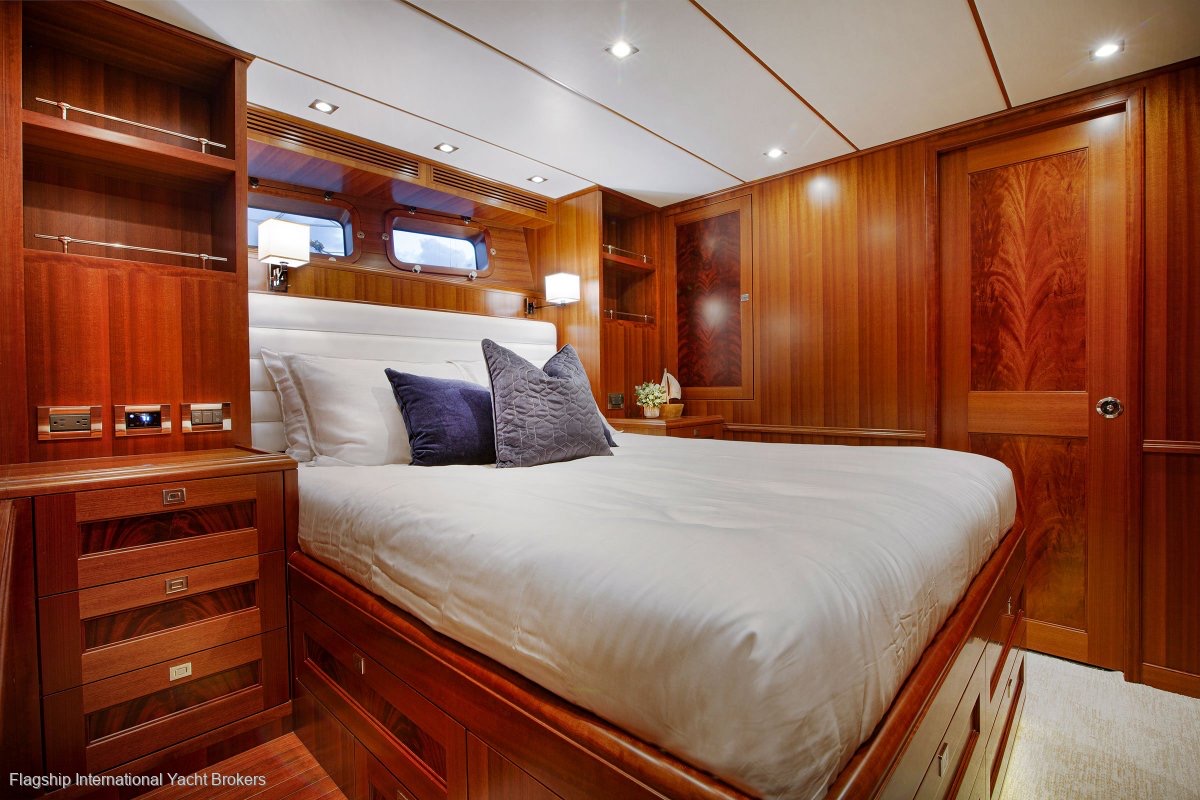

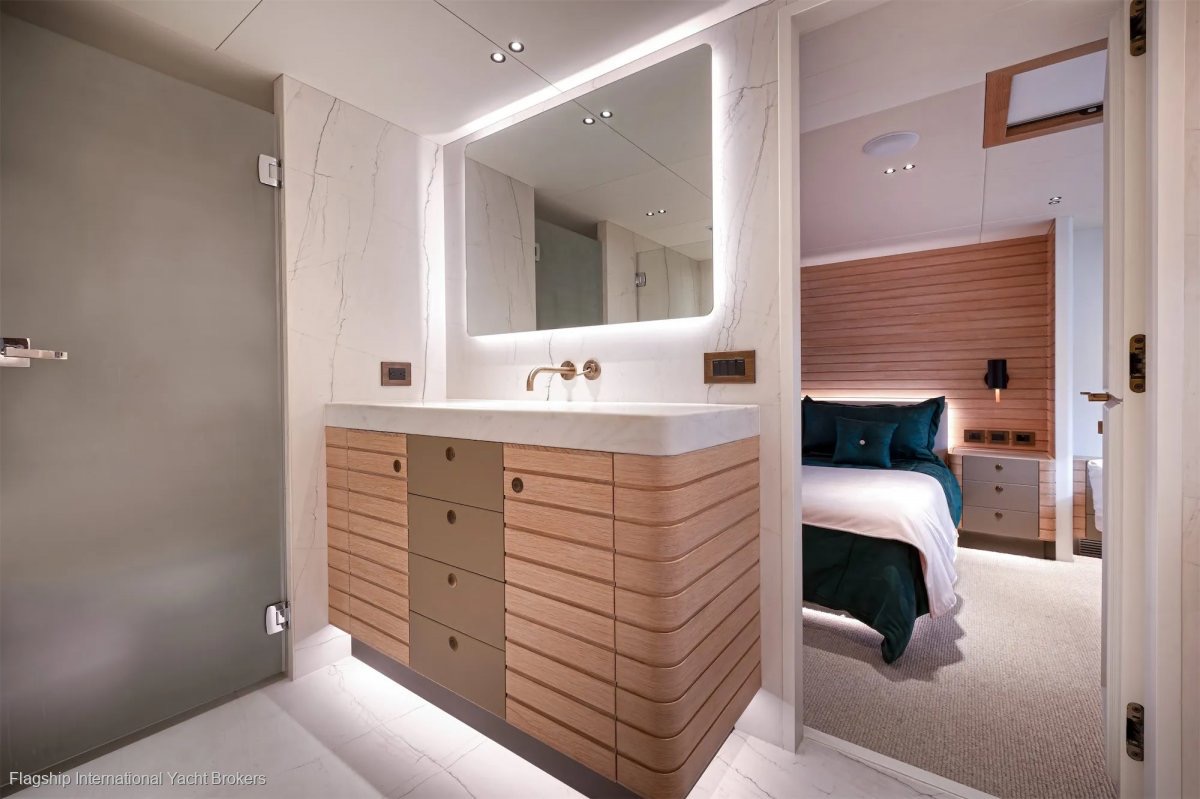

Cabins4 (plus crew quarters)

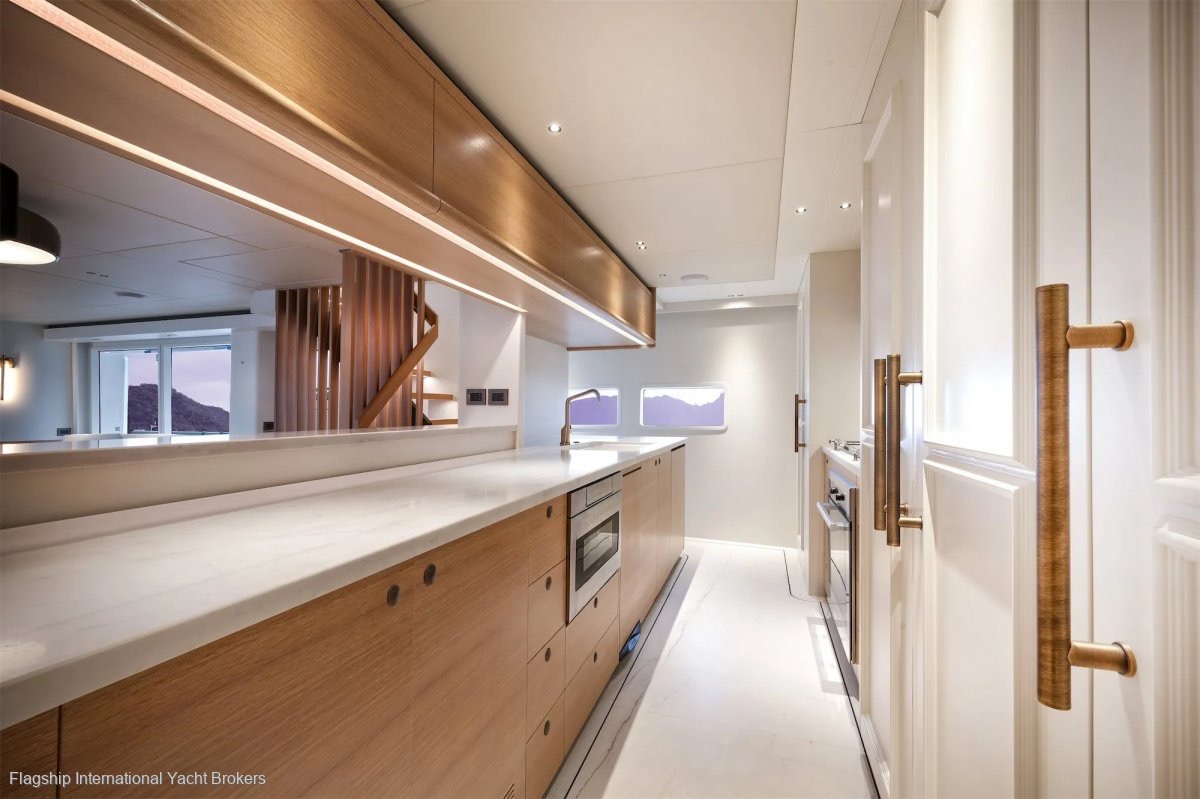

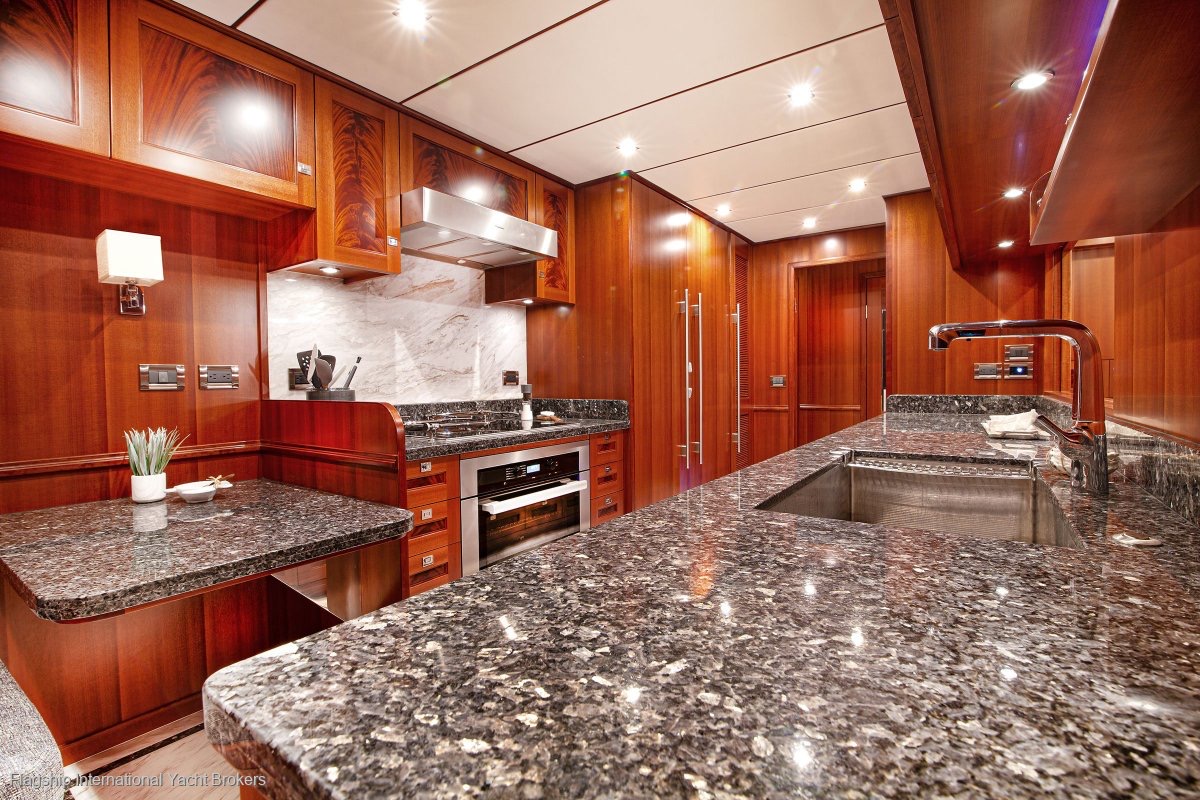

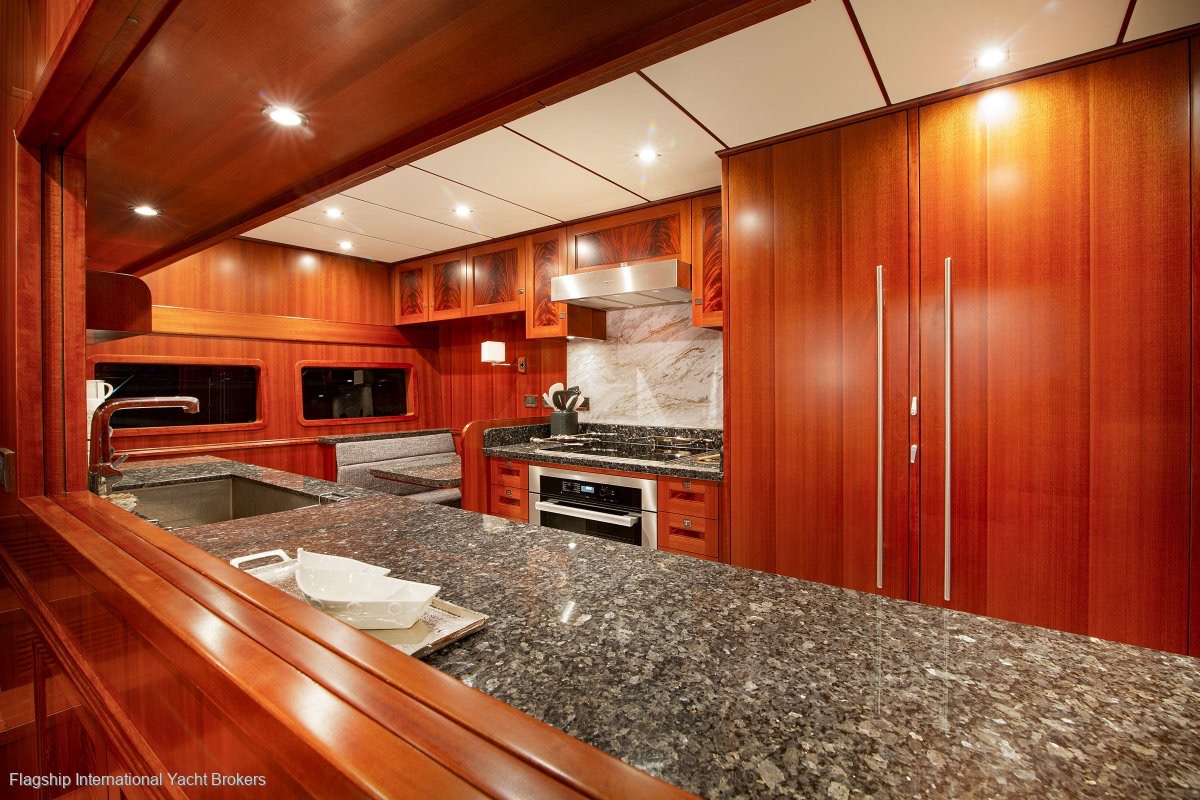

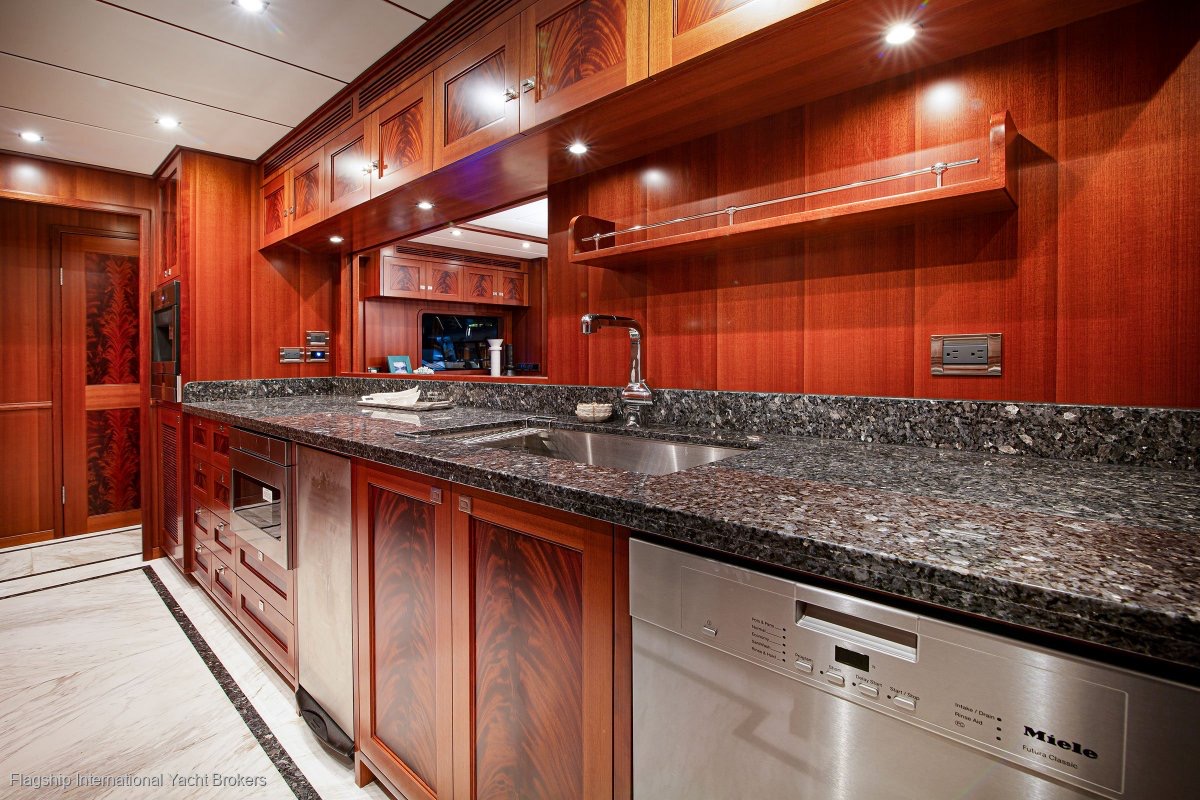

GalleyCustomised stone countertops and cherry cabinetry.
RefrigerationSub-Zero fridge/freezer
StoveMiele 4-burner induction cooktop
Air conditioningCruisair tempered water system (chilled water), 144,000 BTU
Tankage, deck and safety
Fuel capacity4,670 US gallons / 17,677 litres
Water capacity675 US gallons / 2,555 litres

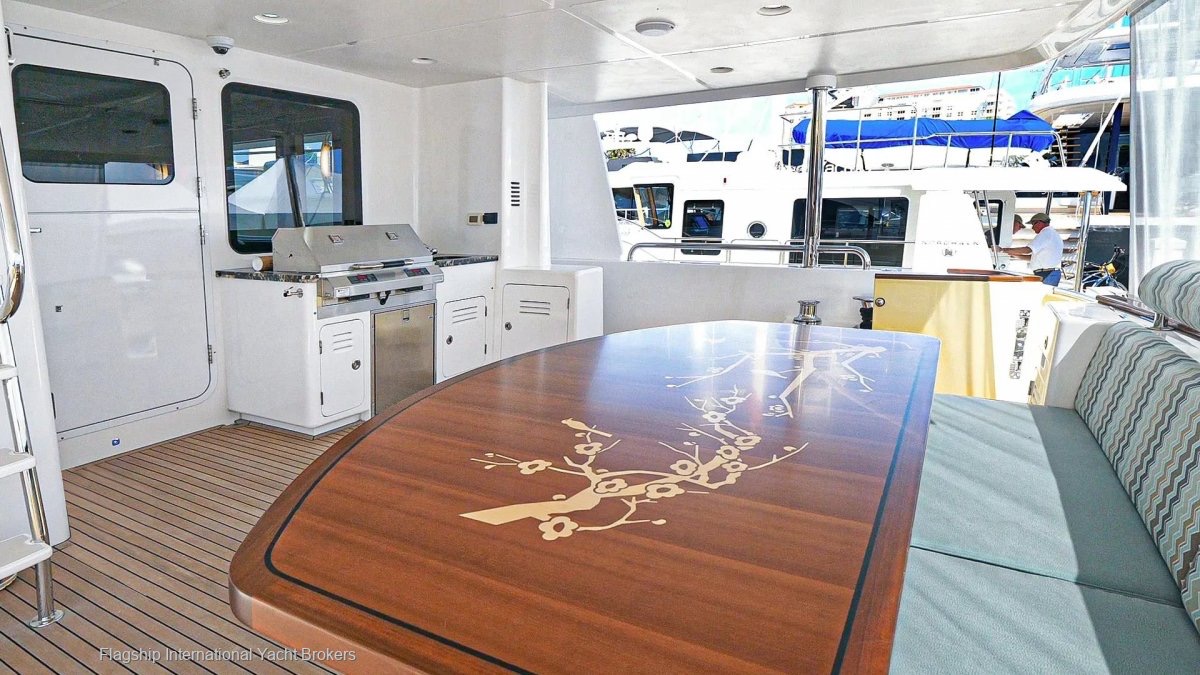

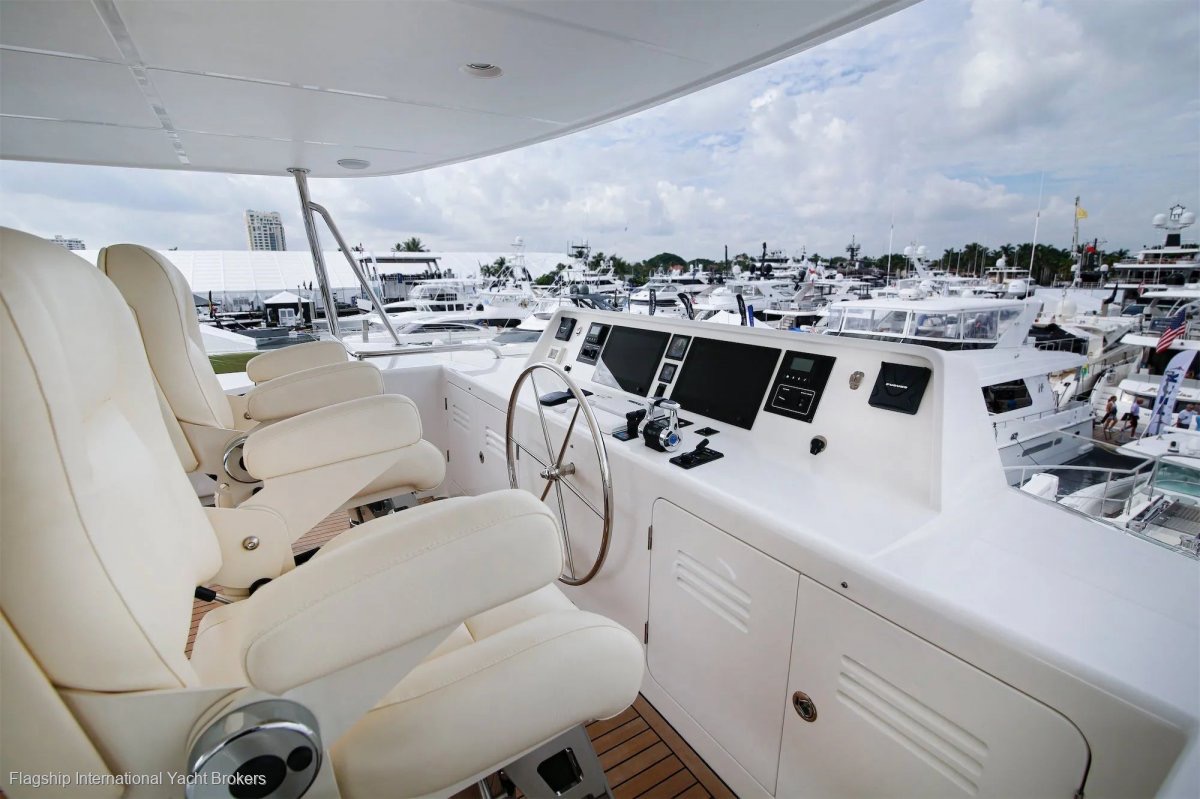

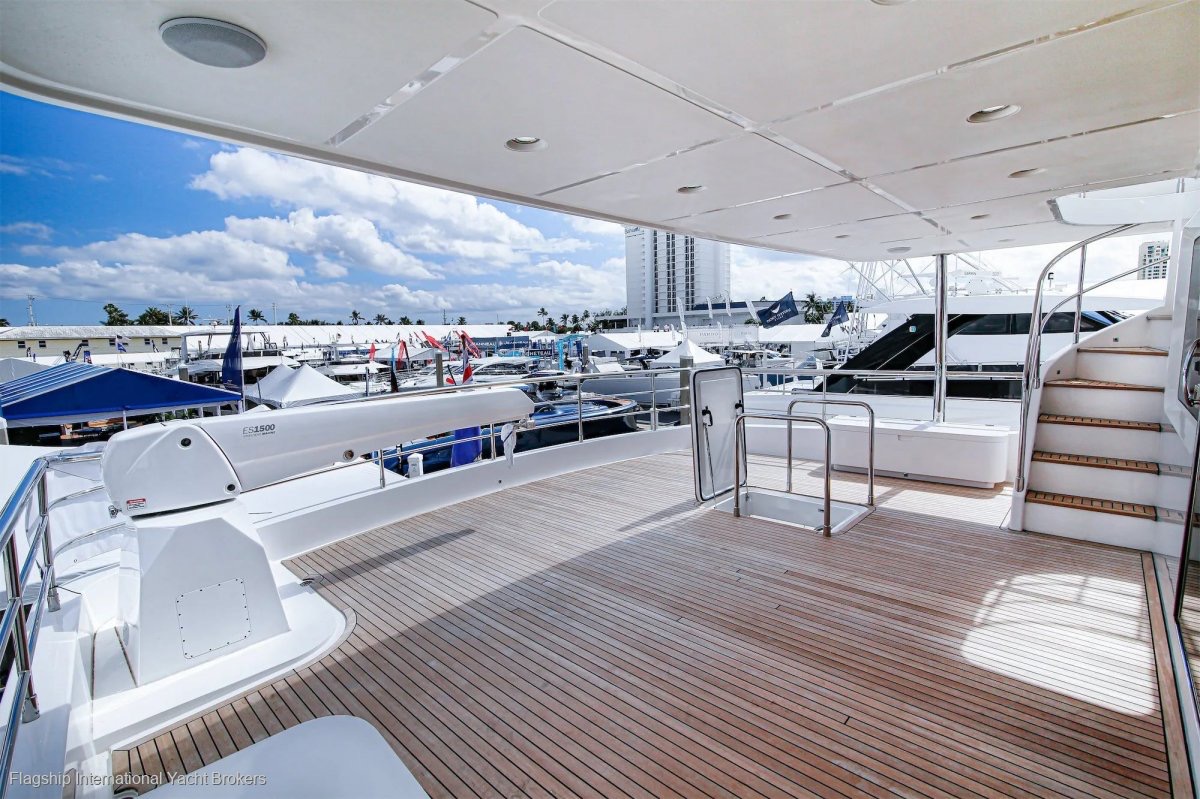

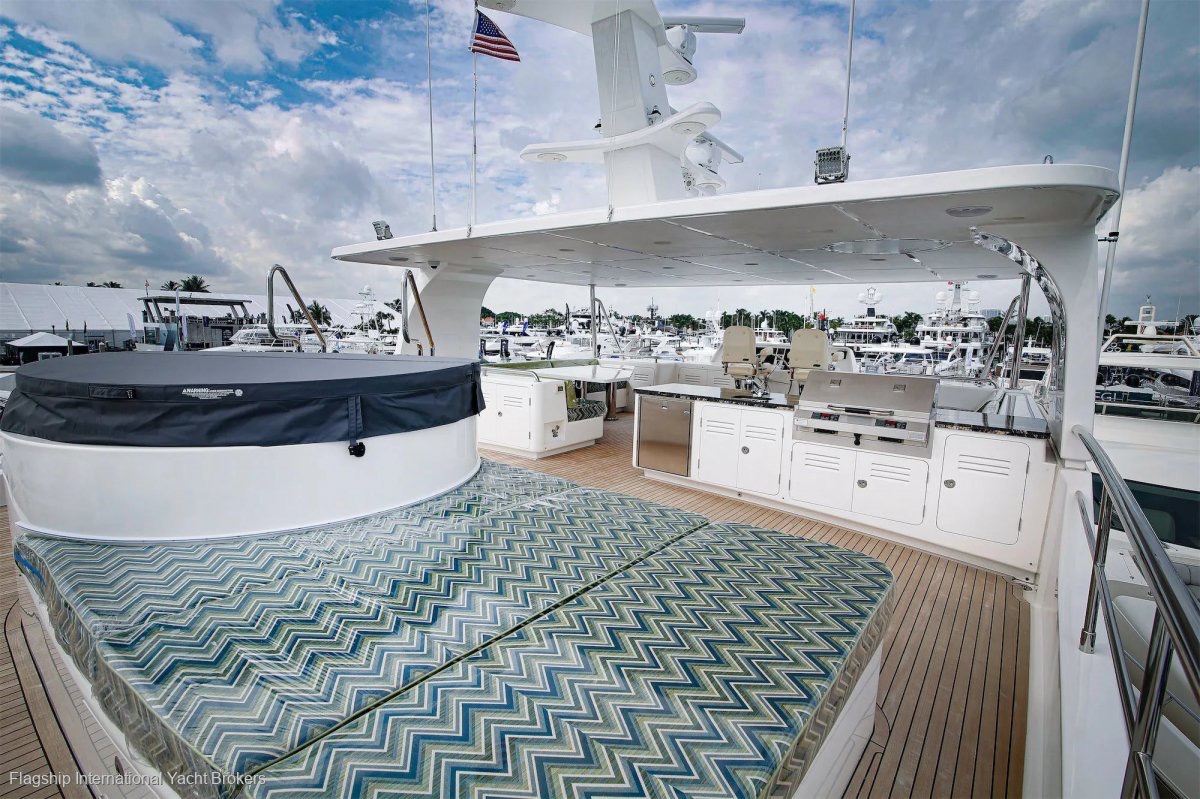

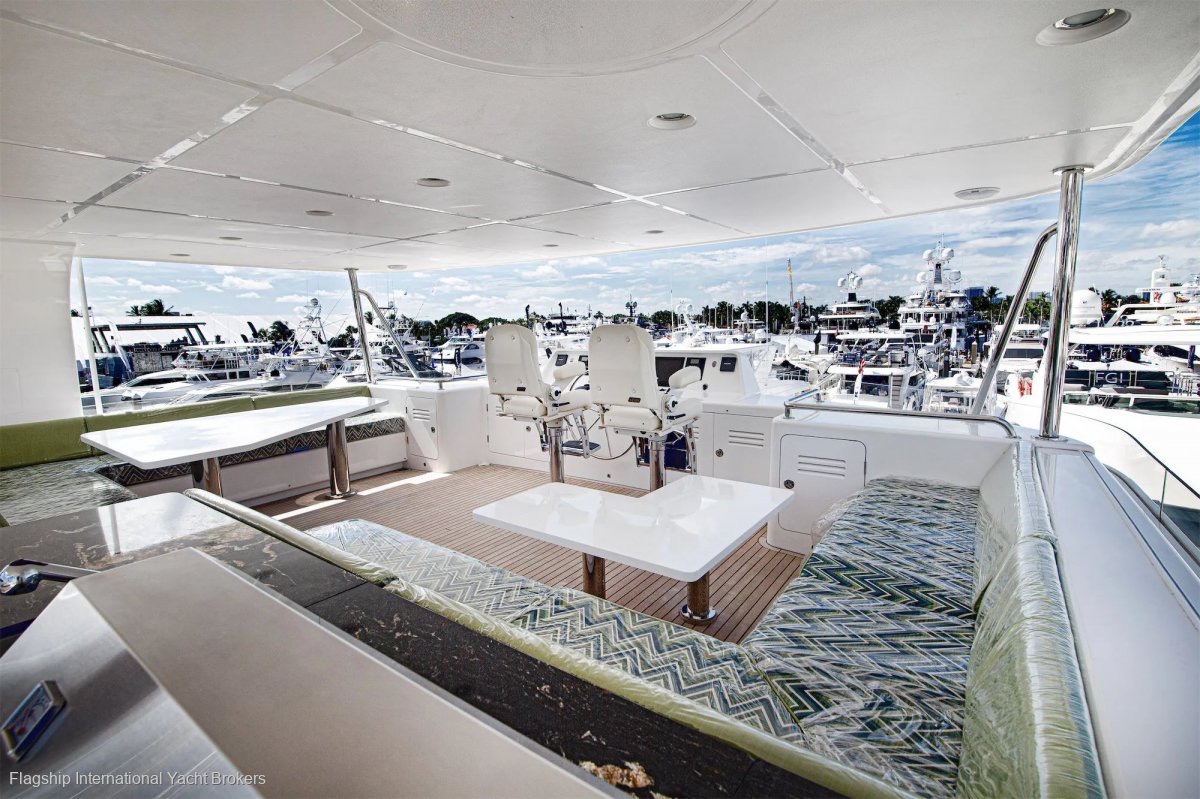

Deck GearHydraulic davits, Maxwell windlasses, stainless steel handrails, teak tables with cushioned seating, integrated flybridge
Safety gearEPIRB, life jackets, multiple bilge pumps
Bilge pumpsElectric and manual bilge pumps in each watertight compartment

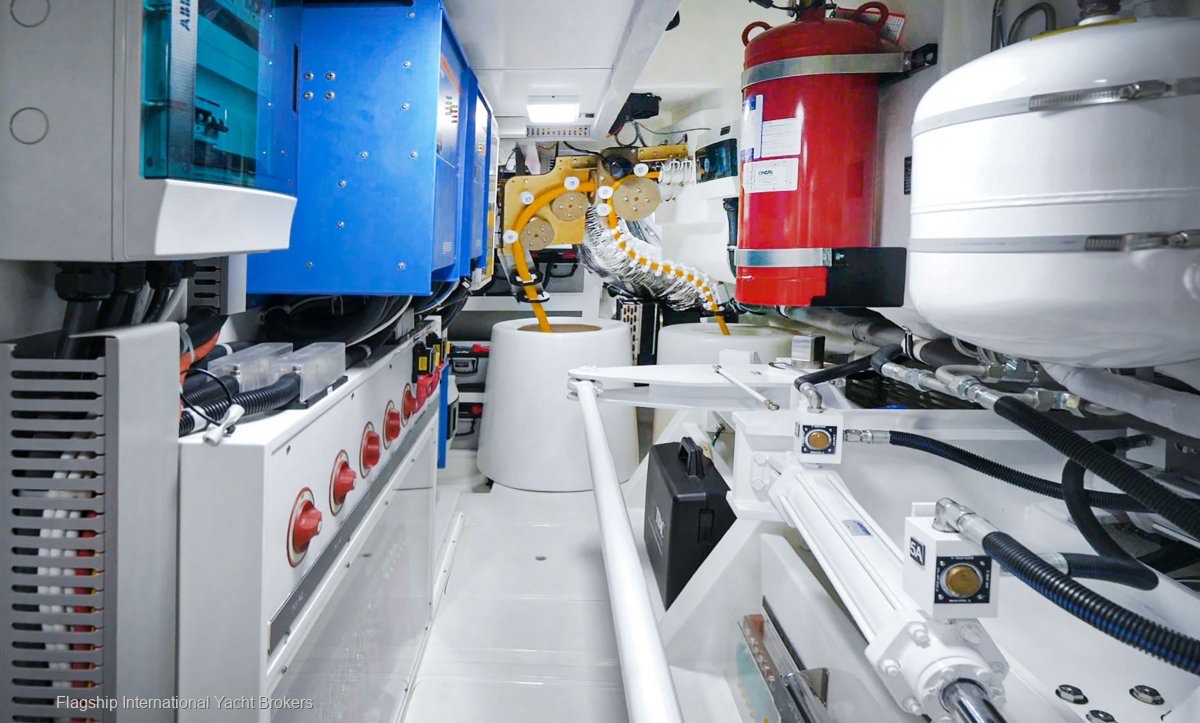

Fire protectionSeafire automatic fire suppression system in engine room and lazarette
Navigation and electrical

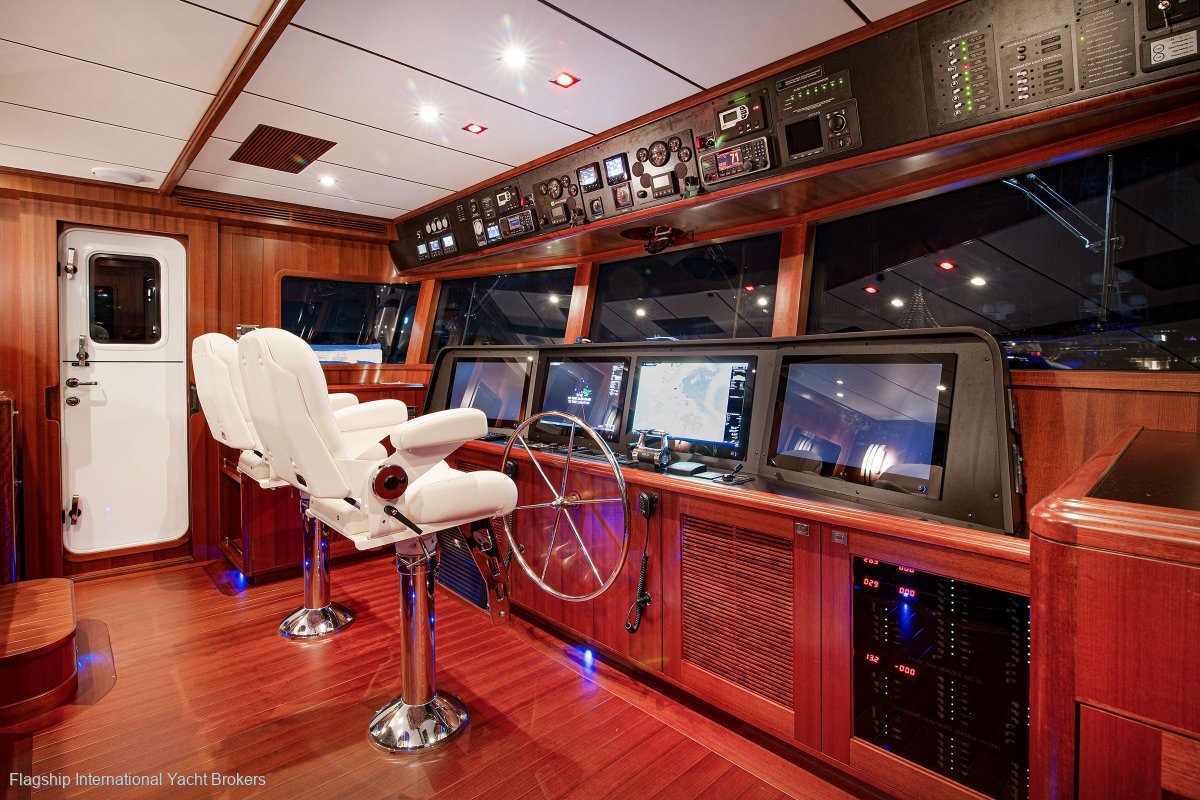

ElectronicsRaymarine or equivalent integrated systems
Electrics24V DC system with 12x AGM batteries, 1500 Ah at 24V, Victron inverter/chargers, shore power systems
