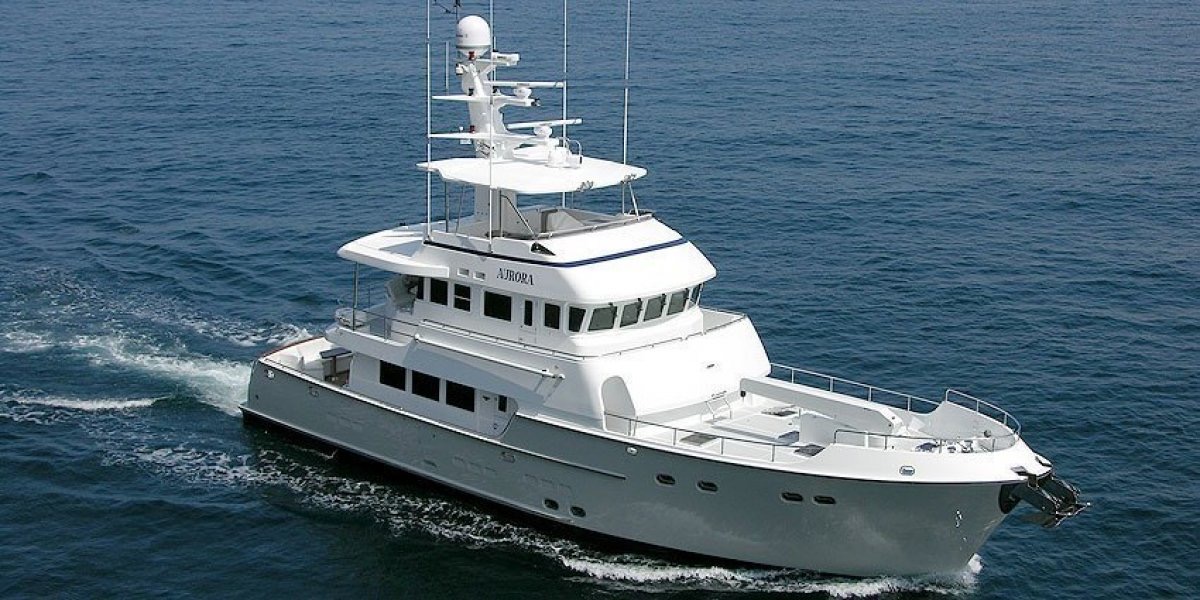

Nordhavn 76

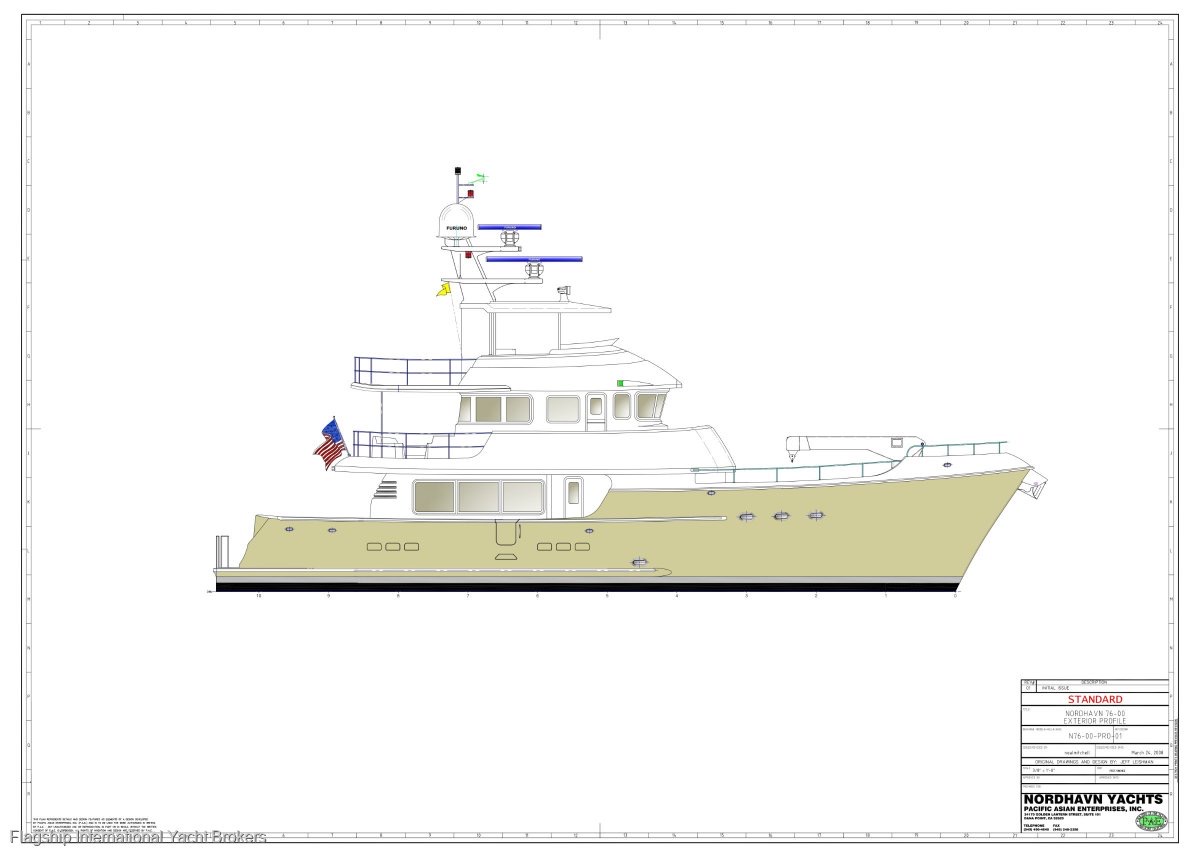

An aft-pilothouse design based on the Nordhavn 72 hull, with tender stowage and crane operations on the foredeck.
Current model
Overview

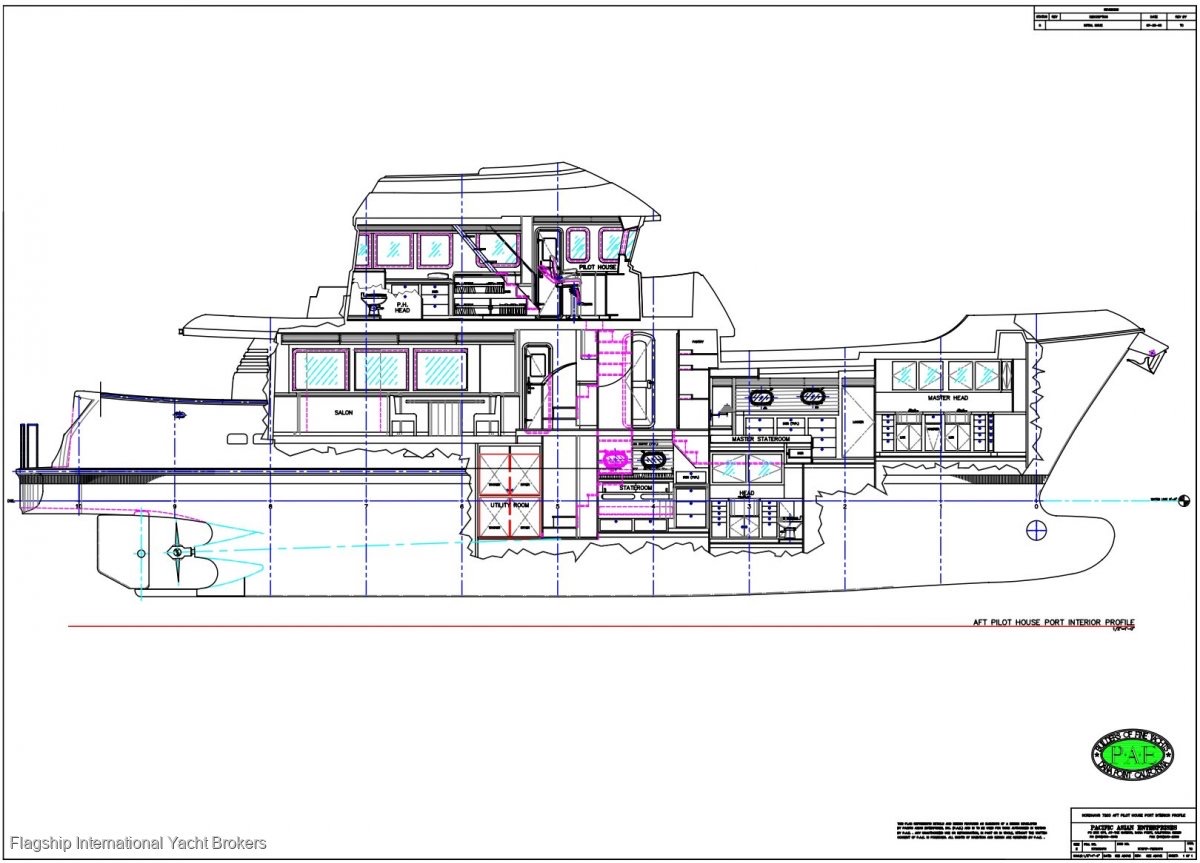

The 76 develops the Nordhavn 72 platform around an aft pilothouse, leaving the foredeck available for tenders and port or starboard crane launching.
The published dimensions are 23.24 metres overall, with a 6.40 metre beam and 2.34 metre draft.
Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.
Nordhavn 76
Quick specifications
- Length overall
- 76' 3" / 23.24 M
- Waterline length
- 69' 0" / 21.03 M
- Beam
- 21' 0" / 6.4 M
- Draft
- 7' 8" / 2.34 M
- Displacement
- 252,000 lbs. / 114.3 MT
Nordhavn 76
Photos
15 photos.
1 / 15Nordhavn 76
Specifications
Confirm equipment and final build configuration with Nordhavn Australia.
Dimensions and construction
ModelNordhavn 76
Length23.24 m
Beam21' 0" / 6.4m
Draft7' 8" / 2.34m
Displacement252,000 lbs / 114.3 MT
DesignerNordhavn Yachts
BuilderNordhavn Yachts
Hull materialFibreglass/GRP
Deck materialGRP with teak overlay
Propulsion and performance

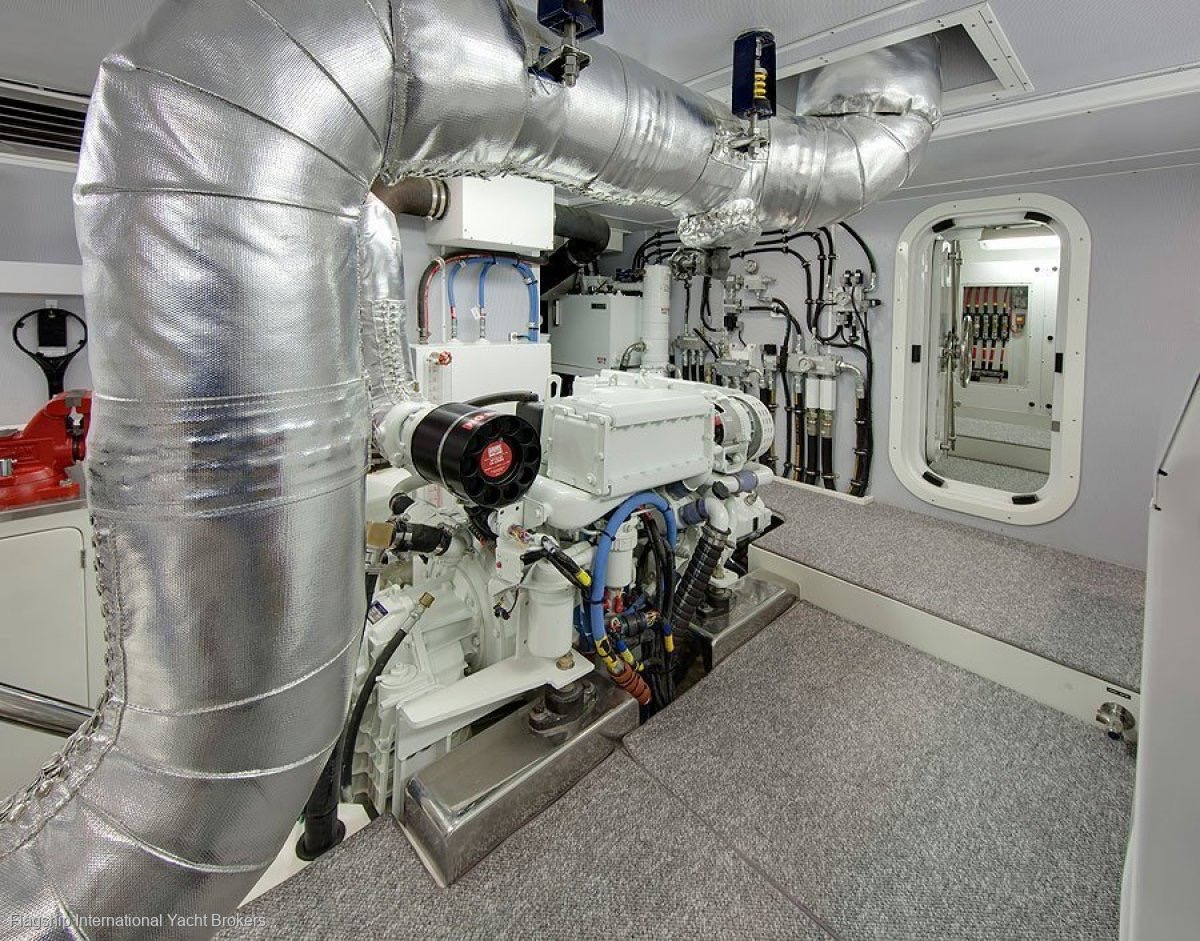

EngineJohn Deere 500 hp Main, Available in twin-engine configuration.
Engine makeJohn Deere
Power500 hp
Number of engines1
FuelDiesel
PropulsionSingle-shaft direct drive
ThrustersHydraulic bow and stern thrusters
Cruising speed8 knots

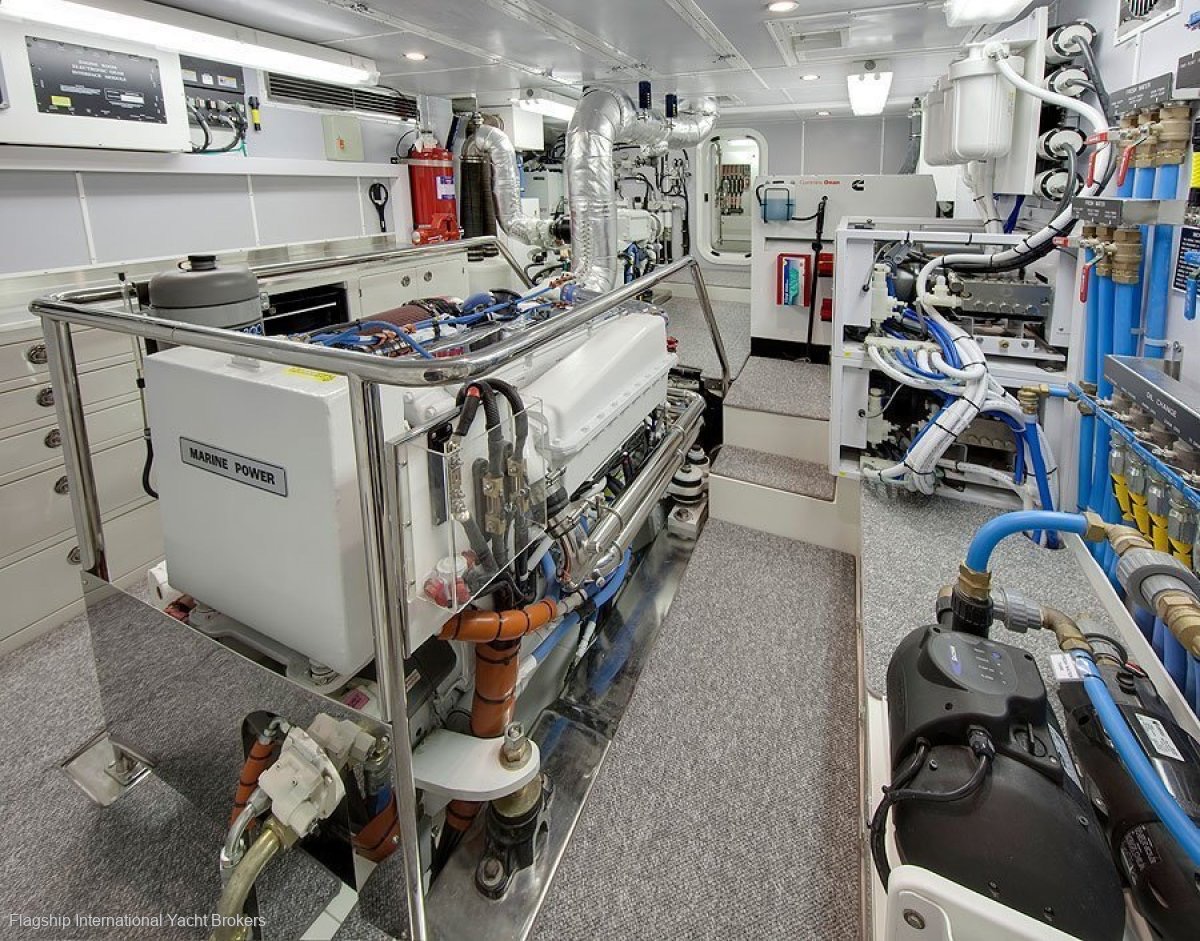

Generator1 x Onan 40kW, 1 x Onan 27.5kW
Accommodation and domestic systems
Cabins3
Berths6

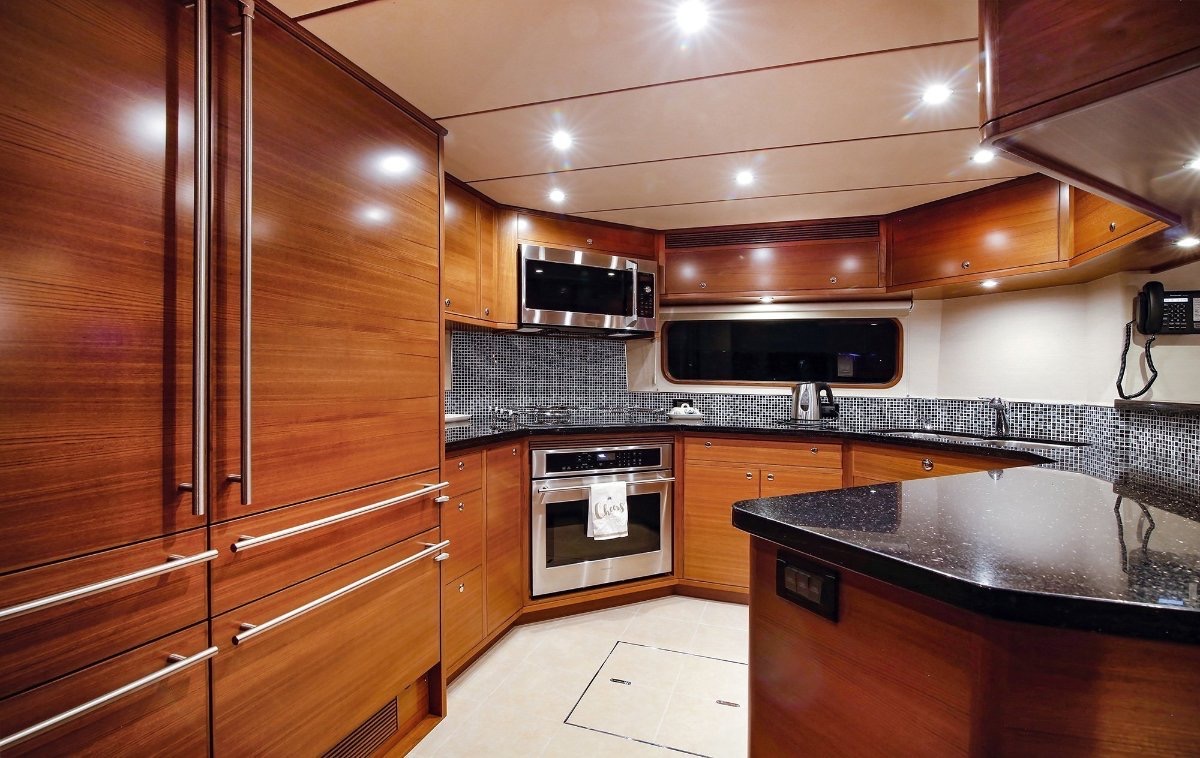

RefrigerationSub-Zero side-by-side fridge/freezer
FreezerU-Line cockpit freezer
StoveThermador LPG stove with electric oven
Air conditioningChilled water system
Tankage, deck and safety
Fuel capacity4,070 US gallons / 15,407 litres
Water capacity600 US gallons / 2,271 litres
Deck GearStainless handrails, swim platform, hydraulic davit, Maxwell windlass
Safety gearEPIRB, life jackets, bilge pumps
Bilge pumpsMultiple bilge pumps with emergency hydraulic system
Fire protectionSeafire automatic system in engine room and lazarette
Navigation and electrical
ElectronicsRaymarine integrated navigation systems, depth sounder, chart plotter
Electrics24V DC system with shore power, Victron charger, inverters
