Nordhavn 75EYF

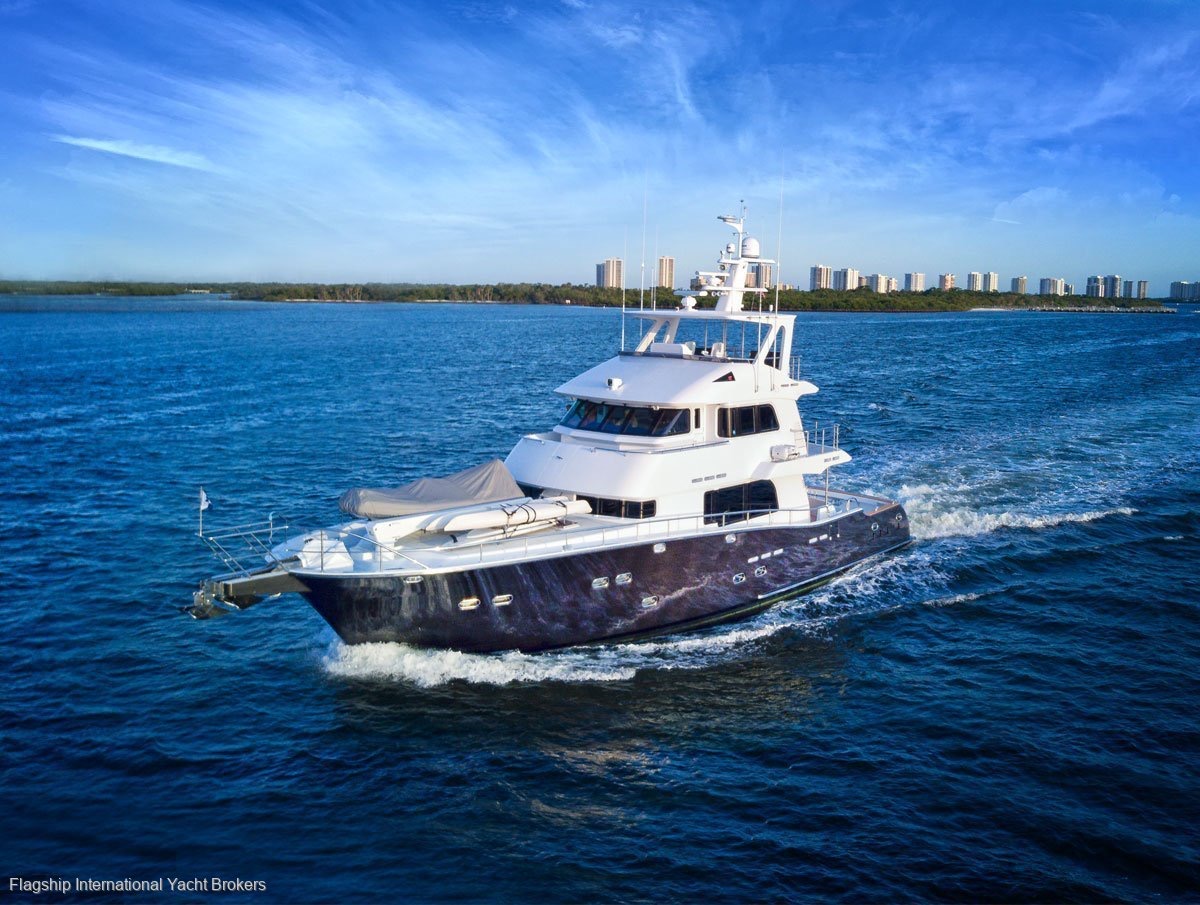

A full-displacement expedition yachtfisher with twin engines and a cockpit equipped for extended offshore fishing.

Current model

Overview

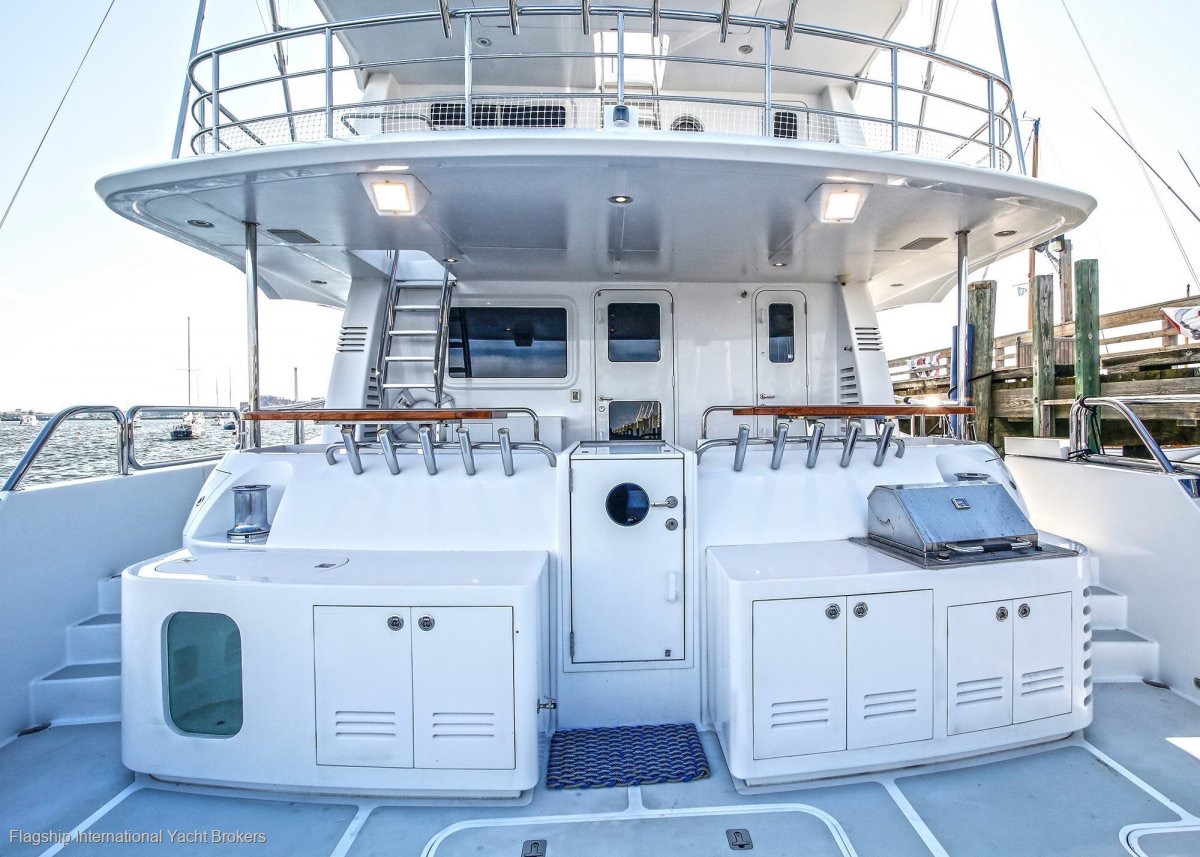

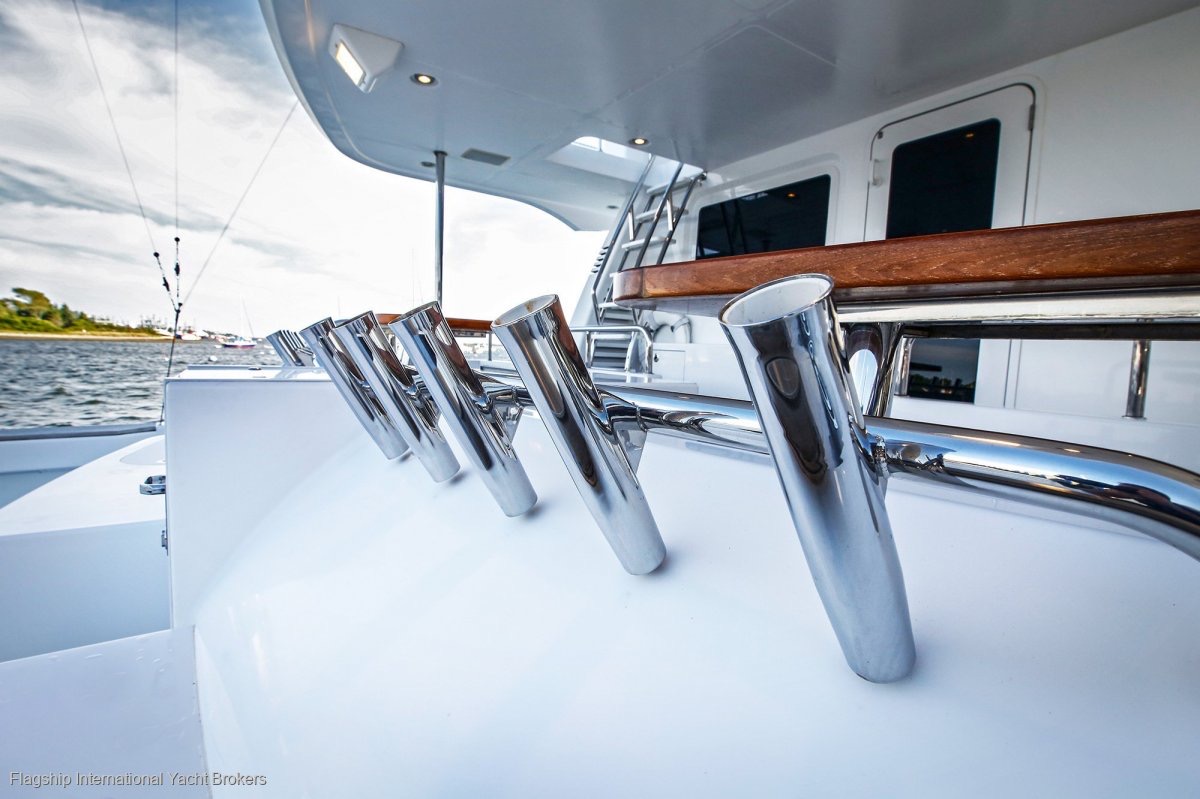

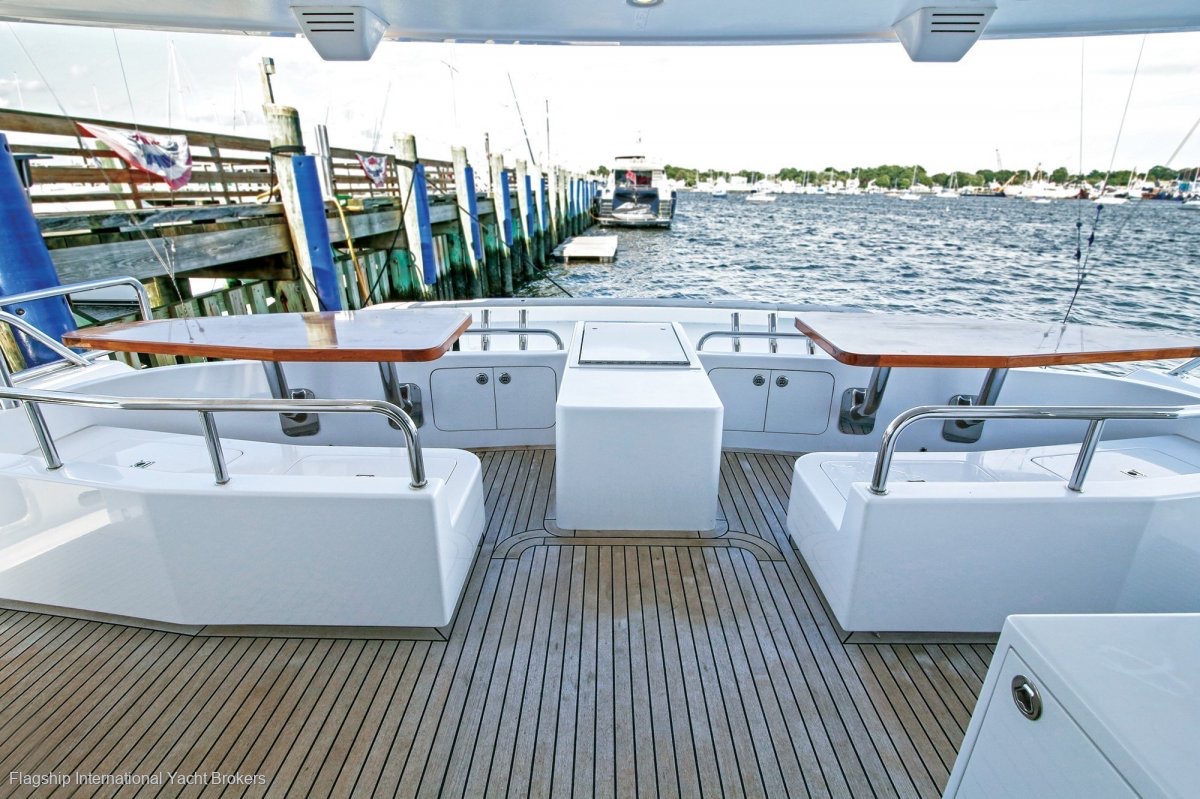

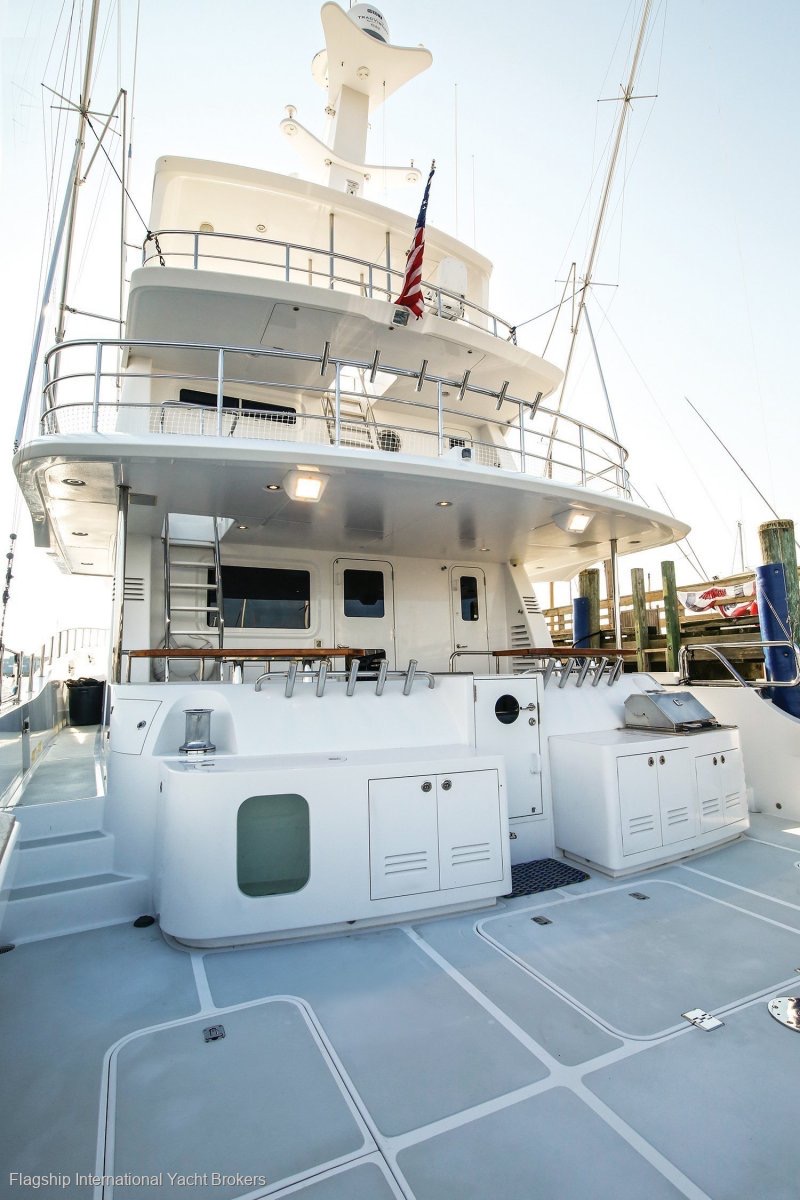

The 75EYF combines a Nordhavn full-displacement platform with a large fishing cockpit, dual bait wells, freezer capacity and dedicated tackle storage.

Its 22-foot 4-inch beam accommodates twin engines, while the standard stabiliser system and displacement hull retain the low-speed offshore brief.

Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.

Nordhavn 75EYF

Quick specifications

Length overall
74' 5" / 22.68 M
Waterline length
66' 8" / 20.32 M
Beam
22' 4" / 6.81 M
Draft
6' 11" empty; 7' 2" half load; 7' 6" full load
Displacement
260,000 lbs. empty; 280,000 lbs. half load; 303,000 lbs. full load

Nordhavn 75EYF

Photos

39 photos.

Nordhavn 75EYF, image 11 / 39

1 / 39

Nordhavn 75EYF, image 1

Nordhavn 75EYF

Specifications

Confirm equipment and final build configuration with Nordhavn Australia.

Dimensions and construction
ModelNordhavn 75EYF
Length22.68 m
Beam22' 4" / 6.81 m
Draft6' 11" (empty load) 7' 2" (half load) 7' 6" (full load)
Displacement260,000 lbs. (empty load) 280,000 lbs. (half load)
Hull materialFibreglass/GRP
Propulsion and performance

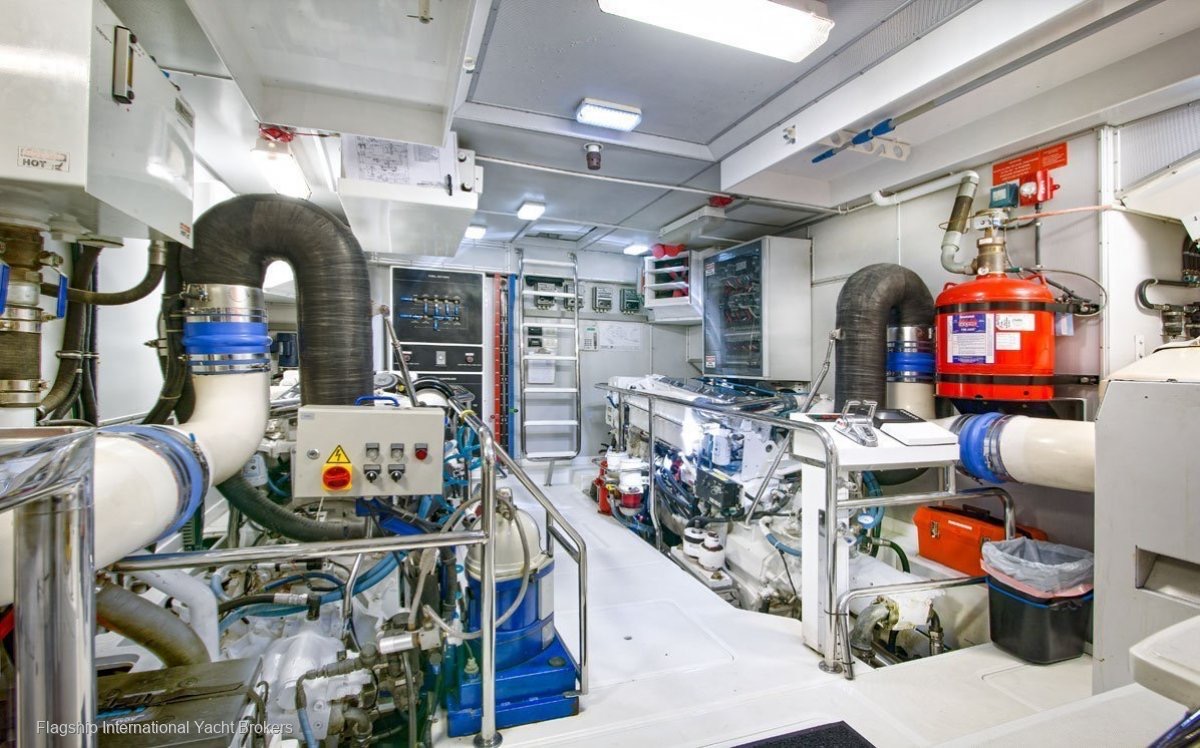

EngineTwin Caterpillar C18 diesels
Power715 hp each at 2,100 rpm
FuelDiesel
PropulsionTwin screw propulsion with 5-blade counter-rotating propellers.
ThrustersBow and Stern Thrusters: 38 hp bow and stern thrusters, hydraulically powered.
Fuel use12 to 15 gallons per hour at cruising speed.
GeneratorOnan model #MDDCA e-QD 40 kW Onan model #MDKBE e-QD 21.5 kW
Accommodation and domestic systems

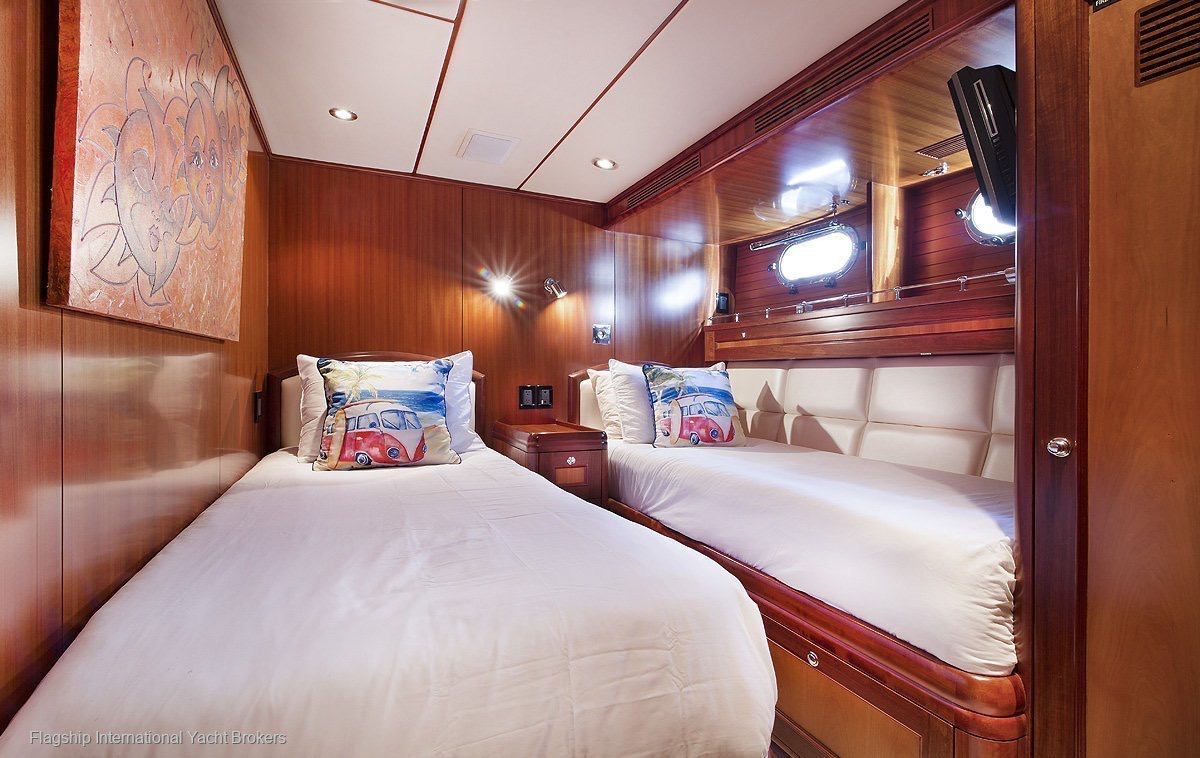

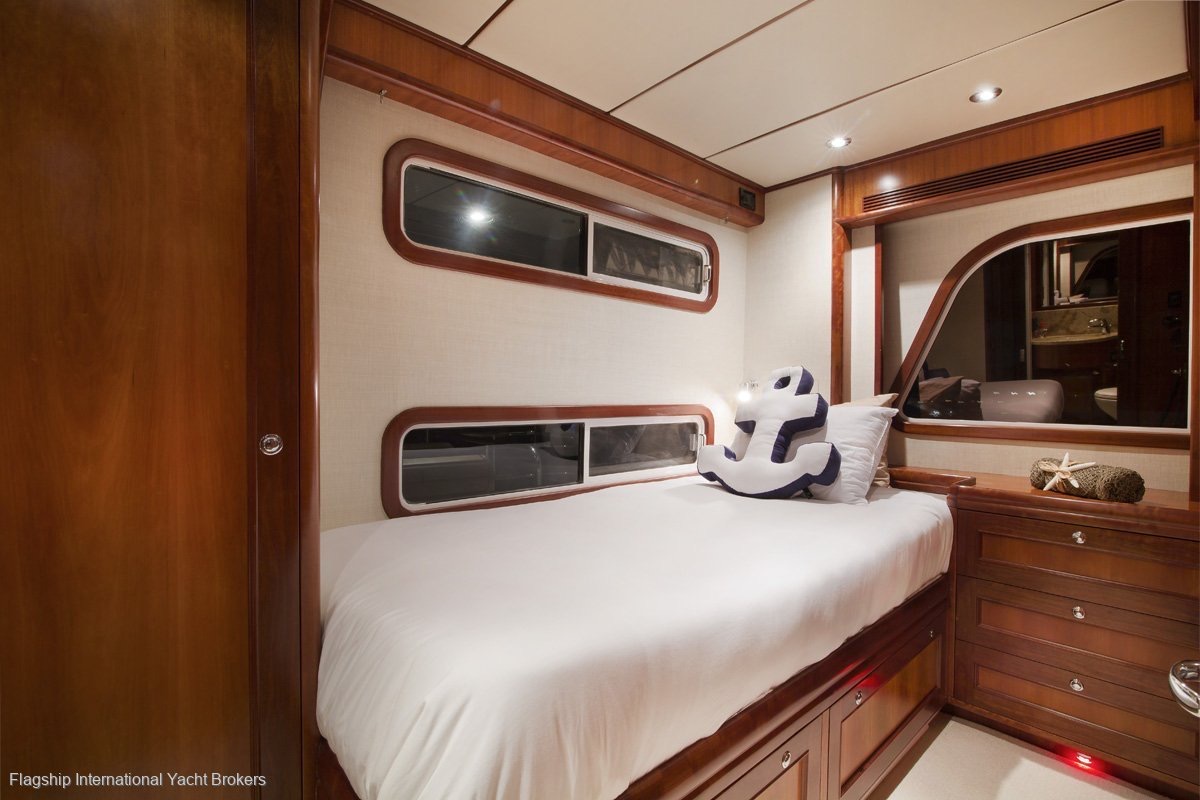

Cabins4
Berths8+ (Customisable to owner's specification)

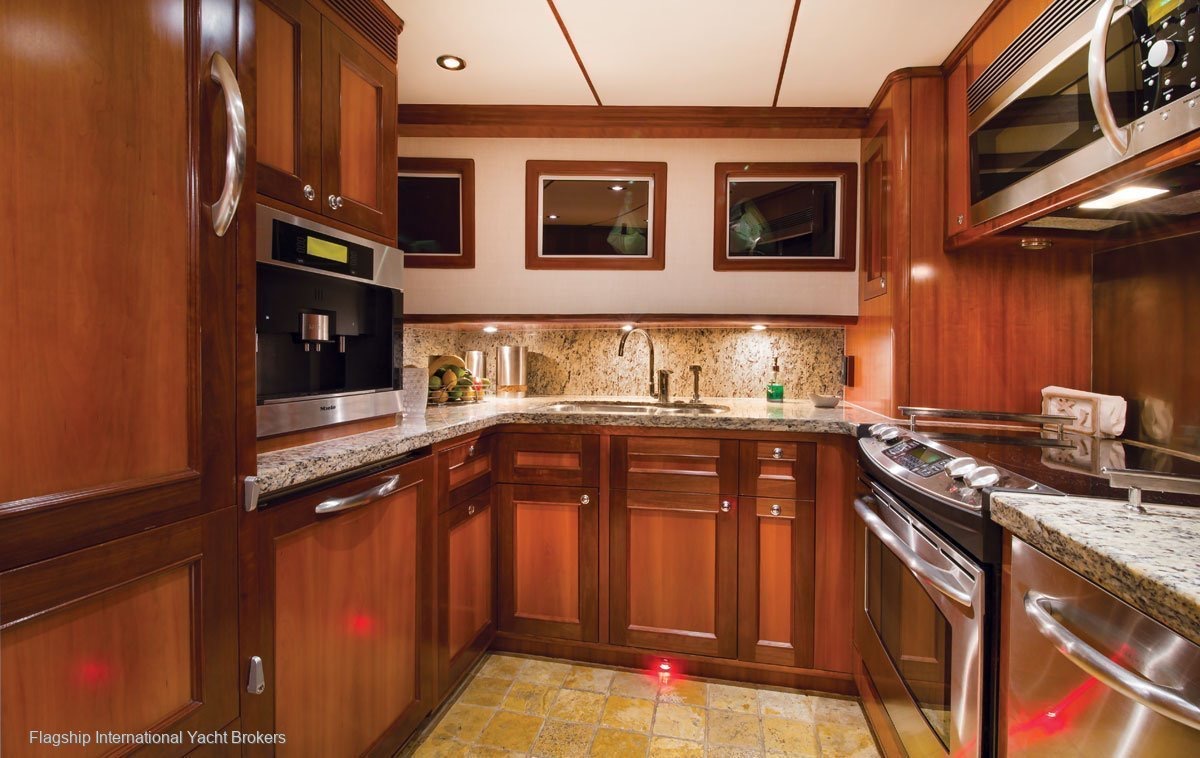

GalleyGranite countertops, full-size appliances.
RefrigerationSub Zero #736TCIL refrigerator/freezer with teak panels.
StoveG. E. Profile Stainless steel electric range.
Air conditioningCRUISAIR Tempered Water System.
EntertainmentStereo system and provision for flat-screen TVs in saloon and master cabin.
Tankage, deck and safety
Fuel capacity4,540 gallons / 17,185.8 L
Water capacity600 gallons / 2,271.2 L
Ground tackle650' of 5/8" HT chain. / Dual Maxwell VWC 4500 windlasses.
DinghyCapacity for multiple dinghies on foredeck.
Bilge pumpsElectric and manual emergency pumps.
Life jacketsFull set of life jackets for crew and guests.
Fire protectionSEAFIRE Fixed System Fire Extinguishers in engine room and lazarette.
Navigation and electrical

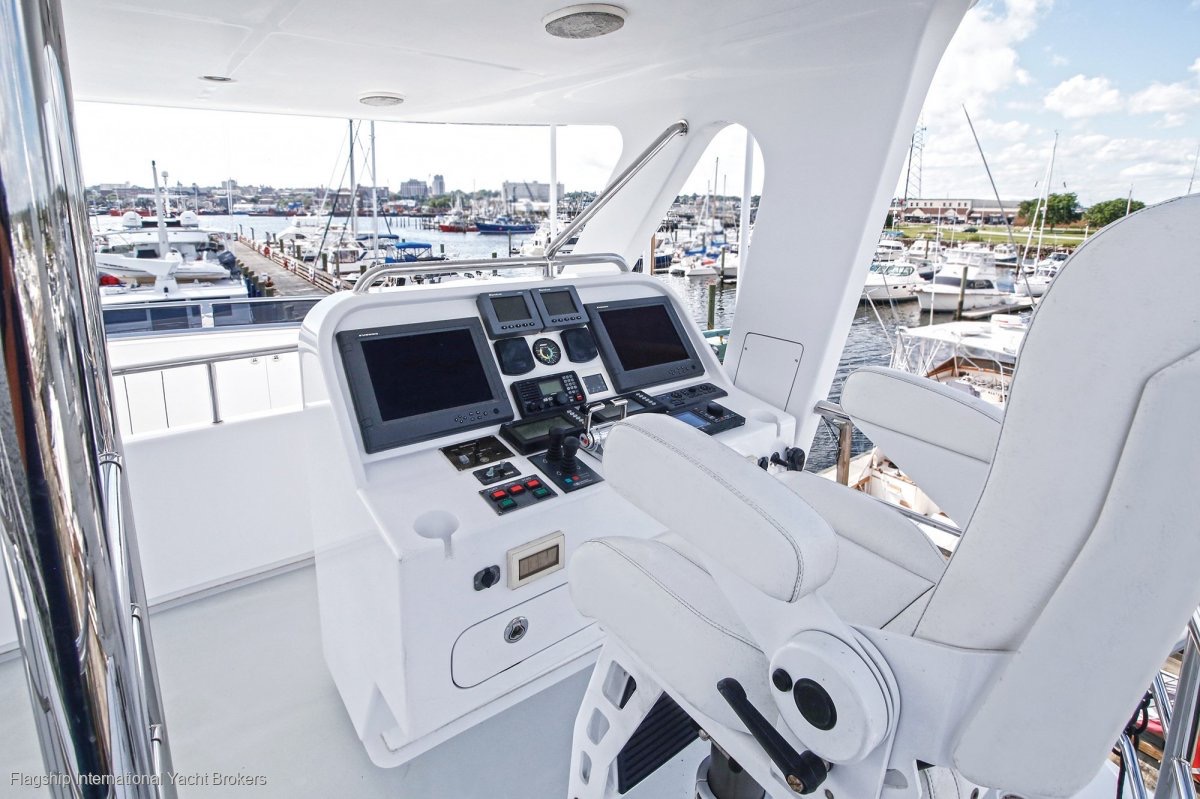

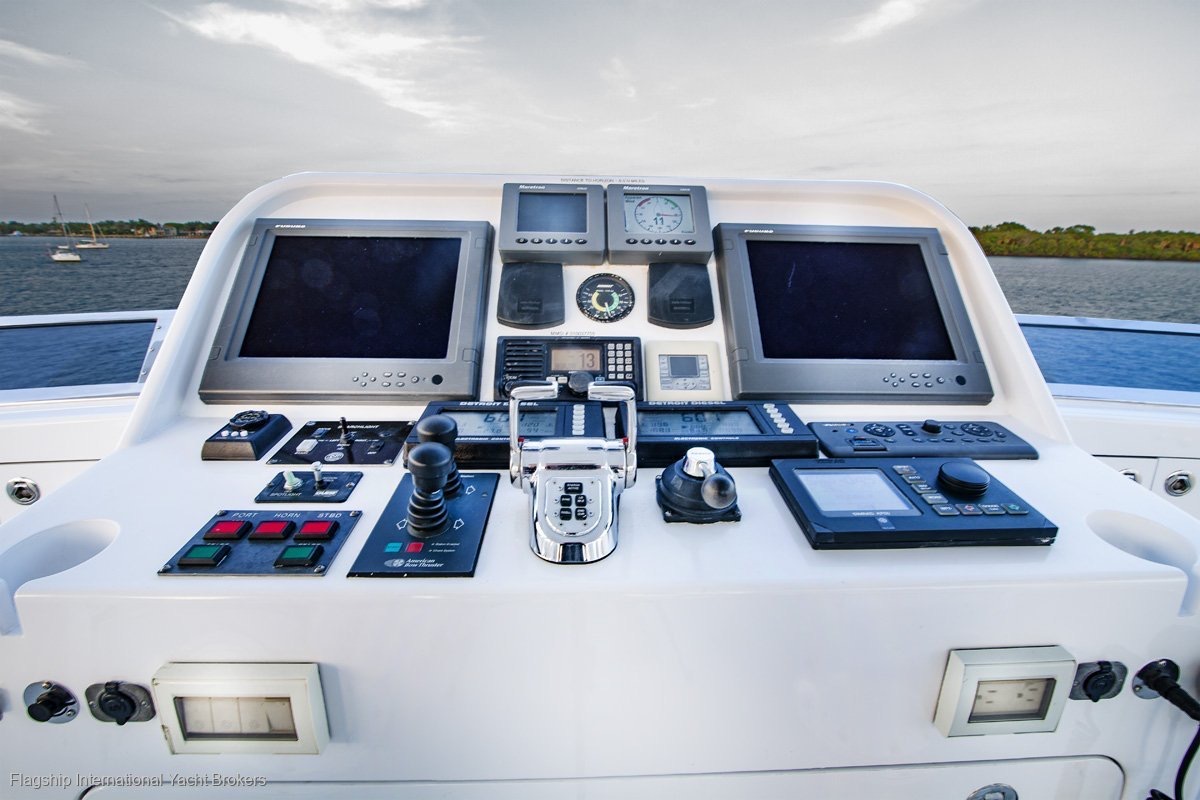

ElectronicsRaymarine eSeries GPS/Sounder, Chartplotter, VHF Radio.
