Nordhavn 71

A new-hull passagemaker with three or four stateroom configurations, developed for operation without permanent crew.

Current model

Overview

The 71 is a new hull positioned above the Nordhavn 68, using computational fluid dynamics and a twin engine configuration derived from current larger models.

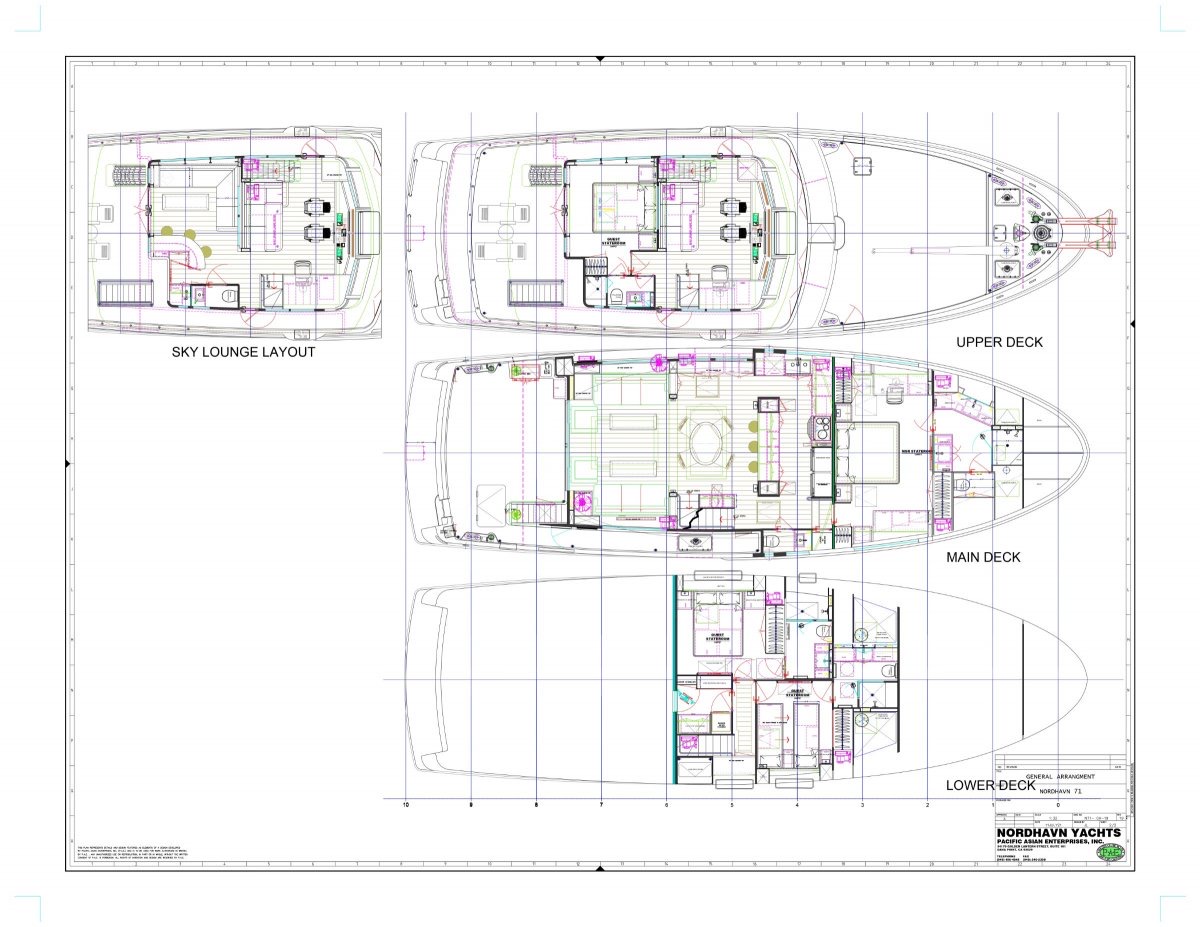

One layout provides three staterooms and a skylounge. The alternative replaces the skylounge with a fourth stateroom.

Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.

Nordhavn 71

Quick specifications

Length overall
71' 10" / 21.9 M excluding bow plank; 74' 0" / 22.56 M including bow plank
Waterline length
68' 4" / 20.83 M
Beam
22' 5 3/4" / 6.85 M
Draft
6' 8" / 2.03 M at DWL
Displacement
227,800 LBS / 103.55 METRIC TONS at DWL

Nordhavn 71

Photos

22 photos.

Nordhavn 71, image 11 / 22

1 / 22

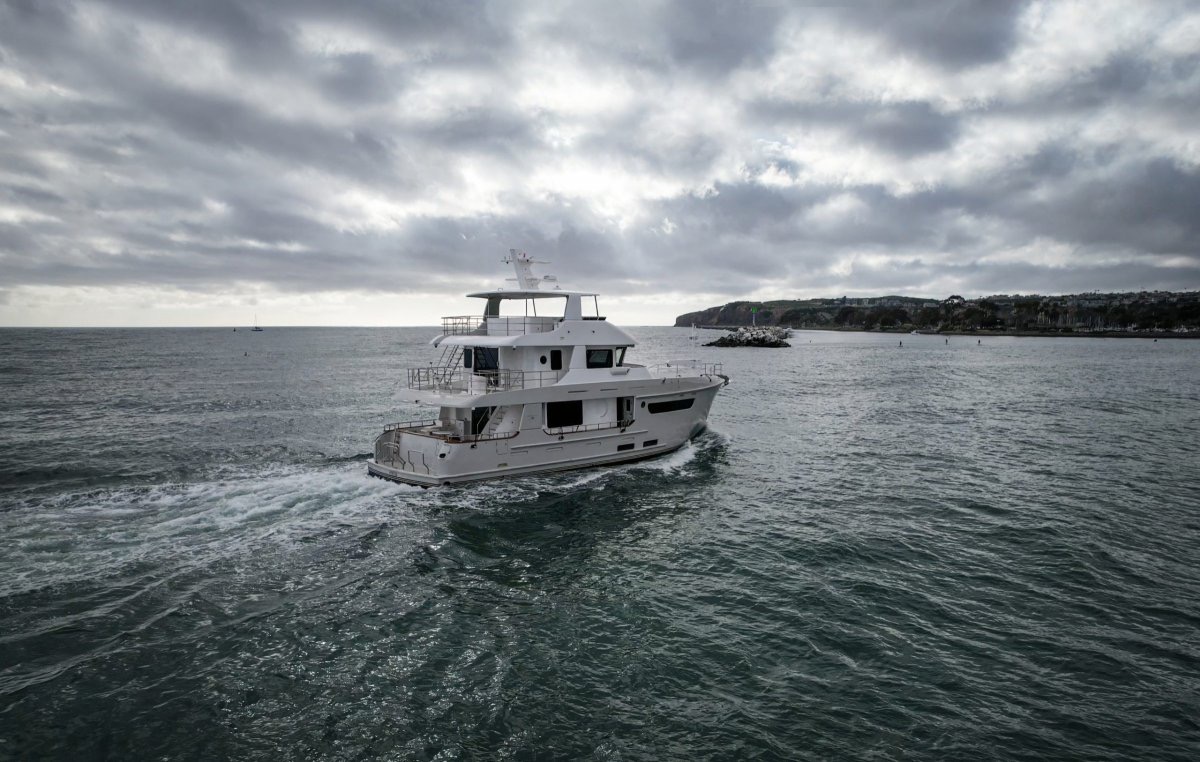

Nordhavn 71, image 1

Nordhavn 71

Specifications

Confirm equipment and final build configuration with Nordhavn Australia.

Dimensions and construction
ModelNordhavn 71
Length21.9 m
Beam22' 5.75" (6.85 metres)
Draft6'8" (2.03 metres)
Displacement227,800 lbs (103.55 metric tons)
DesignerJeff Leishman, Nordhavn Chief of Design
BuilderNordhavn Yachts
Hull materialFibreglass/GRP
Deck materialFibreglass
Propulsion and performance
EngineTwo John Deere, 249 hp engines
Engine makeJohn Deere
Power249 hp per engine
Number of engines2
FuelDiesel
PropulsionDirect Drive
ThrustersABT hydraulic system with 38 hp bow and stern thrusters
GeneratorTwo Northern Lights generators; one 30kW and one 20kW
Accommodation and domestic systems

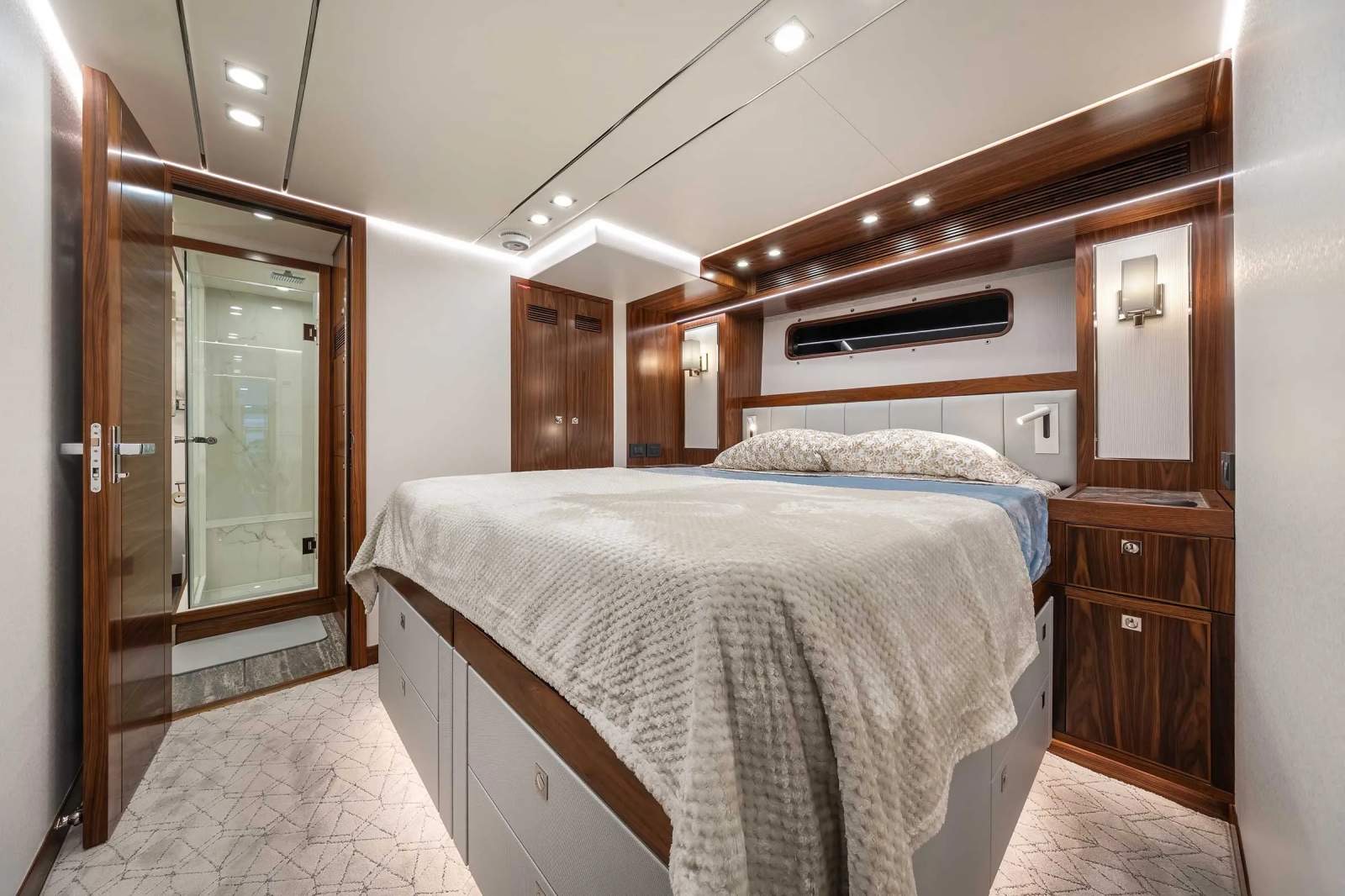

CabinsUp to 4
BerthsSleeps up to 8

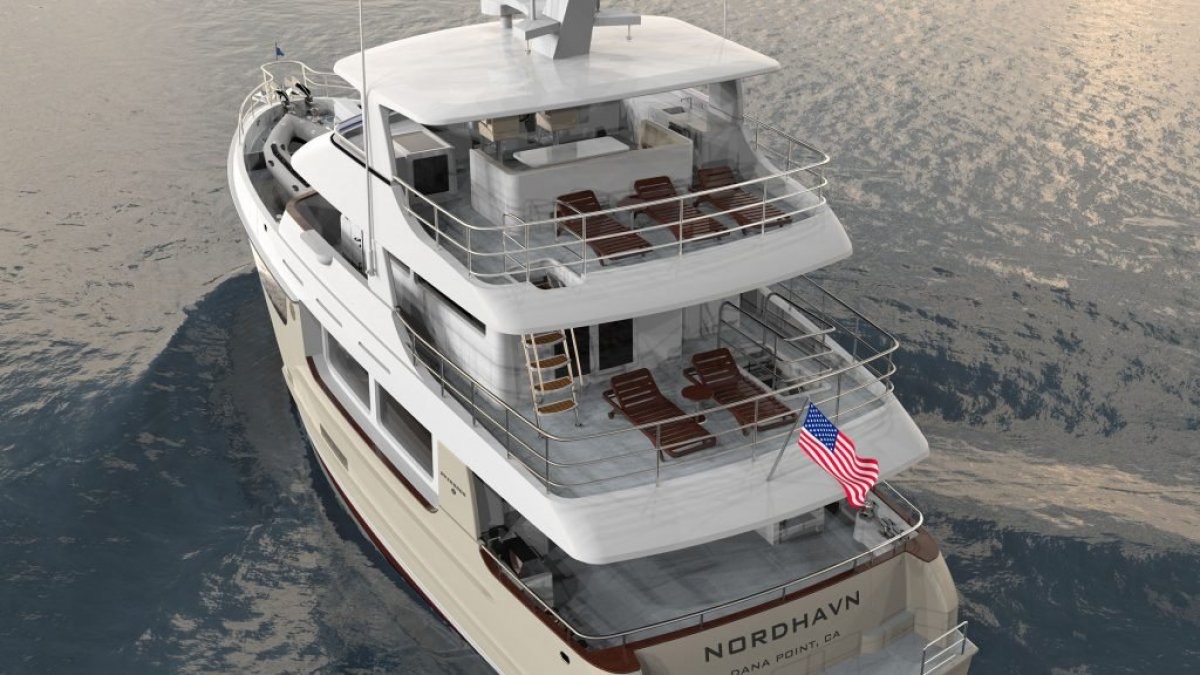

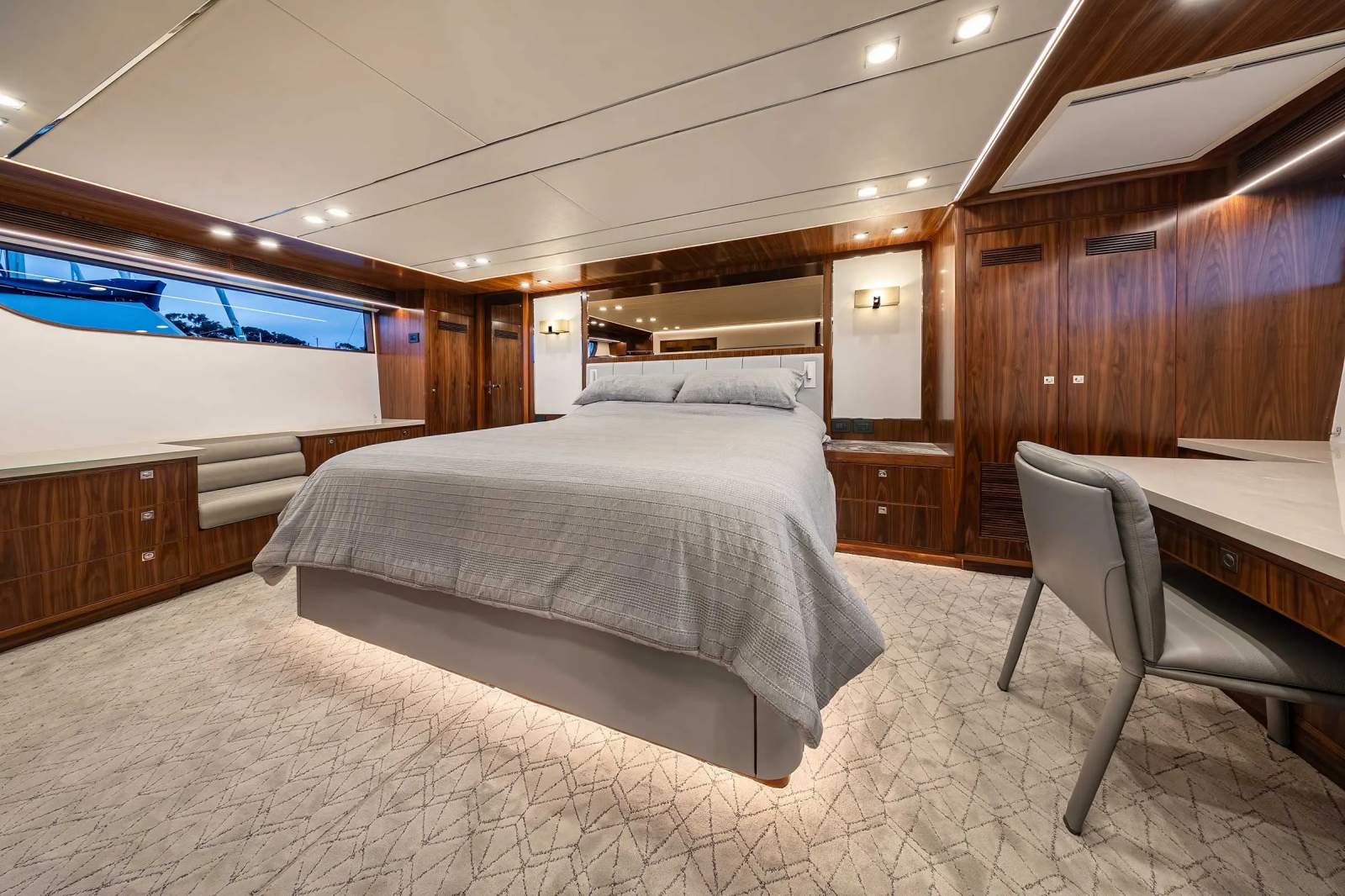

AccommodationAvailable in two layouts: a three-stateroom layout with skylounge or a four-stateroom option.
RefrigerationTwo GE Monogram 30" integrated refrigerator/freezers with ice makers
FreezerTop-loading 7 cu. Ft.

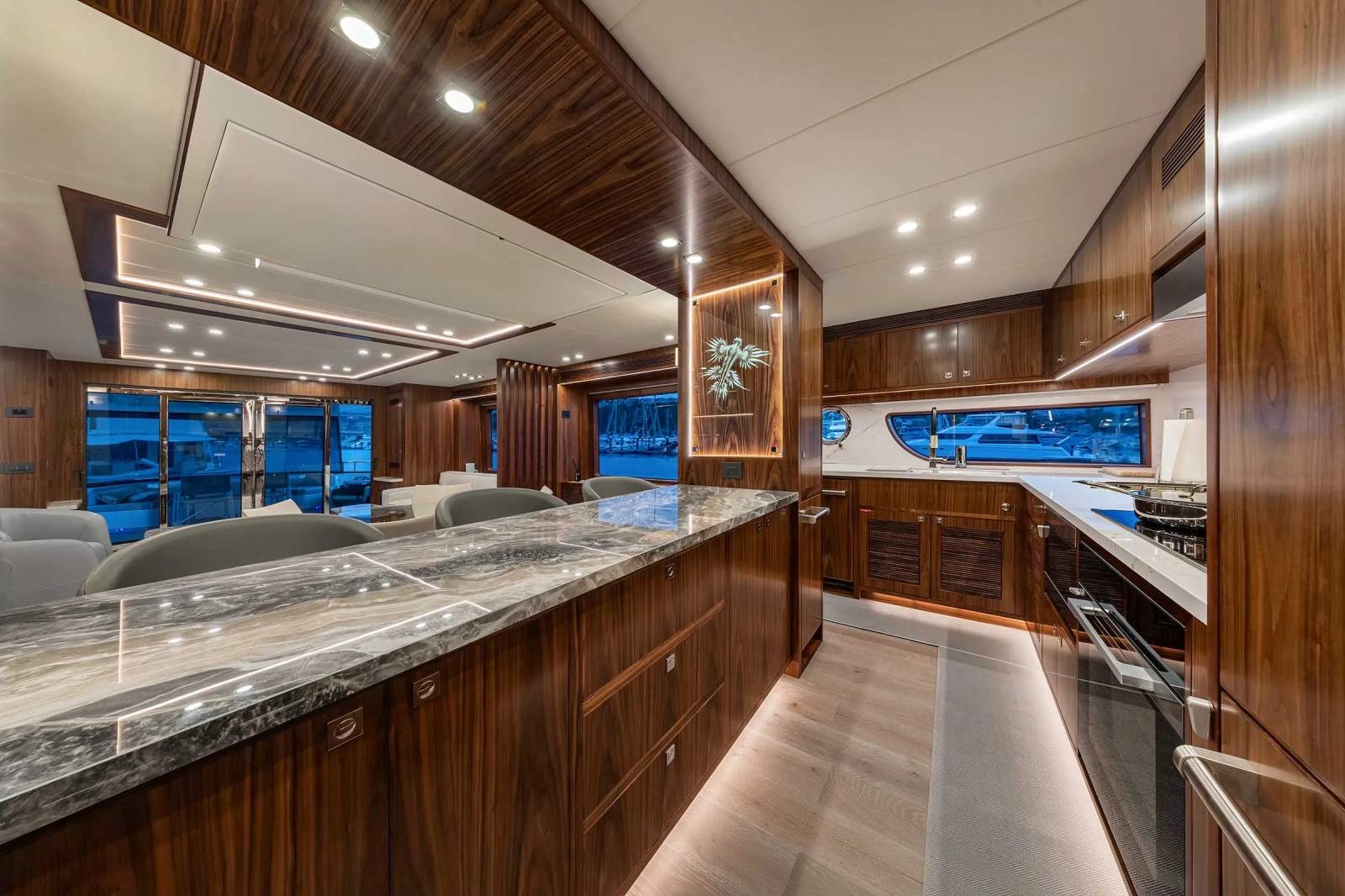

StoveMiele 30" 4-burner electric induction cooktop

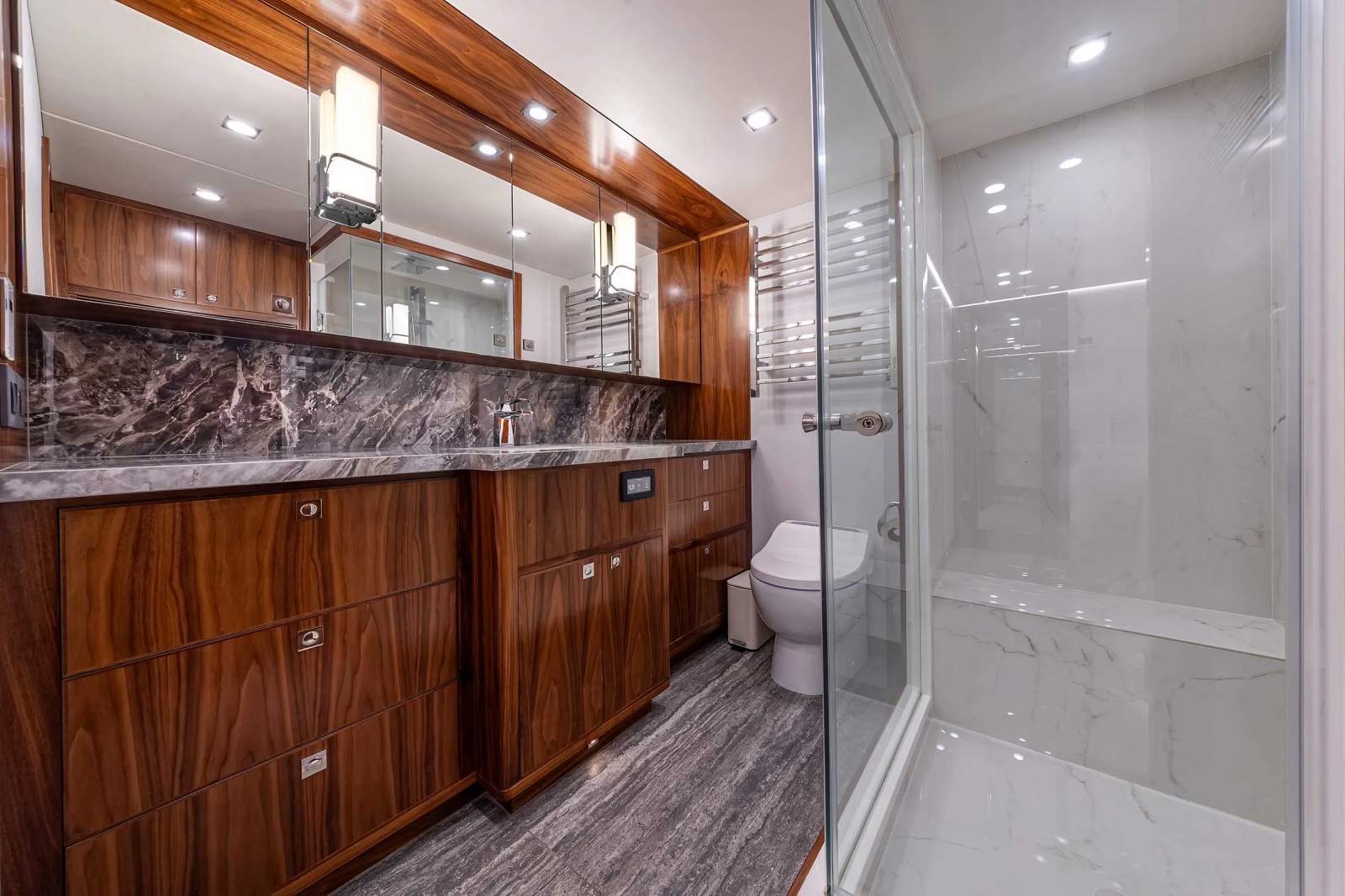

ShowerWalk-in showers in each head
ToiletFive Tecma Silence Plus toilets
Air conditioningDometic Cruisair chilled-water system, 144,000 BTU
WatermakerDometic SeaXchange XTCII 600 series fully automated water maker
Hot waterTwo Torrid MV30 30-gallon water heaters
Tankage, deck and safety
Fuel capacity4,631 gallons (17,528 litres)
Water capacity675 gallons (2,555 litres)
Ground tackleTwo Maxwell VWC 4000 hydraulic windlasses with 1/2" HT chain wheels
DinghyDavit with 2,500 lb capacity for tender
CoversFRP Carbon Fibre hardtop
Safety gearSeafire Fixed System Fire Extinguishers, portable fire extinguishers, high water bilge alarms
Bilge pumpsElectric and manual bilge pumps in each watertight compartment
Fire protectionSeafire Fixed System Fire Extinguishers in engine room, lazarette, and forward bilge compartments
Navigation and electrical
ElectronicsDesigned to accommodate a full suite of navigation and communication equipment (equipment not included)
ElectricsAC/DC electrical system with two Victron Quattro 8.0 kW inverter/chargers, extensive battery banks
