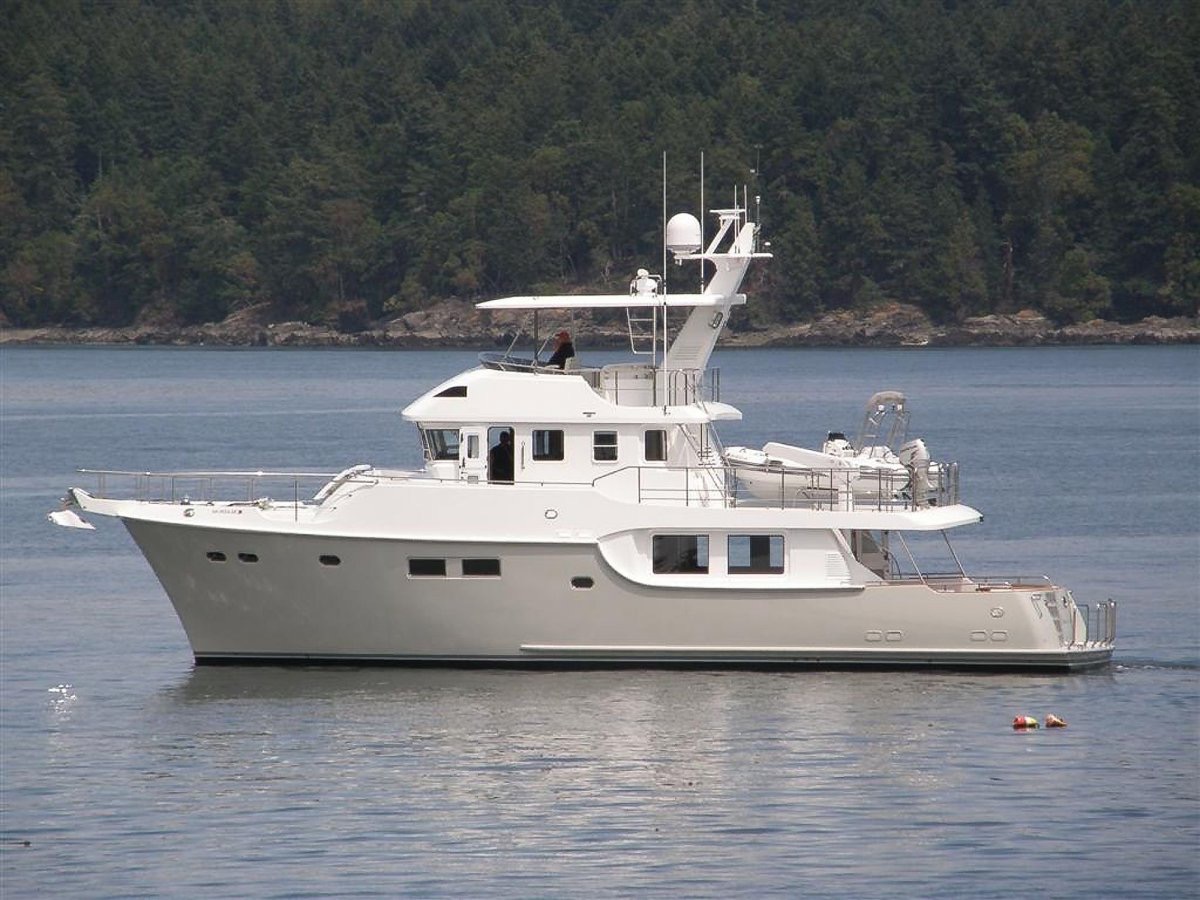

Nordhavn 60
A Nordhavn 55-derived hull with five additional feet in the cockpit and lazarette, plus a longer boat deck.
Current model
Overview

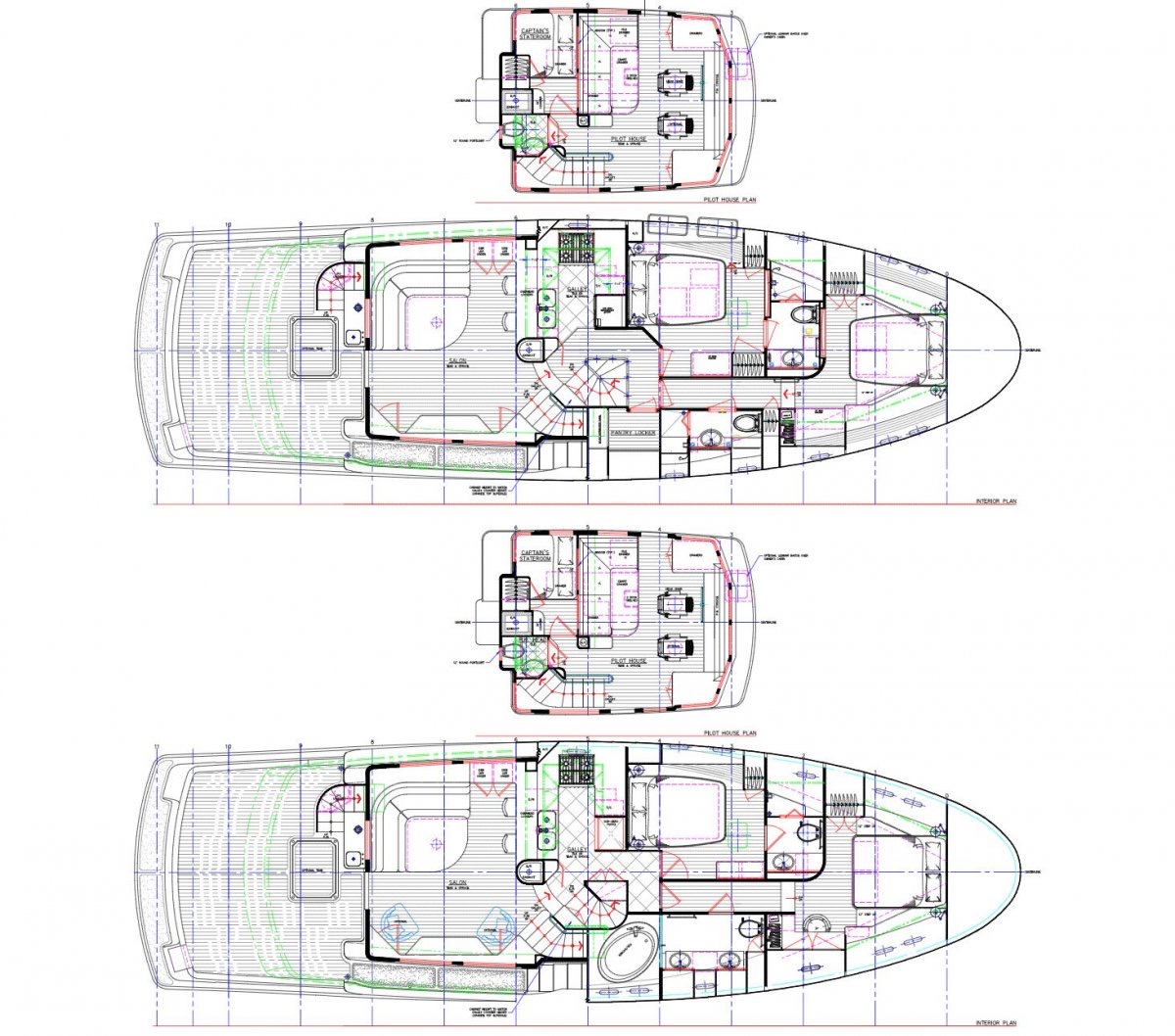

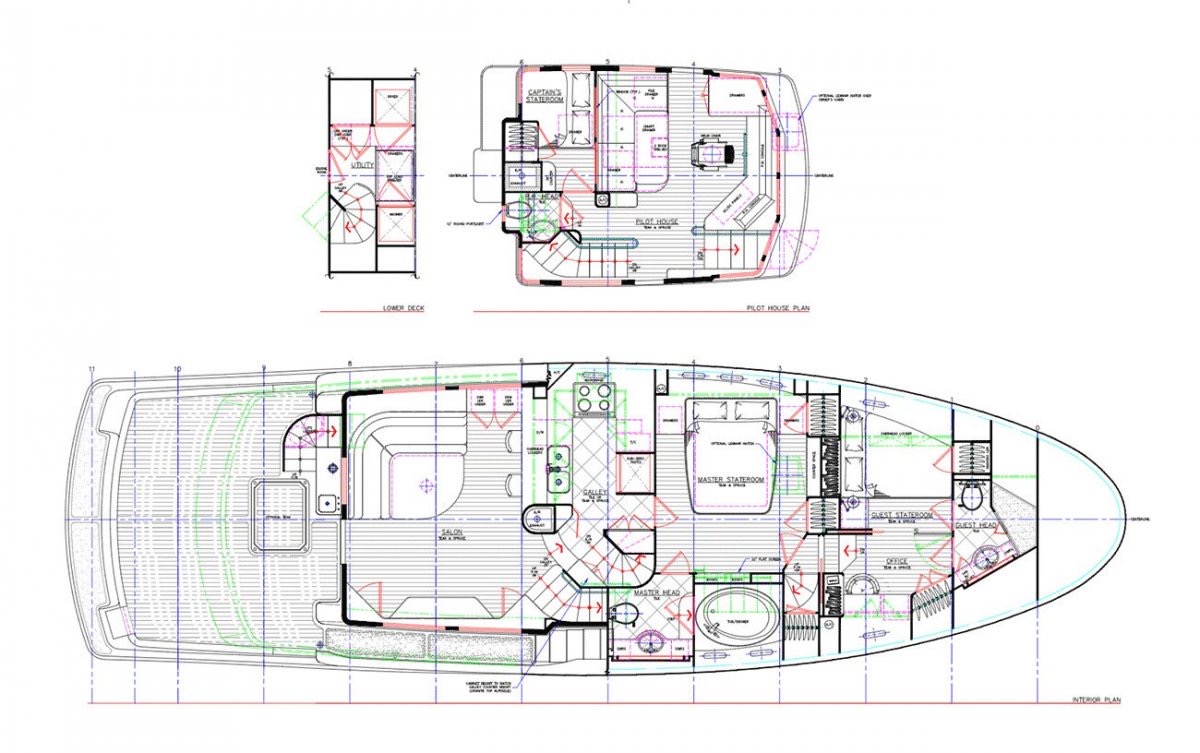

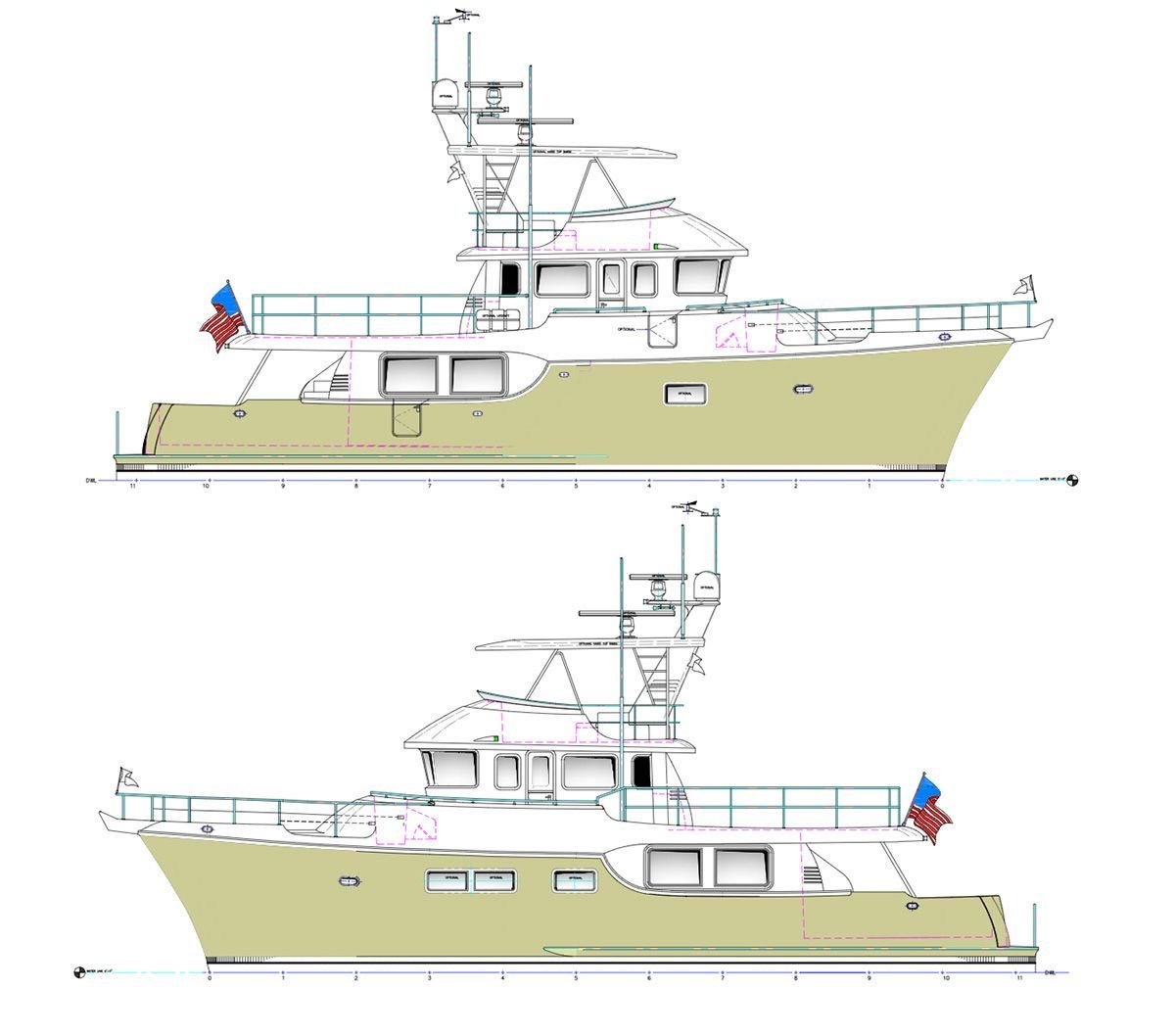

The 60 retains the Nordhavn 55 interior plan while extending the cockpit, lazarette and boat deck for more working space and a larger tender.
It is offered with single or twin engine configurations, with provision for additional fuel capacity for longer passages.
Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.
Nordhavn 60
Quick specifications
- Length overall
- 62' 6" / 19.05 M
- Waterline length
- 57' 3" / 17.45 M
- Beam
- 18' 0" / 5.49 M
- Draft
- 6' 8" / 2.02 M
- Displacement
- 138,000 lbs. / 62.60 MT
Nordhavn 60
Photos
20 photos.
1 / 20Nordhavn 60
Specifications
Confirm equipment and final build configuration with Nordhavn Australia.
Dimensions and construction
ModelNordhavn 60
Length19.05 m
Beam18' 0" / 5.49 m
Draft6' 8" / 2.02 m
Displacement138,000 lbs / 62.60 MT
Hull materialFibreglass/GRP
Propulsion and performance
EngineSingle John Deere 6090AFM85, 325 hp, with 3.958:1 reduction transmission. Optional twin-engine configuration available.
Engine makeJohn Deere
FuelDiesel
PropulsionSingle or twin conventional drives
Thrusters15 hp Side-Power bow thruster
GeneratorNorthern Lights 20 kW
Accommodation and domestic systems
Cabins3
Berths6
RefrigerationGE Monogram with custom teak doors
FreezerAdditional top-loading freezer in the laundry room
StoveGE LPG cooktop
ShowerEnsuite showers in all cabins

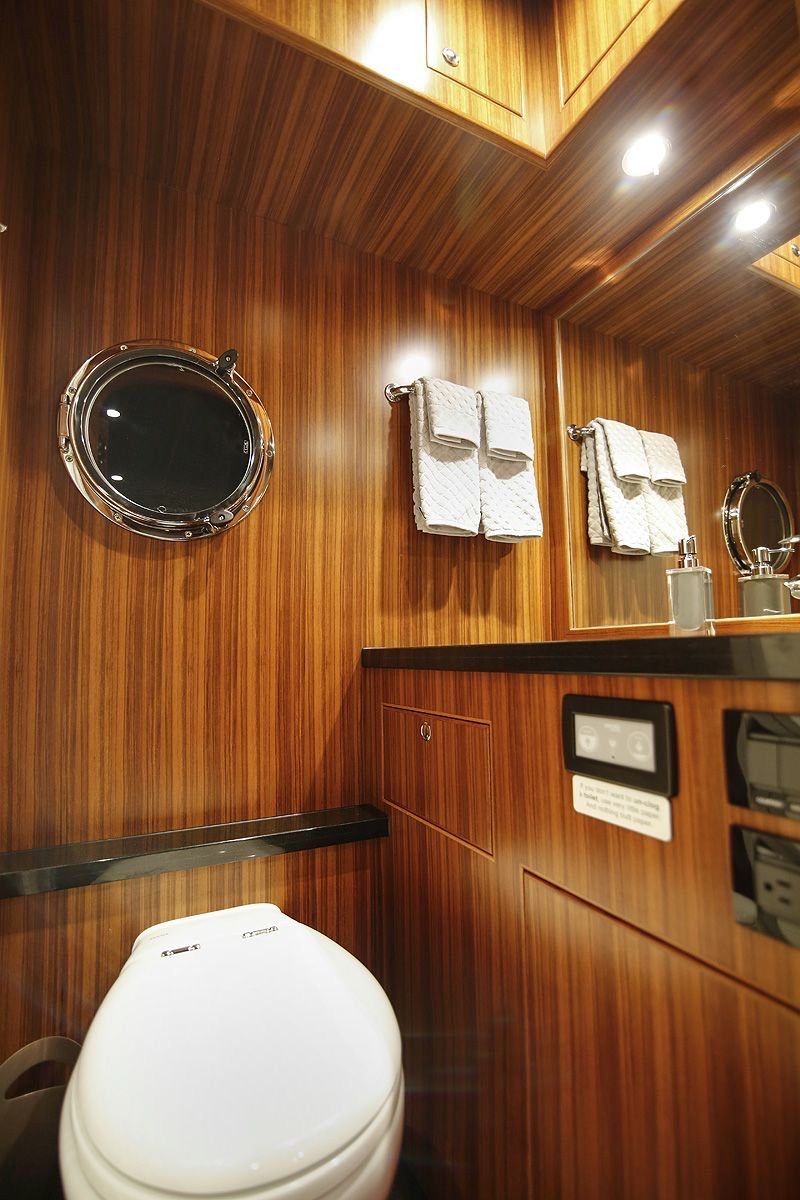

ToiletTecma Silence Plus with fresh water flush
Air conditioningFull reverse-cycle air conditioning throughout
Tankage, deck and safety
Fuel capacity2,250 gallons (8,517 litres) with optional additional tank for extended range
Water capacity600 gallons / 2,271 litres
Ground tackleMaxwell 24V windlass, stainless steel chain, and 170 lb anchor
DinghyOptional space for tender and water toys on extended boat deck
Safety gearFull complement of life jackets, flares, EPIRB, and grab bags
Bilge pumpsElectric and manual
Fire protectionEngine room equipped with fireproof insulation and automatic fire suppression system
Navigation and electrical
ElectronicsRaymarine multi-function displays, GPS, autopilot, and AIS. Optional radar and satellite communications package available.
Electrics24V DC system with 255 AH Lifeline AGM batteries and 3,500-watt inverter. Shore power with isolation transformer.
