Nordhavn 59CP

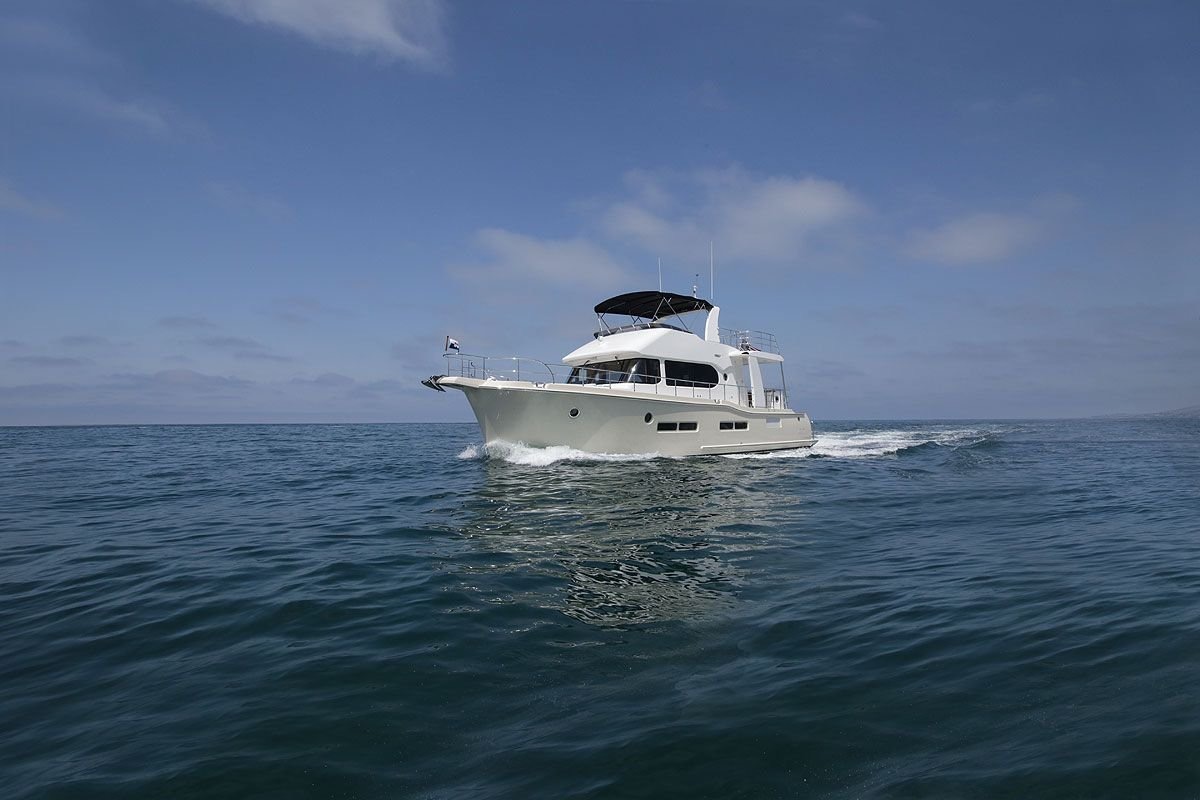

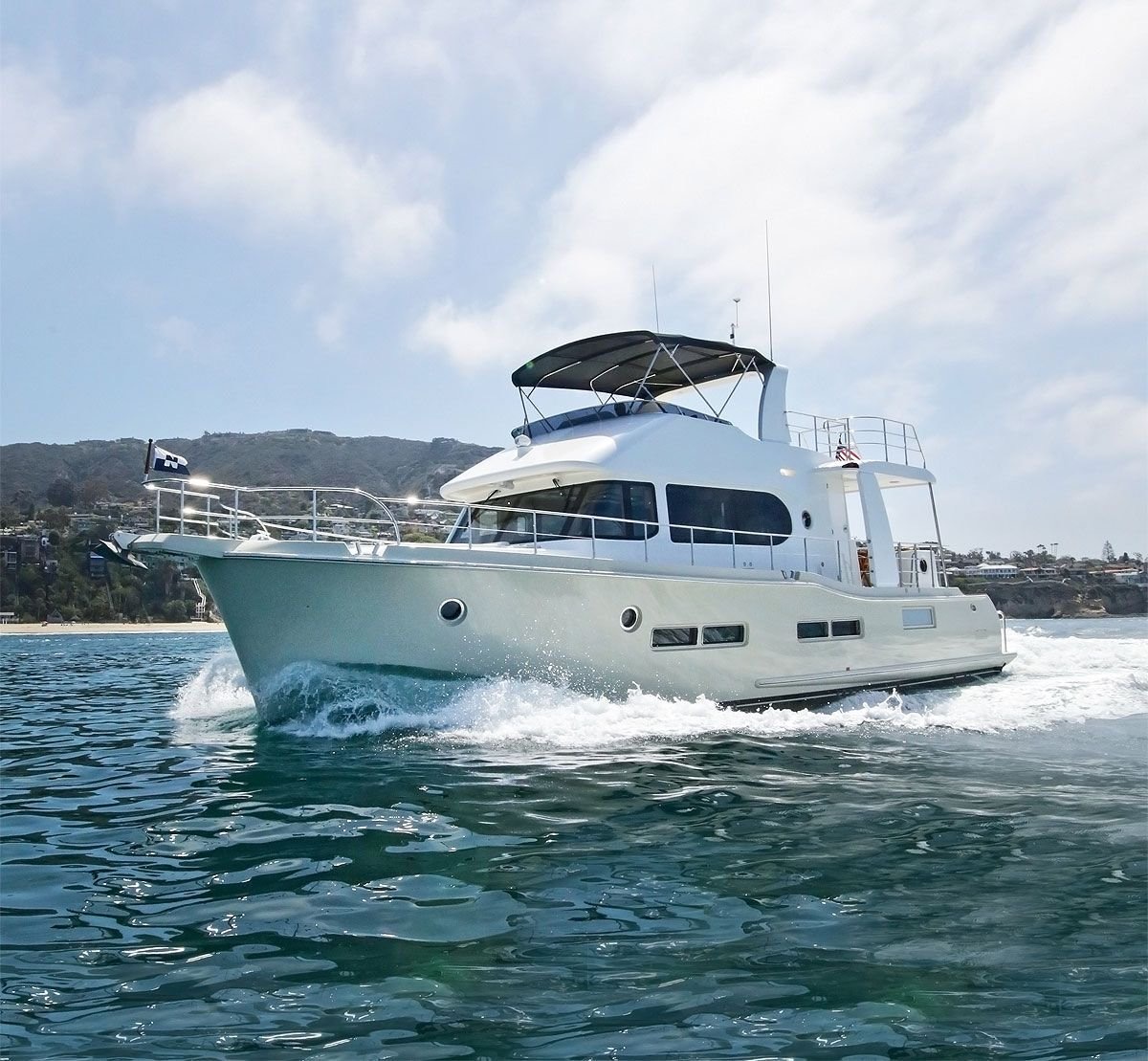

A semi-displacement coastal pilot designed for efficient low-speed cruising and a top-speed range of 18 to 20 knots.

Current model

Overview

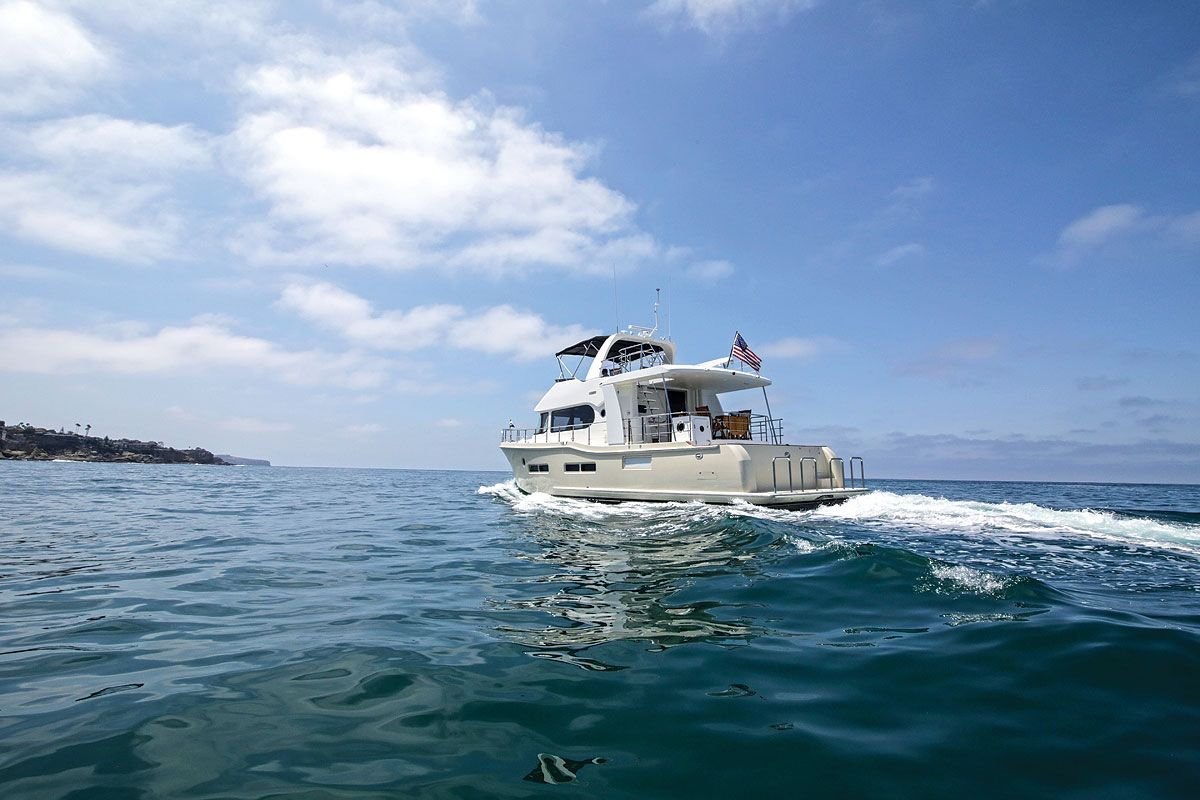

The 59CP uses a semi-displacement hull and carries a CE Category A offshore rating, separating it clearly from Nordhavn full-displacement passagemakers.

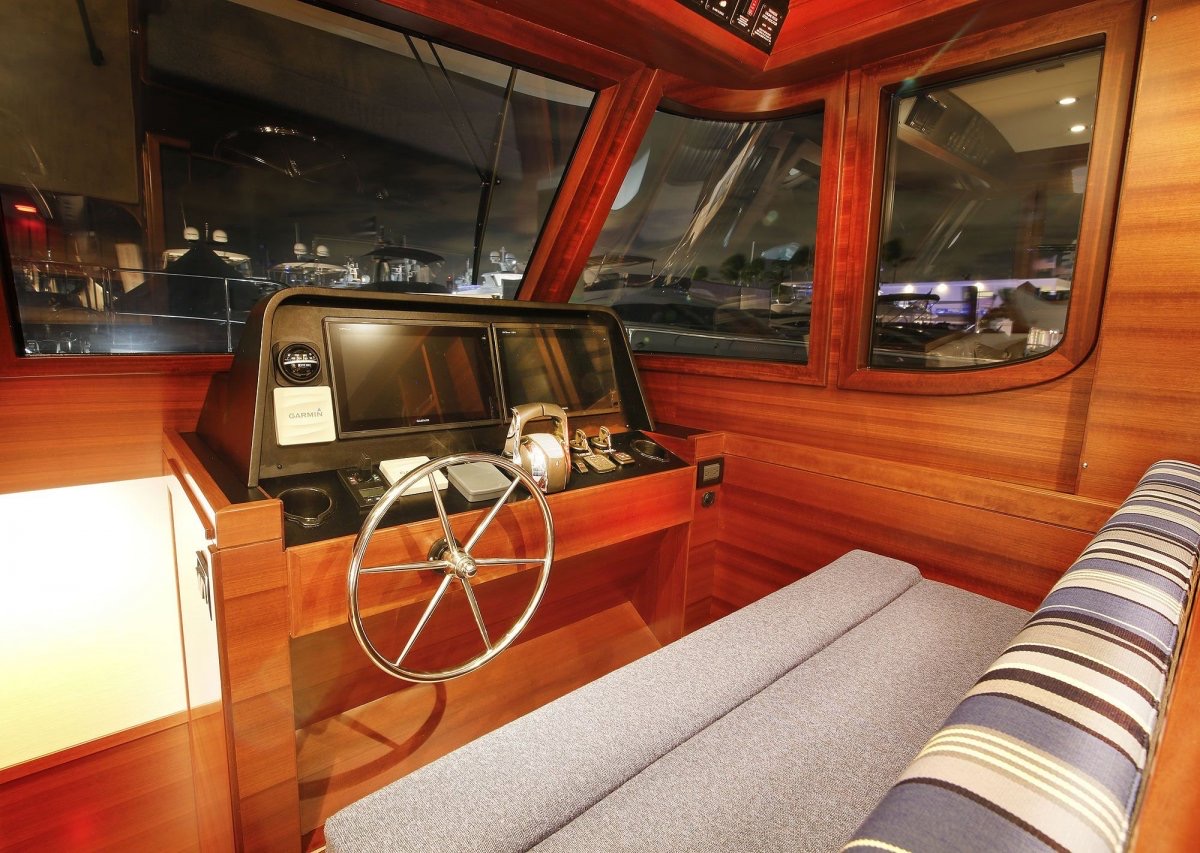

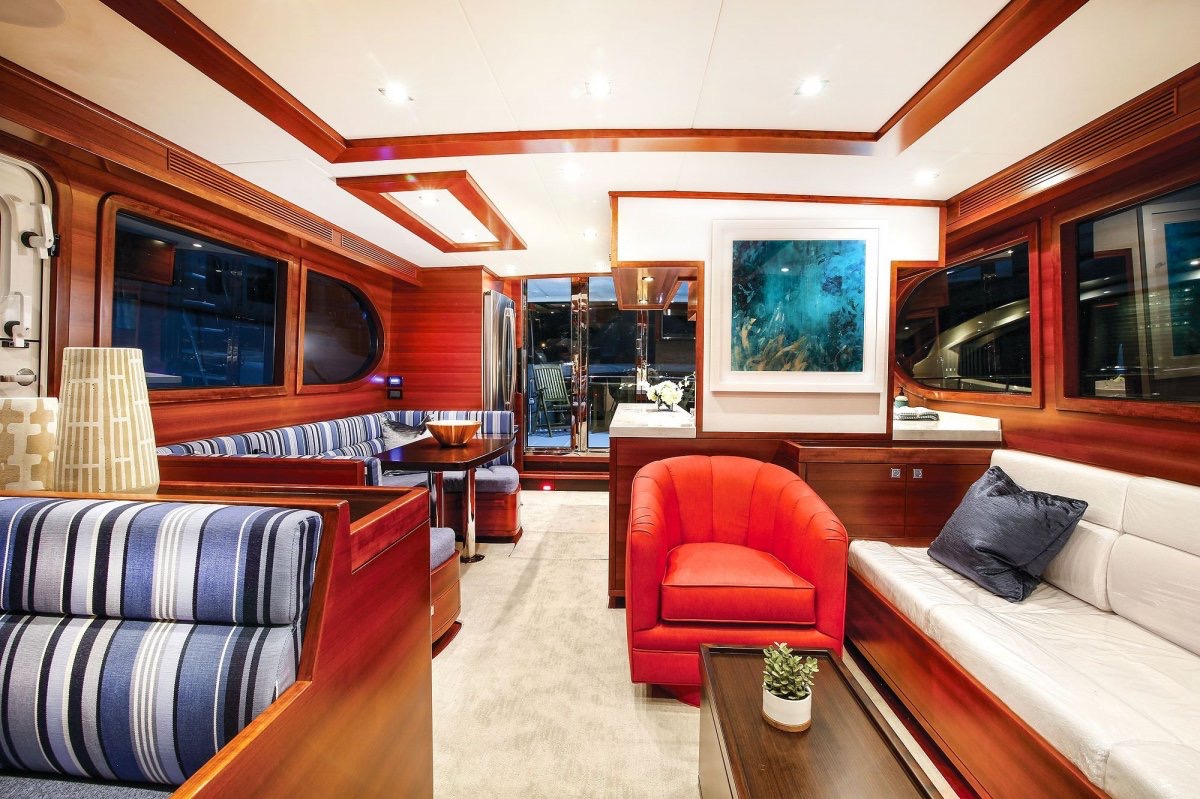

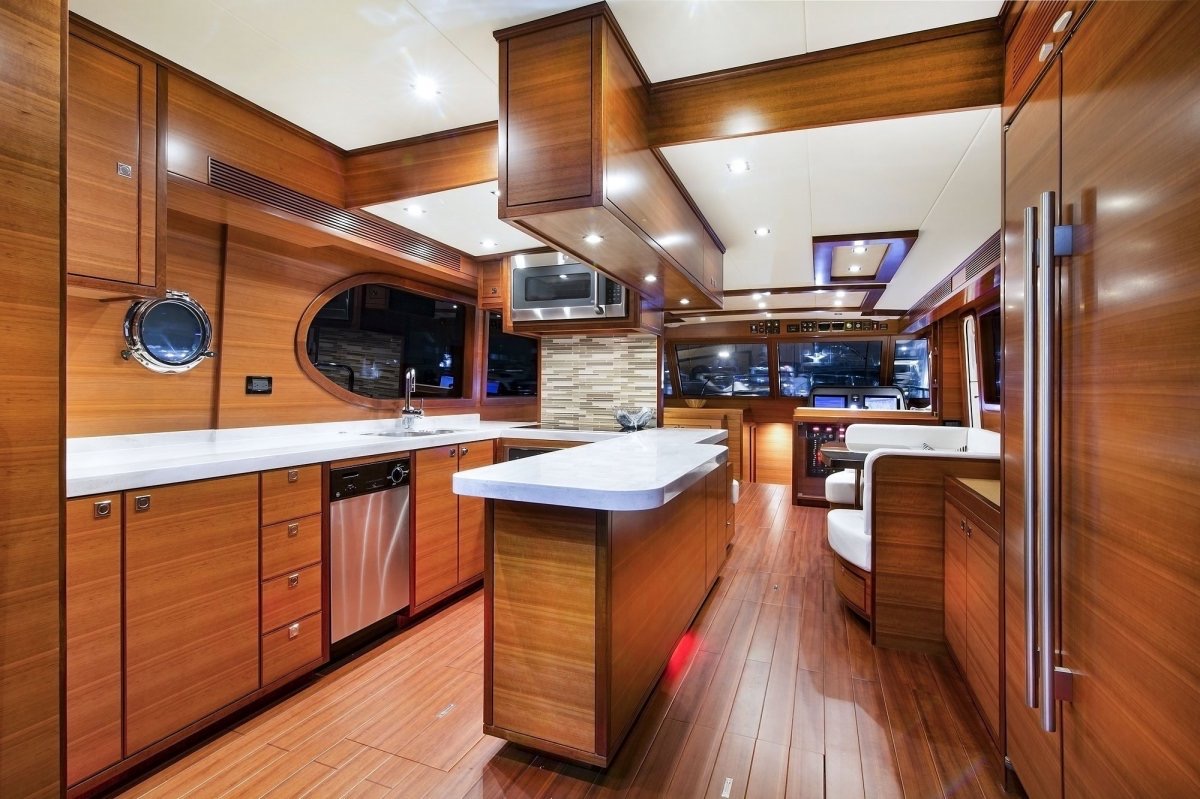

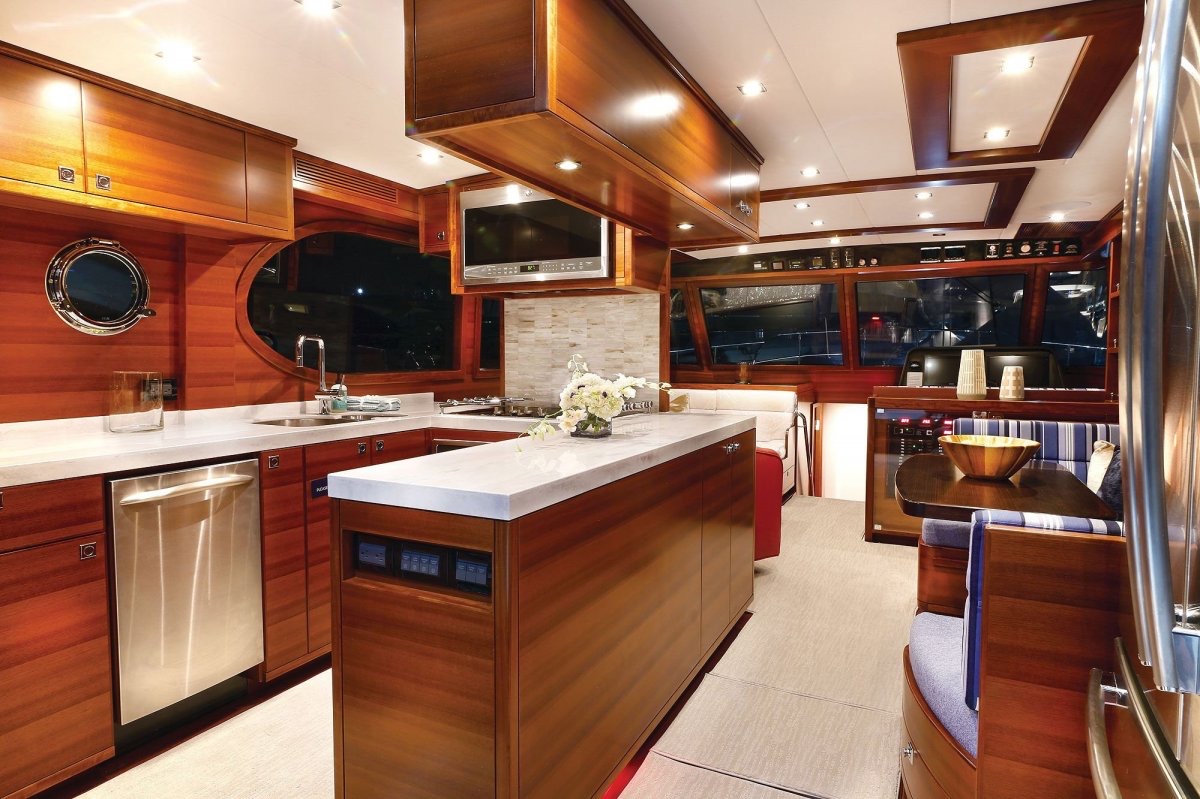

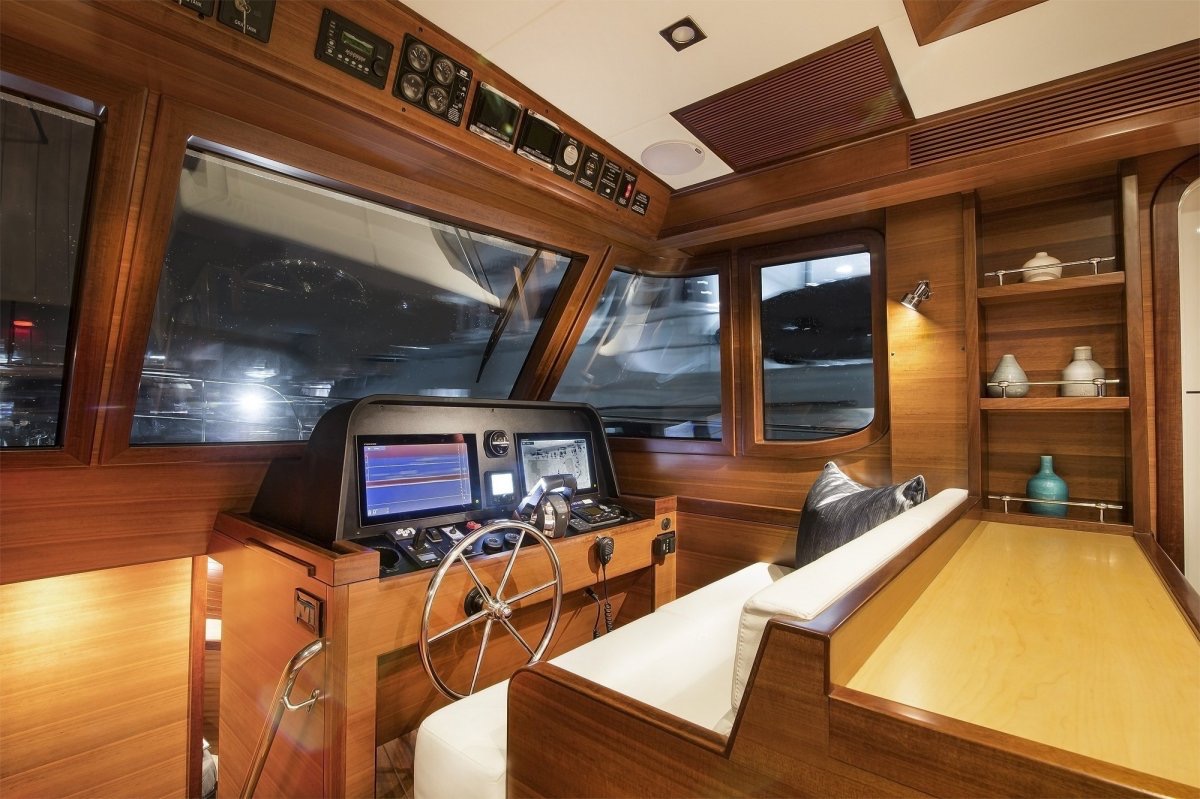

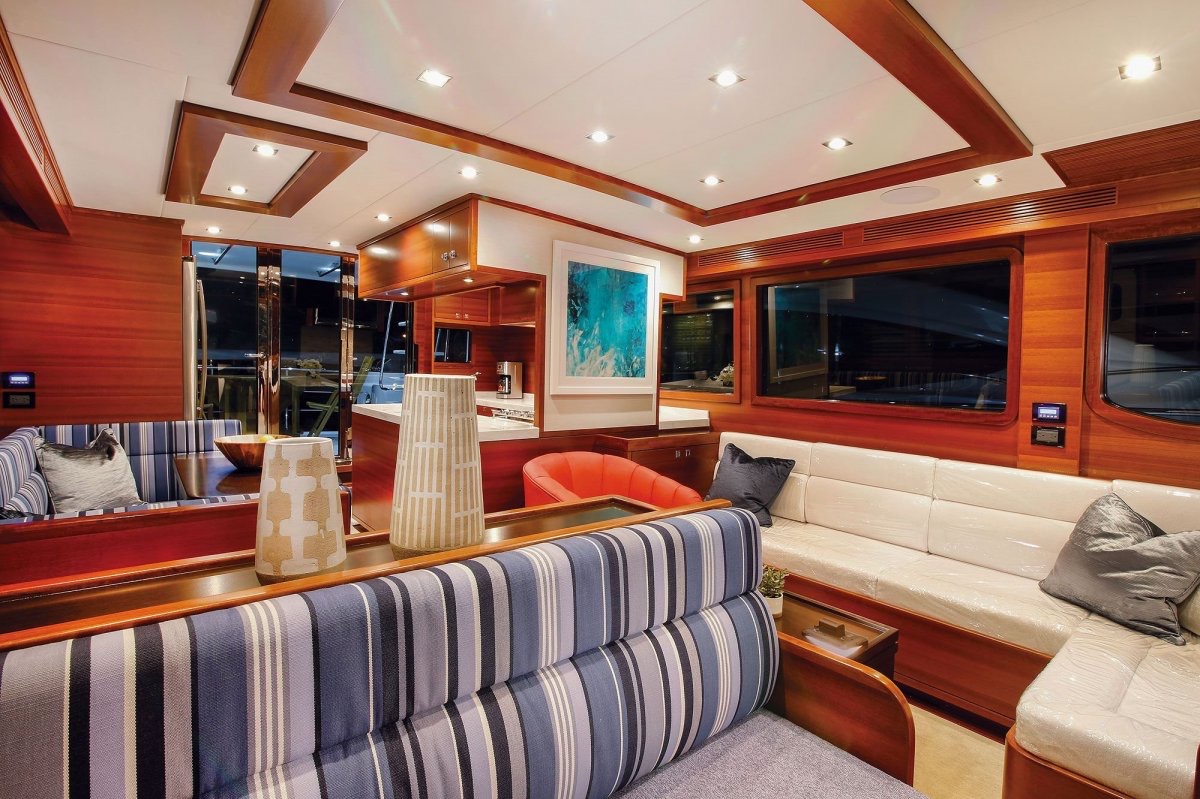

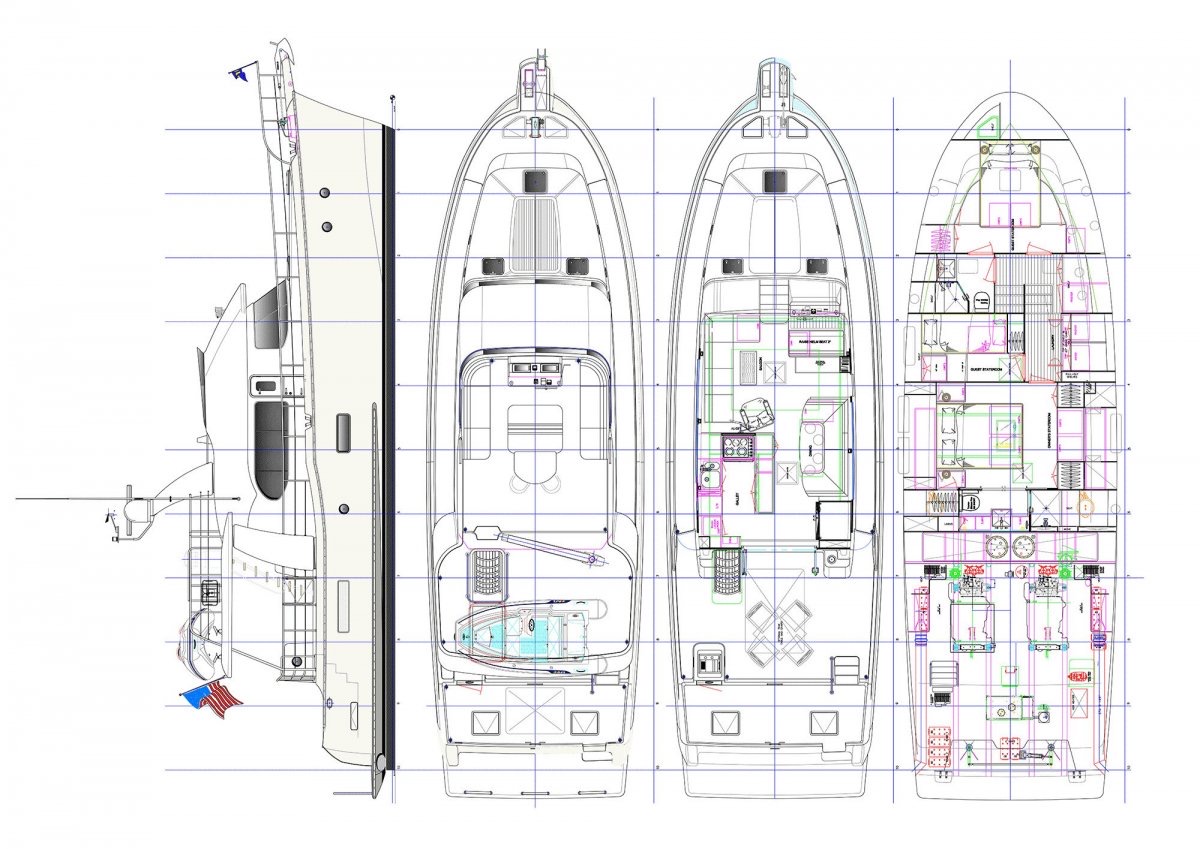

The main deck groups the galley, dinette, lounge and lower helm in one level, with a side door beside the helm for short-handed deck access.

Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.

Nordhavn 59CP

Quick specifications

Length overall
58' 9-1/2" / 17.92 M
Waterline length
50' 10" / 15.49 M
Beam
17' 0" / 5.18 M
Draft
5' 0" / 1.52 M
Displacement
88,000 lbs. / 39.92 MT

Nordhavn 59CP

Photos

33 photos.

Nordhavn 59CP, image 11 / 33

1 / 33

Nordhavn 59CP, image 1

Nordhavn 59CP

Specifications

Confirm equipment and final build configuration with Nordhavn Australia.

Dimensions and construction
ModelNordhavn 59CP
Length17.92 m
Beam17' 0" / 5.18 m
Draft5' 0" / 1.52 m
Displacement88,000 lbs / 39.92 MT
DesignerNordhavn Yachts
BuilderNordhavn Yachts
Hull materialFibreglass/GRP
Propulsion and performance
FuelDiesel

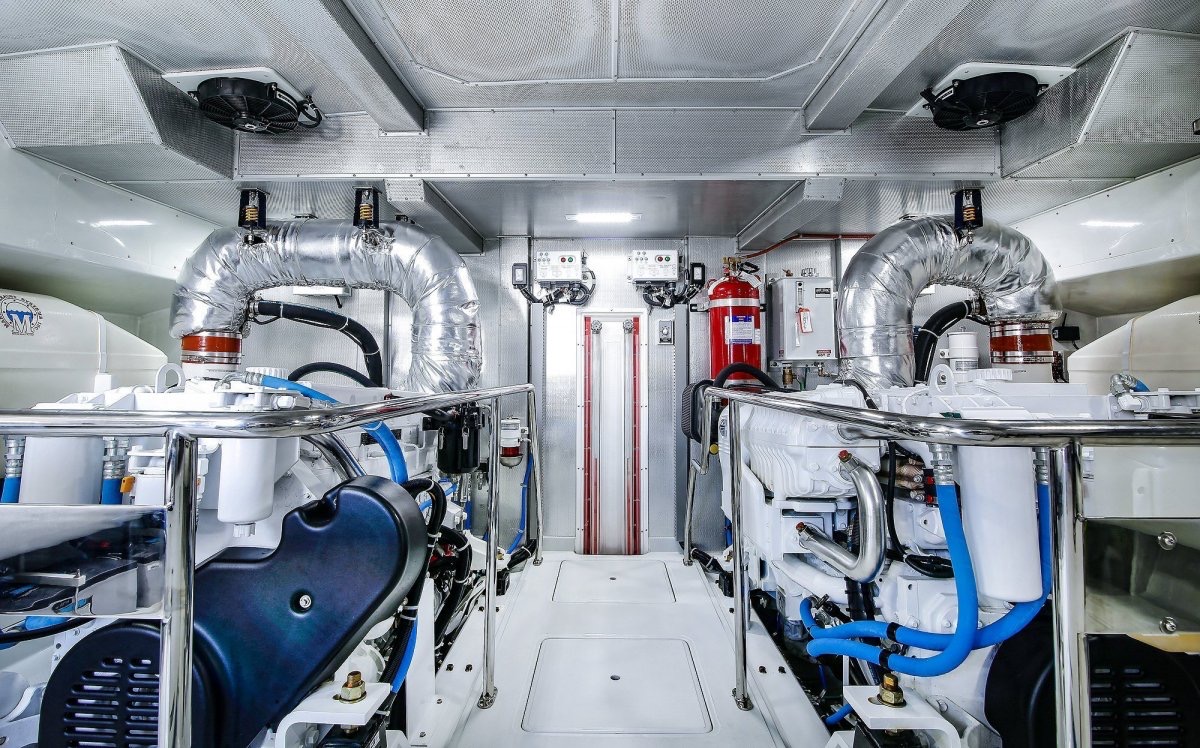

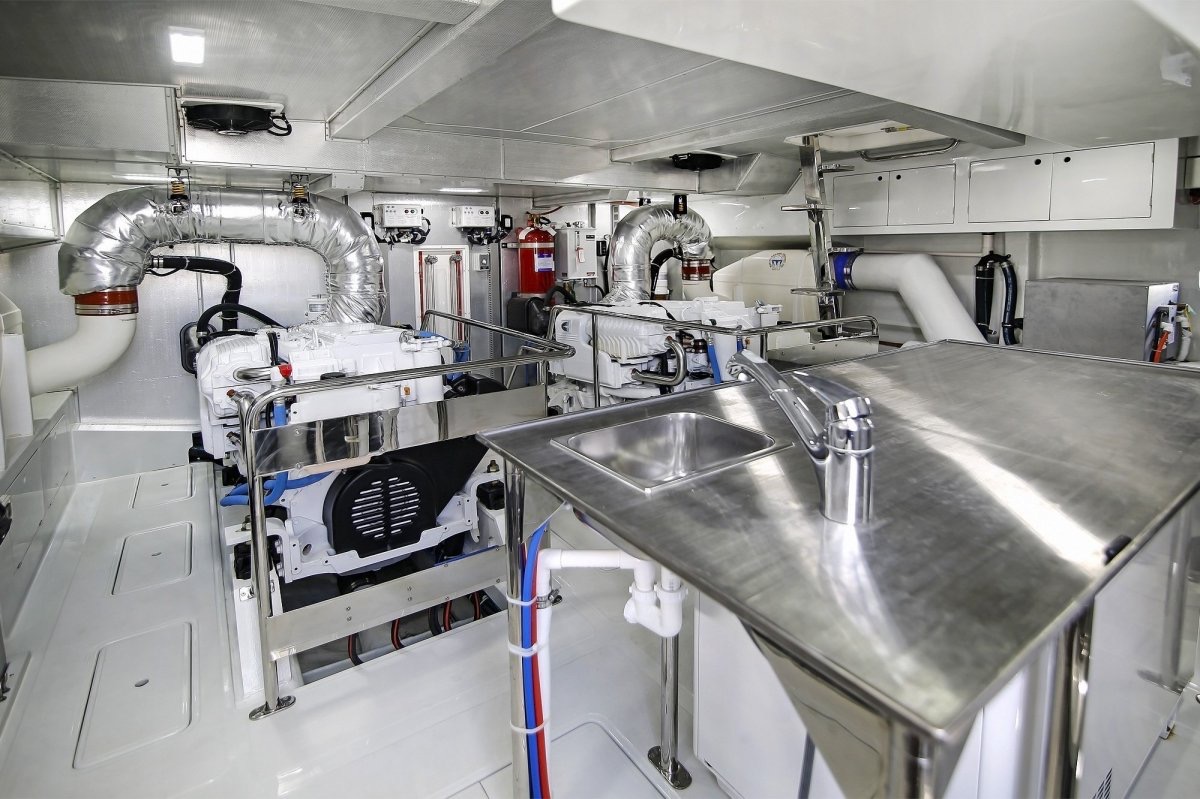

PropulsionTwin inboard shaft drives
Thrusters11 hp Side-Power bow thruster
Cruising speed12-15 knots
Maximum speed20 knots

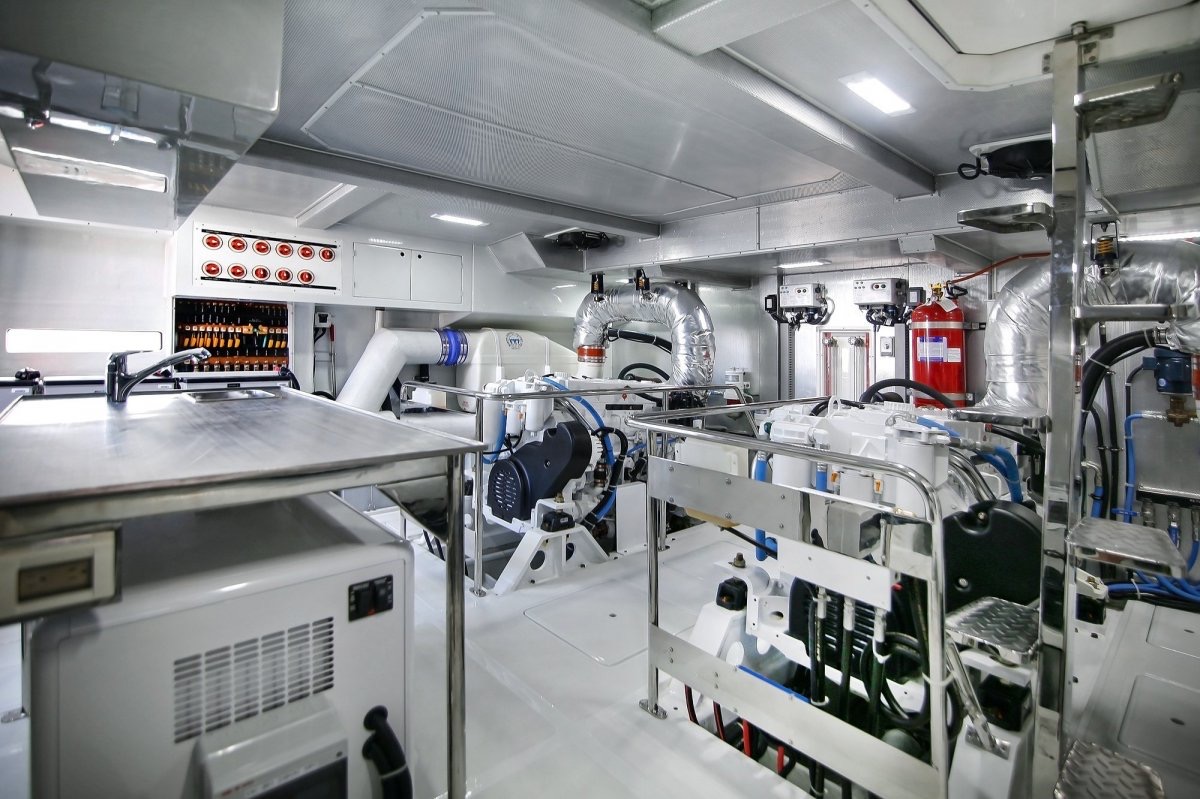

GeneratorOnan 21.5 kW
Accommodation and domestic systems

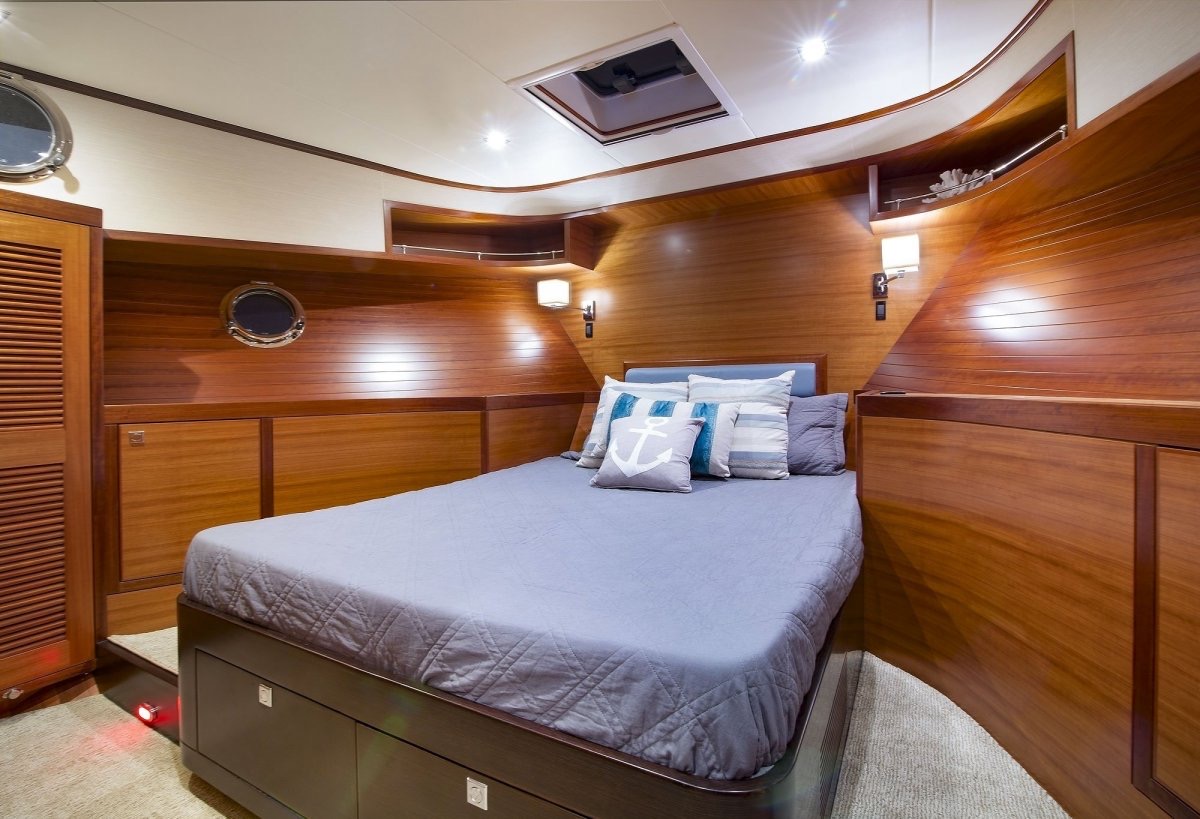

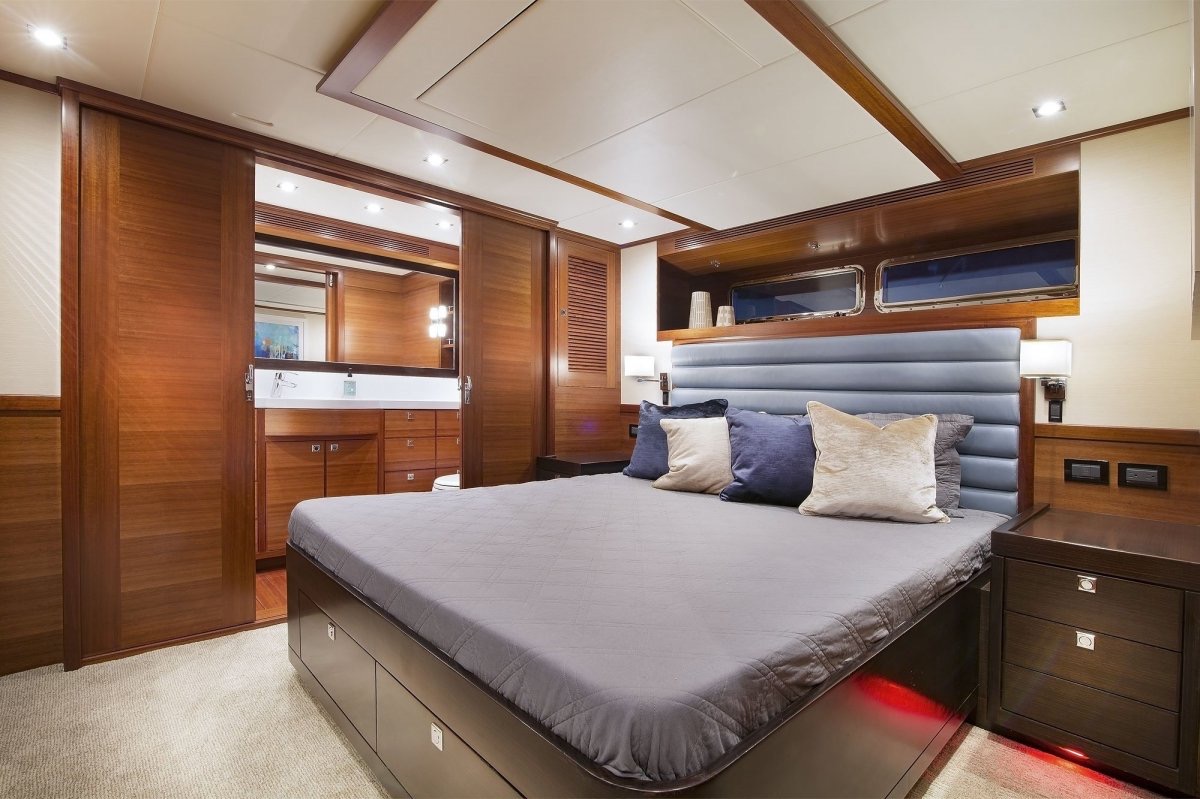

Cabins2 (optional 3)
Berths4-6

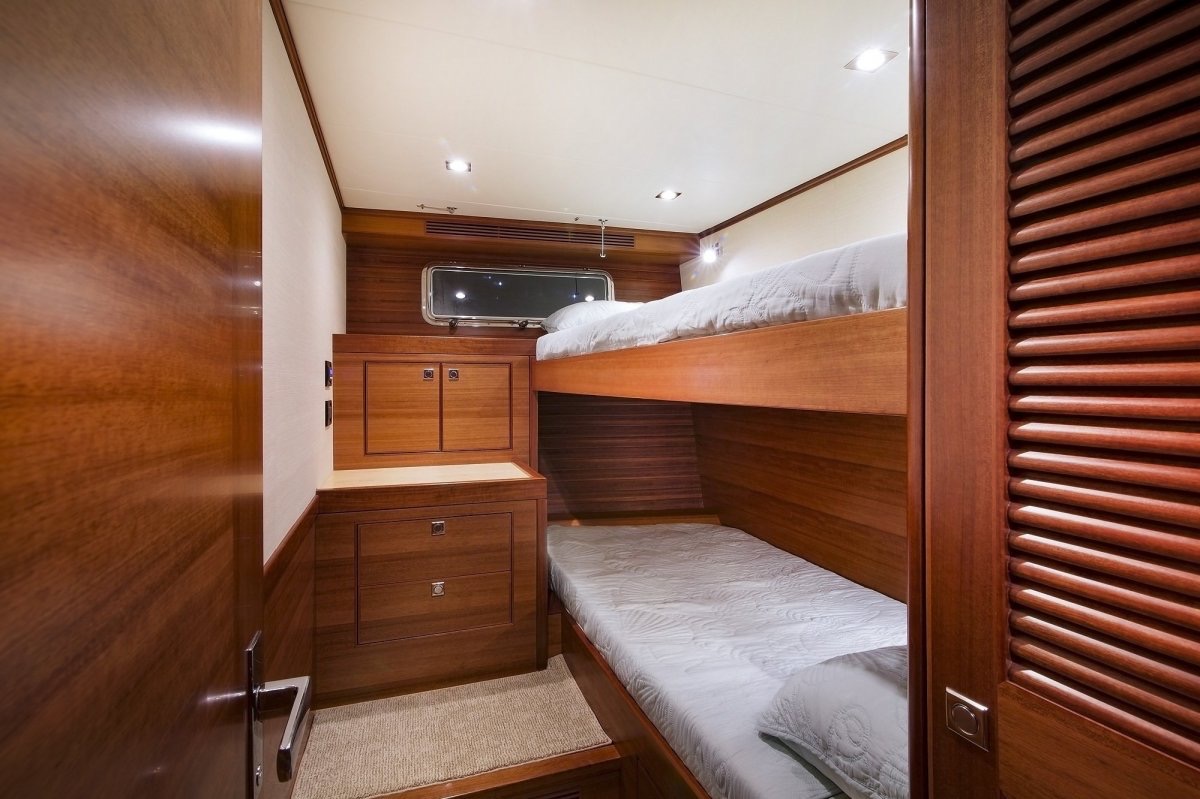

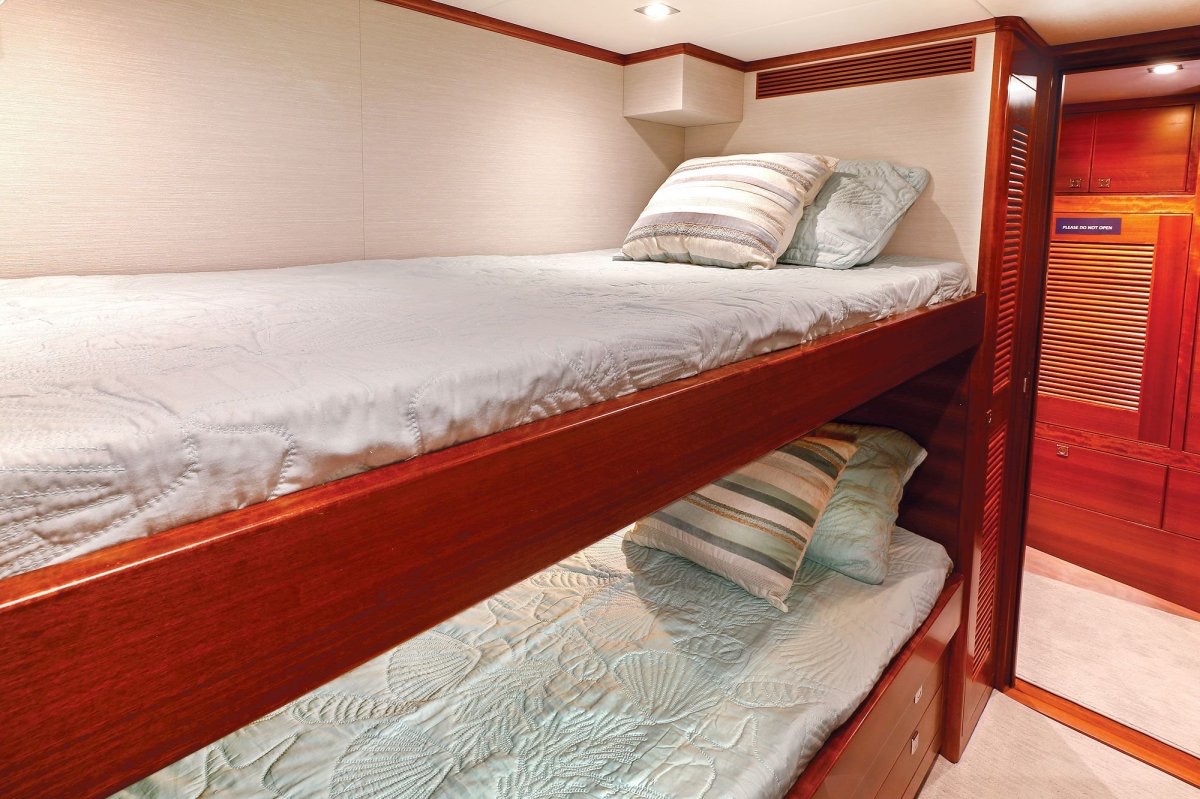

AccommodationA three-stateroom version is also available with upper and lower berths.
RefrigerationBosch stainless steel refrigerator/freezer
FreezerU-Line freezer in the laundry area

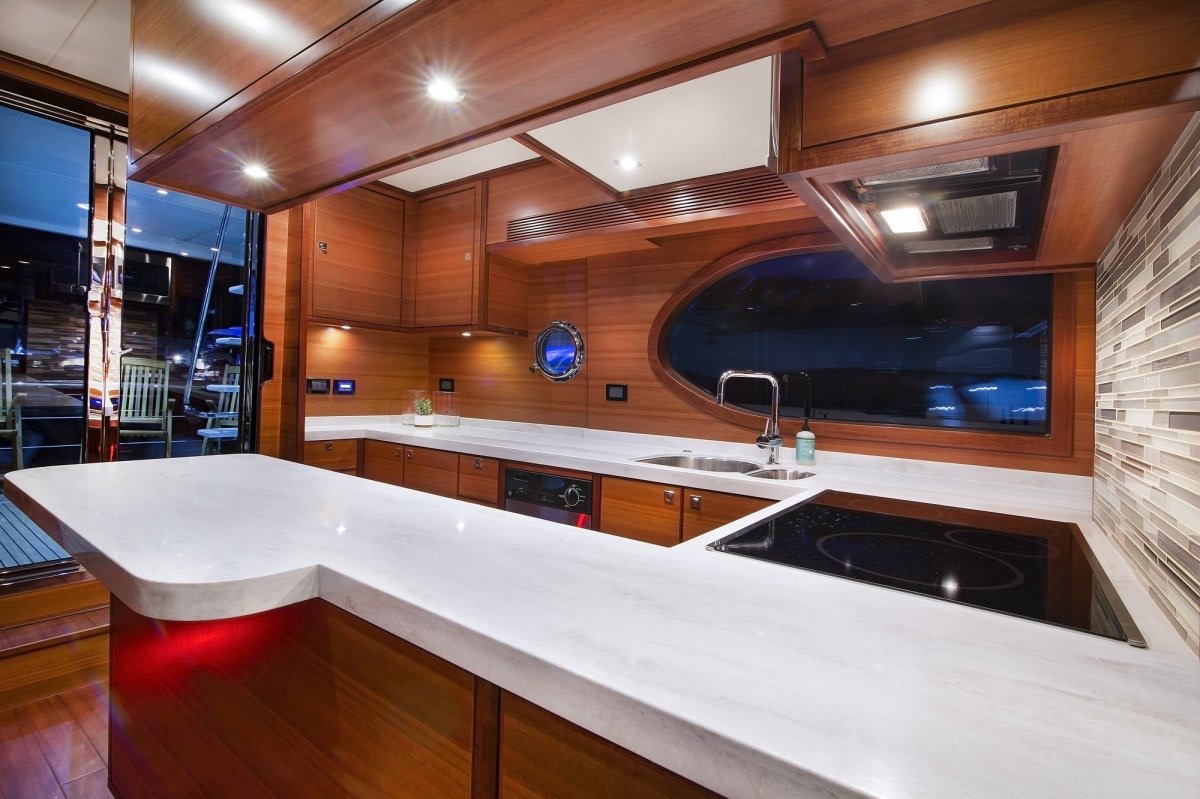

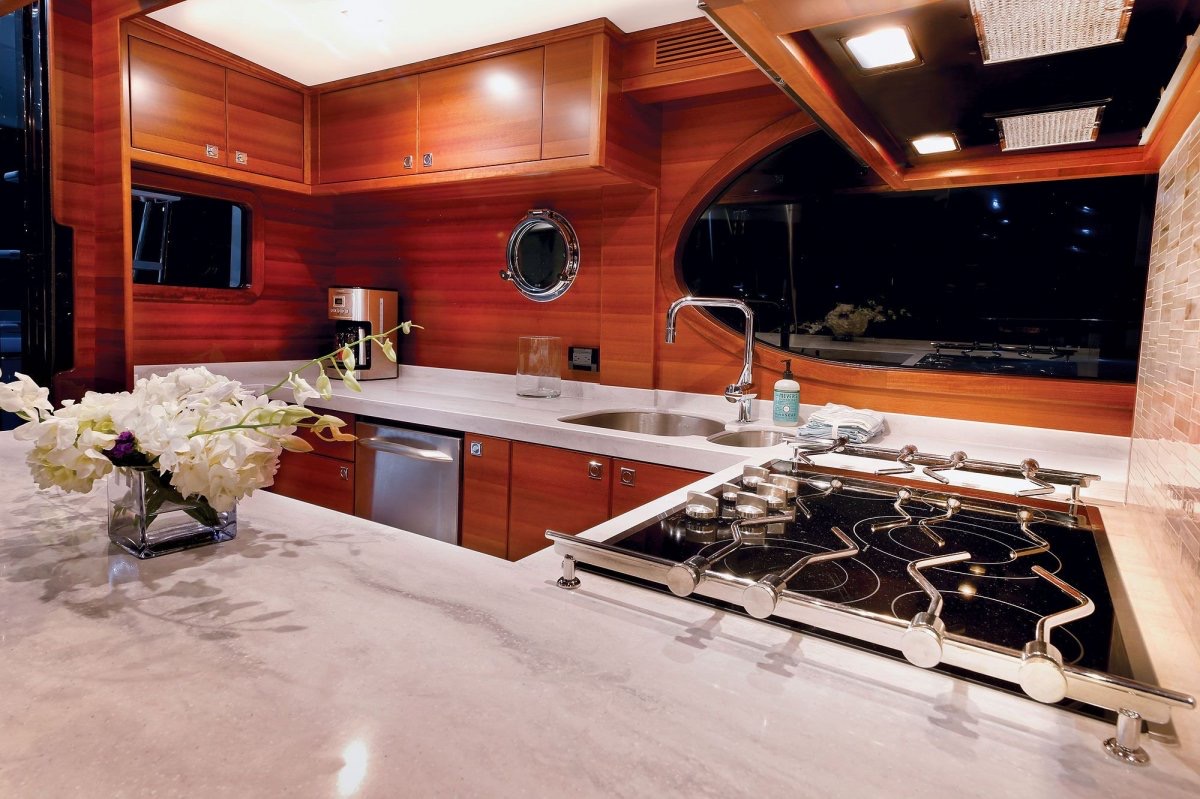

StoveGE Café Series electric induction cooktop

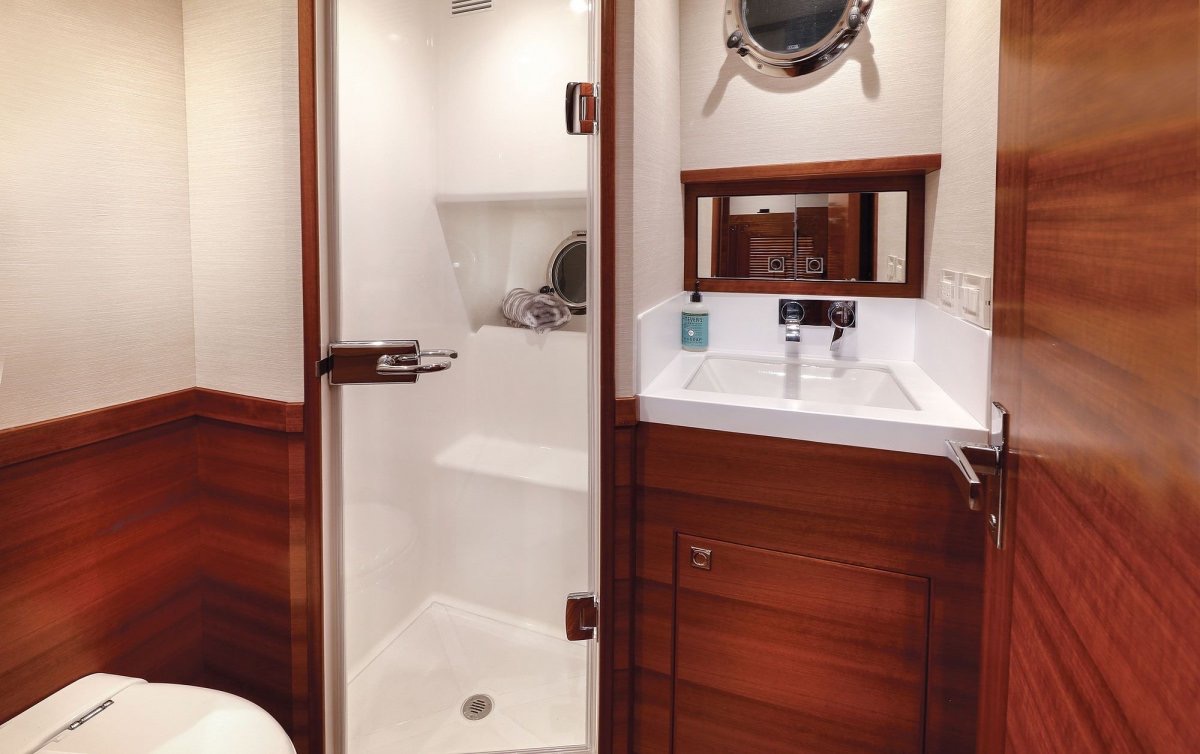

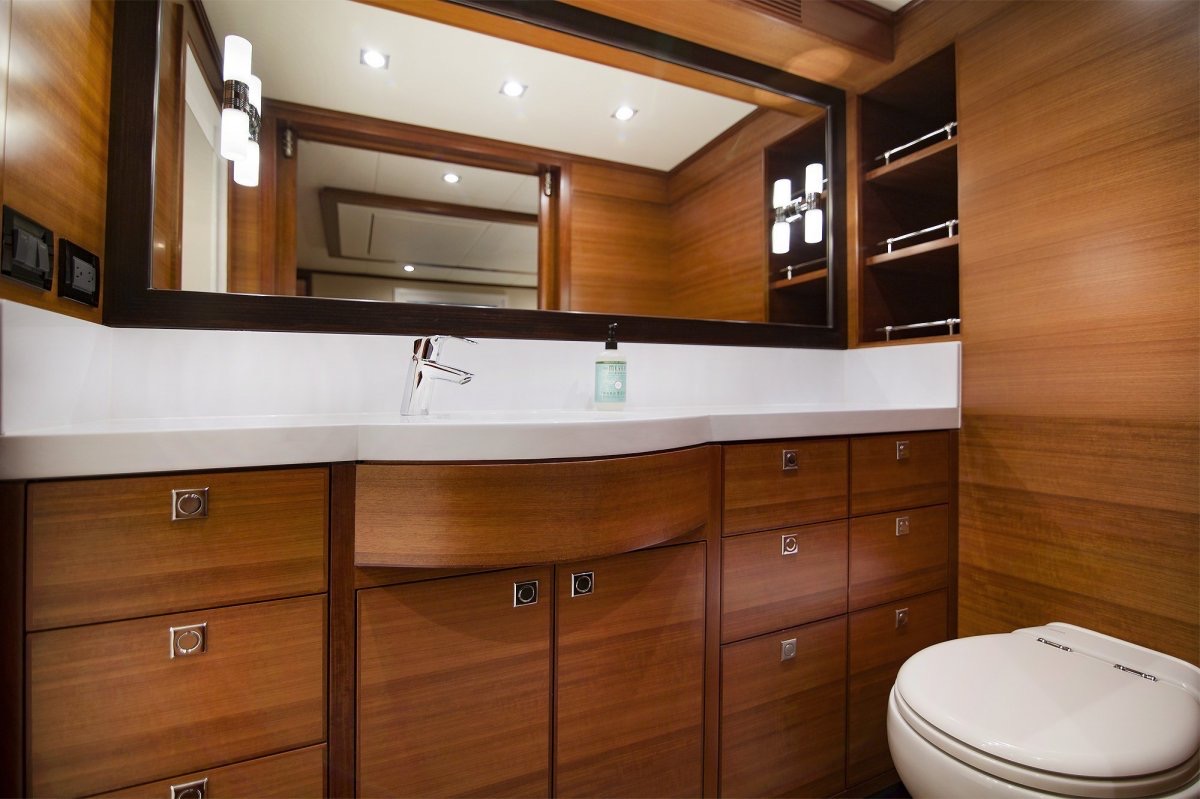

ShowerEnsuite showers in both staterooms
Toilet2
Air conditioningFull reverse cycle air conditioning and heating throughout
Tankage, deck and safety
Fuel capacity1,100 gallons / 4,164 litres
Water capacity444 gallons / 1,681 litres
Ground tackleMuir "Jaguar" 3500 lb windlass

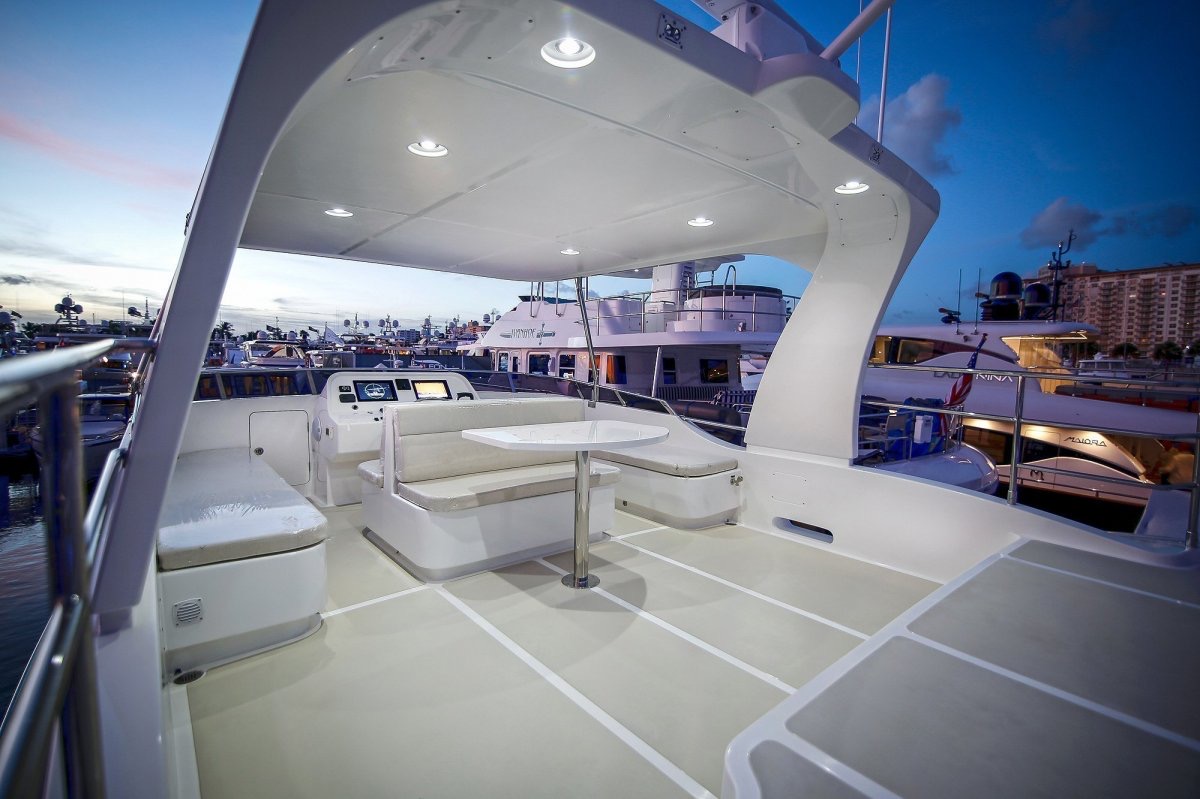

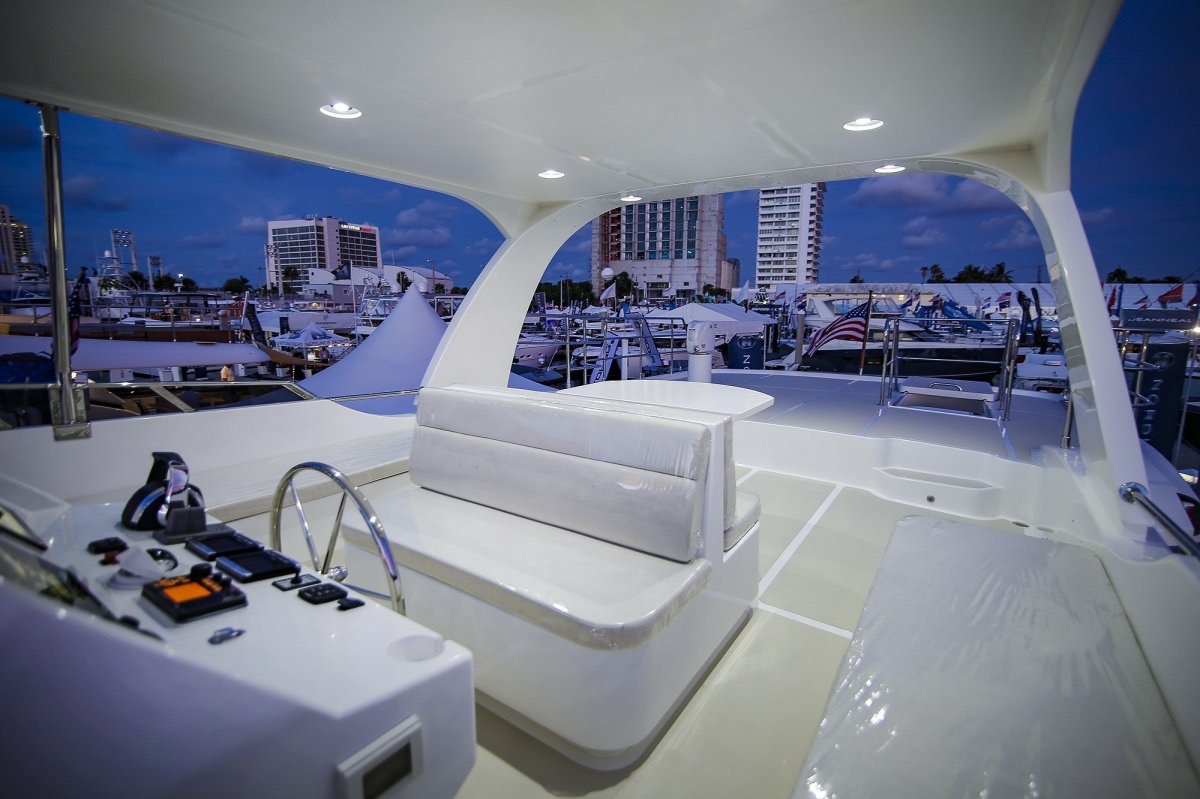

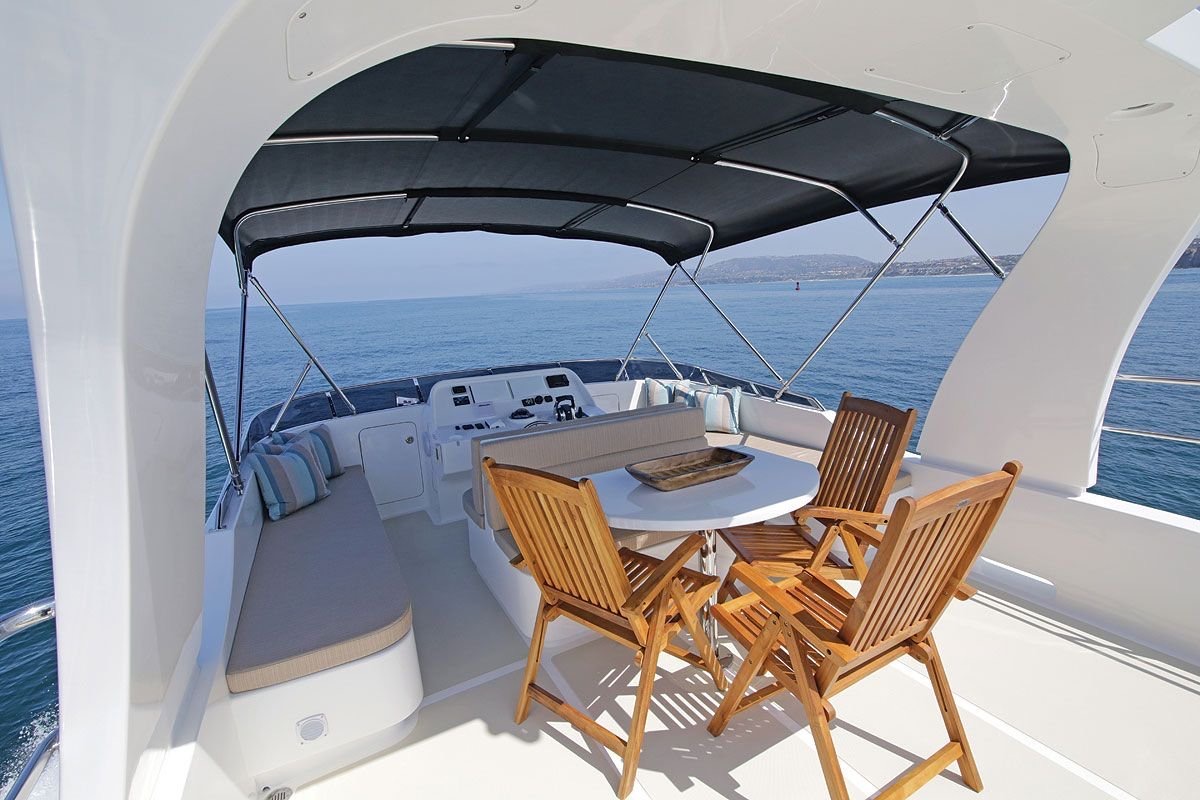

DinghySpace for 14-foot tender on flybridge
CoversCanvas and Isinglass enclosures available
Safety gearFull safety equipment available, including grab bags and life jackets
Bilge pumpsElectric and manual
Navigation and electrical
ElectronicsRaymarine navigation system, autopilot, and AIS.
Electrics120/240V AC system with a 24V DC house system. Includes eight Lifeline AGM batteries and a 3,500-watt inverter.
