Nordhavn 52
An extended-cockpit development of the Nordhavn 47, with greater fuel capacity and room for a larger tender.
Current model
Overview

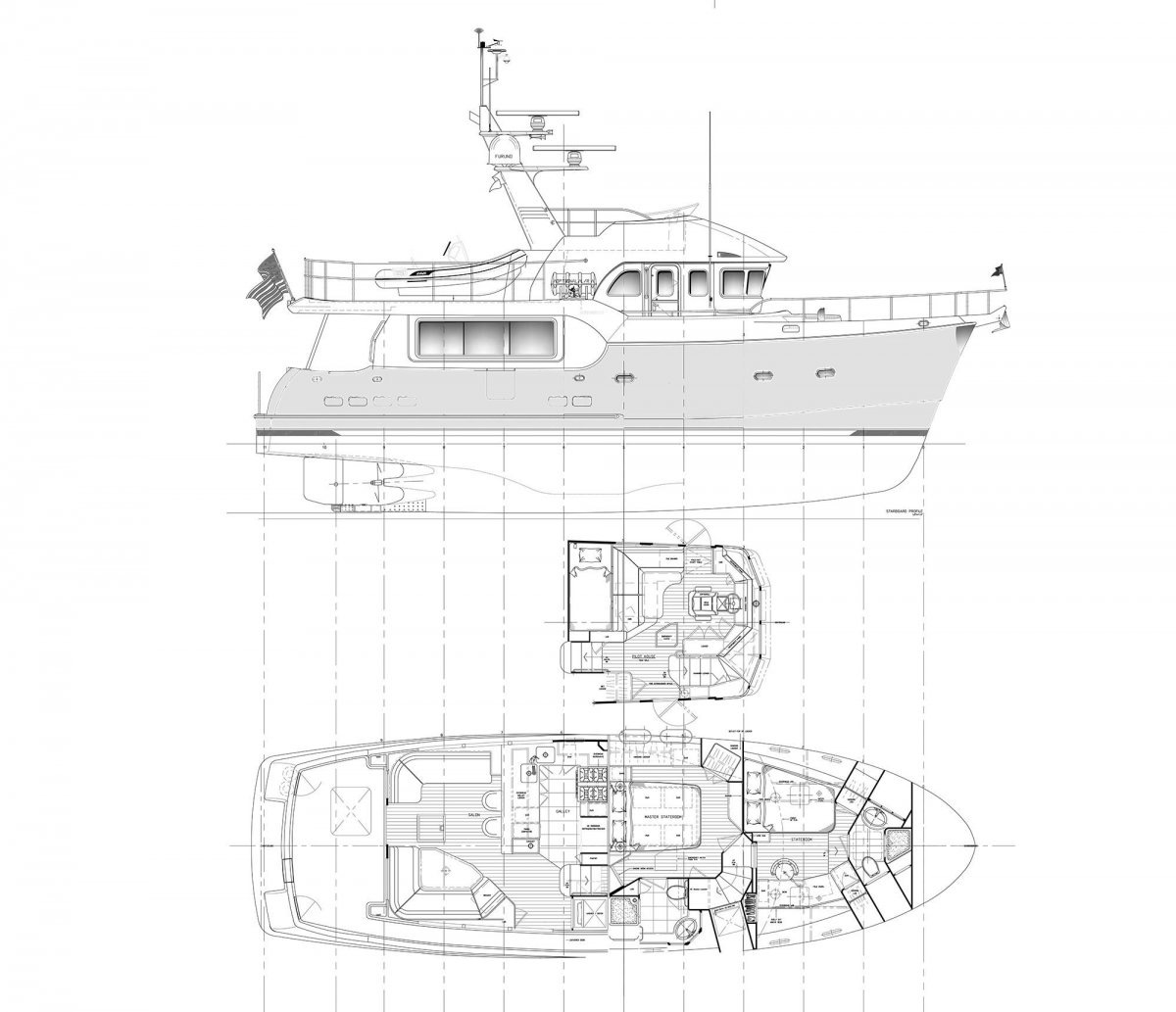

The 52 extends the Nordhavn 47 cockpit and waterline, opening the aft deck and increasing the published fuel capacity.

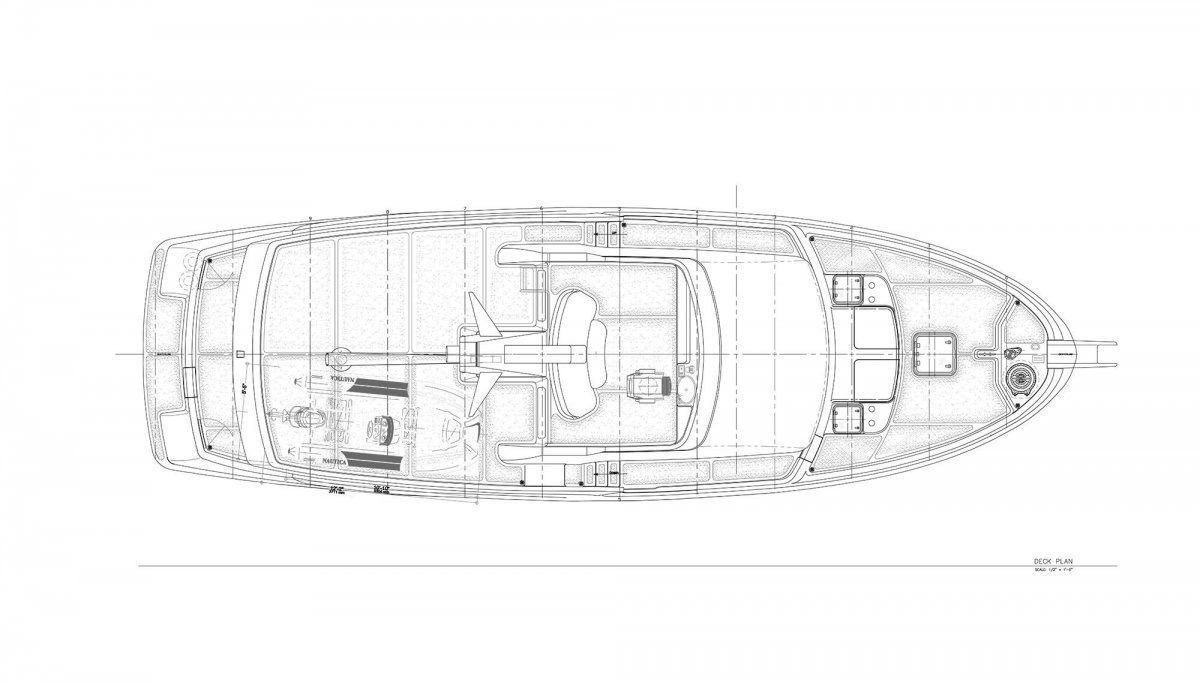

Its boat deck is also lengthened to carry a larger tender, while a revised flybridge brings the upper structure into the longer profile.
Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.
Nordhavn 52
Quick specifications
- Length overall
- 54' 4" / 16.56 M
- Waterline length
- 48' 3" / 14.71 M
- Beam
- 16' 1" / 4.9 M
- Draft
- 5' 11" / 1.8 M
- Displacement
- 90,000 lbs. / 40.82 MT
Nordhavn 52
Photos
15 photos.
1 / 15Nordhavn 52
Specifications
Confirm equipment and final build configuration with Nordhavn Australia.
Dimensions and construction
ModelNordhavn 52
Length16.56 m
Beam16' 1" / 4.9 m
Draft5' 11" / 1.8 m
Displacement90,000 lbs / 40.82 MT
DesignerNordhavn Yachts
BuilderNordhavn Yachts
Hull materialFibreglass/GRP
Propulsion and performance

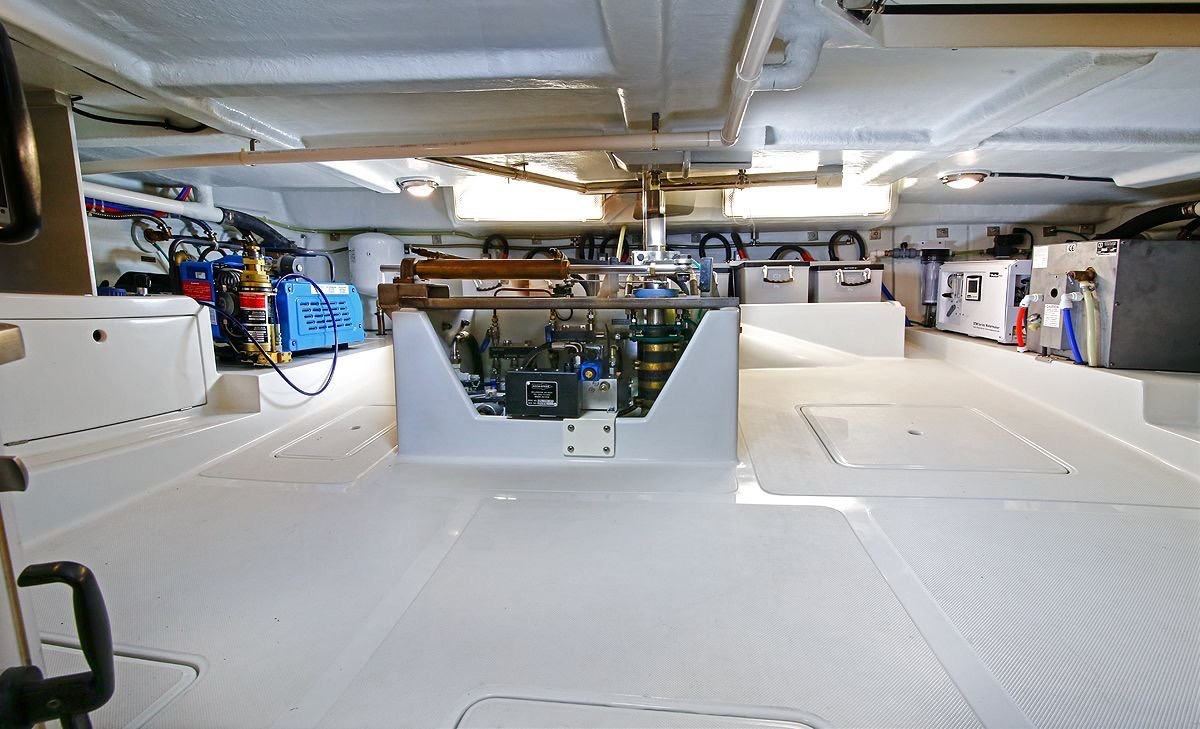

EngineMain engine: John Deere 6068AFM75 diesel
Power266 hp at 2,400 rpm
FuelDiesel
PropulsionSingle shaft, 4-bladed bronze propeller
Cruising speed7 knots
Maximum speed9 knots

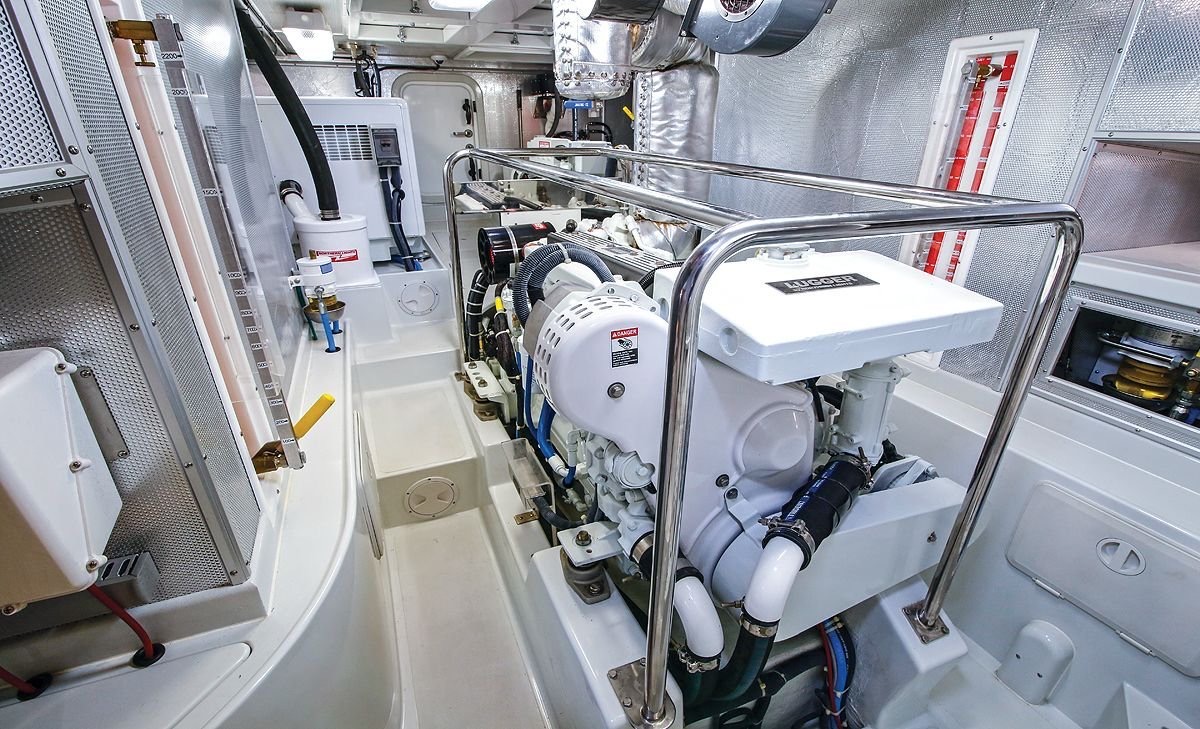

GeneratorNorthern Lights 12 kW
Accommodation and domestic systems

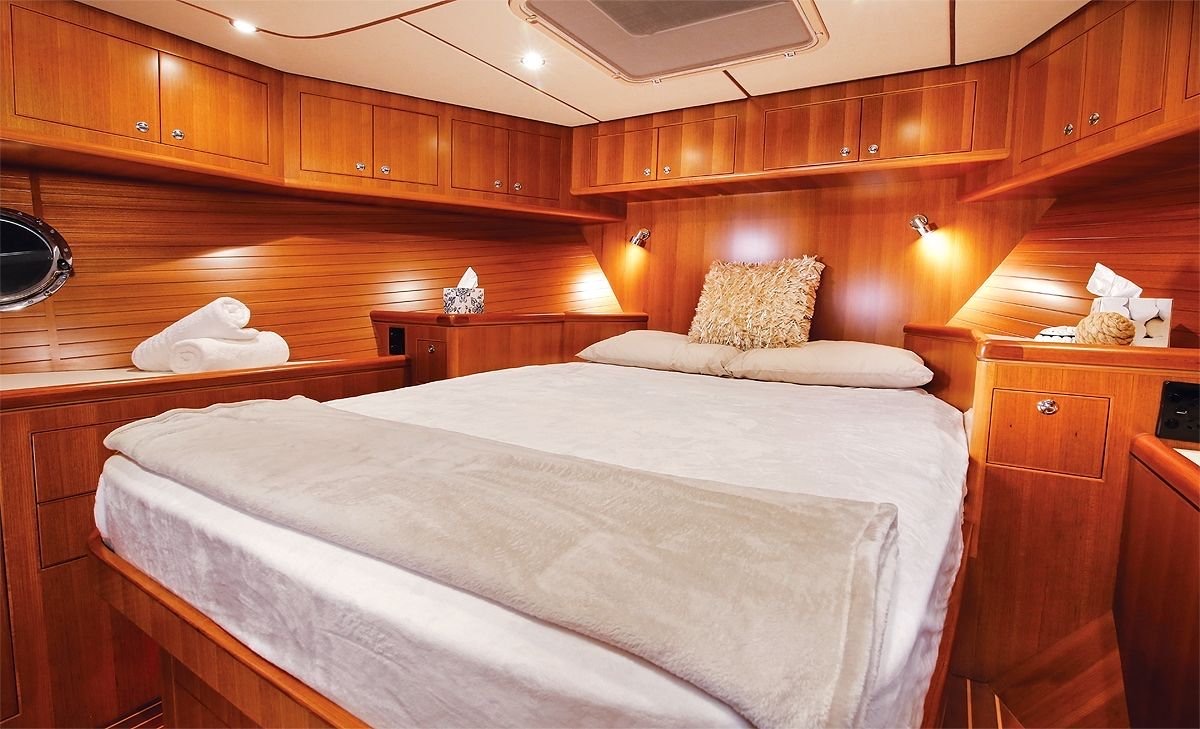

Cabins2
Berths4
RefrigerationSub Zero combo fridge/freezer
FreezerFisher Paykel

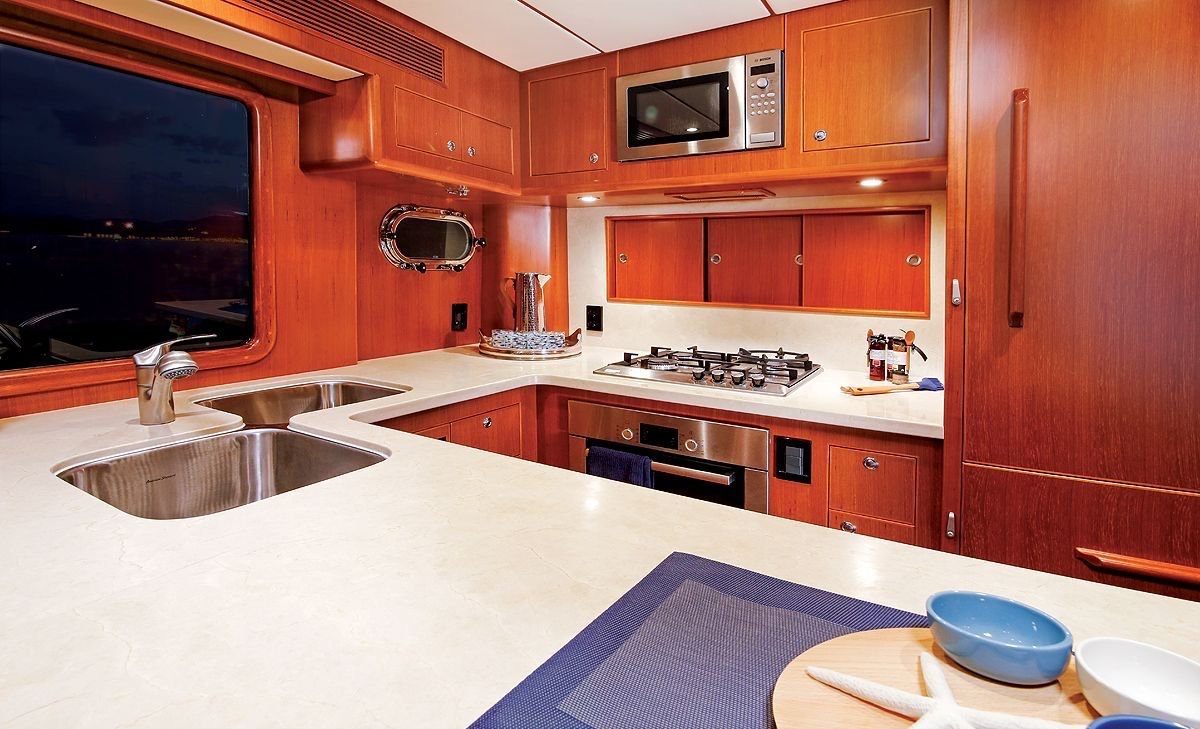

StoveFisher Paykel electric induction cooktop
ShowerEnsuite showers in both cabins
Toilet2, freshwater flush
Air conditioningFully air-conditioned throughout
Tankage, deck and safety
Fuel capacity1,740 gallons / 6,586 litres
Water capacity400 gallons / 1,514.2 litres
Ground tackleMaxwell 24V windlass
DinghySpace for a tender on extended boat deck
CoversFull canvas covers available for protection
Bilge pumpsElectric and manual
Life raft6-person life raft
Navigation and electrical

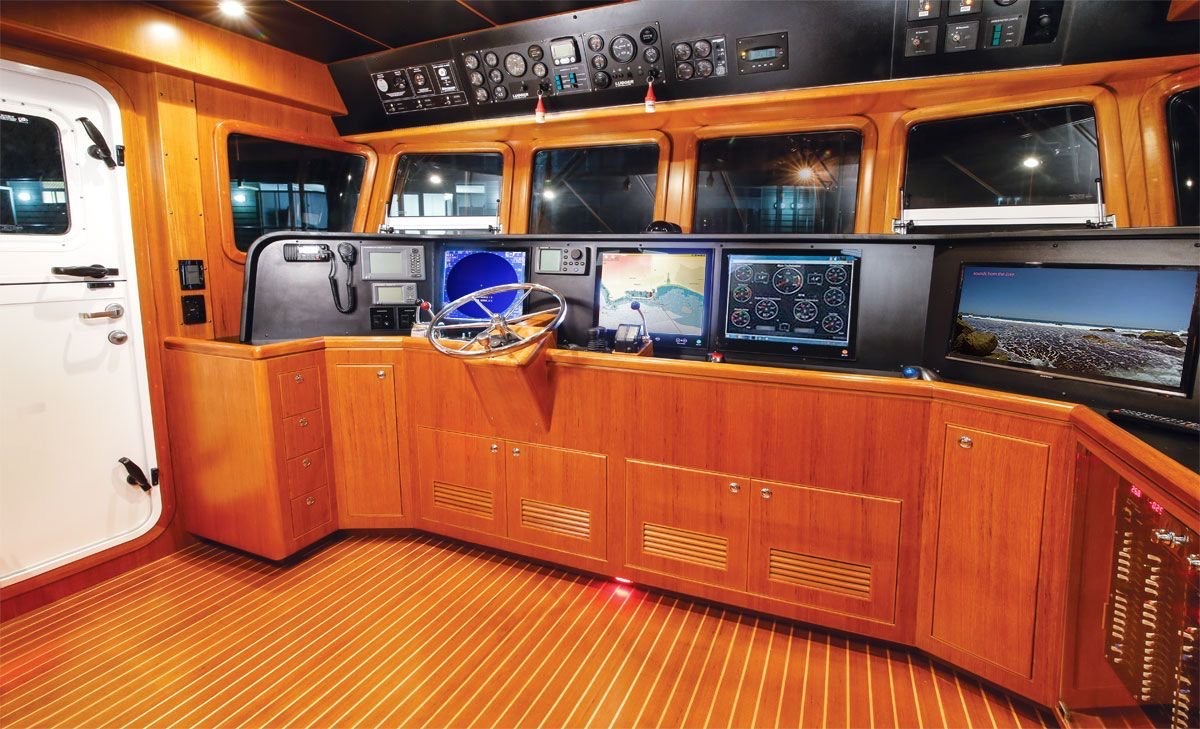

ElectronicsRaymarine GPS, radar, AIS, and autopilot systems for navigation support.
Electrics24V electrical system with 3.5 kW inverter and dual alternators for battery charging. Shore power options include 120V/240V inputs.
