Nordhavn 46MK II

A modern twin engine return to the Nordhavn 46 brief, with a new underbody, larger tanks and updated onboard systems.

Current model

Overview

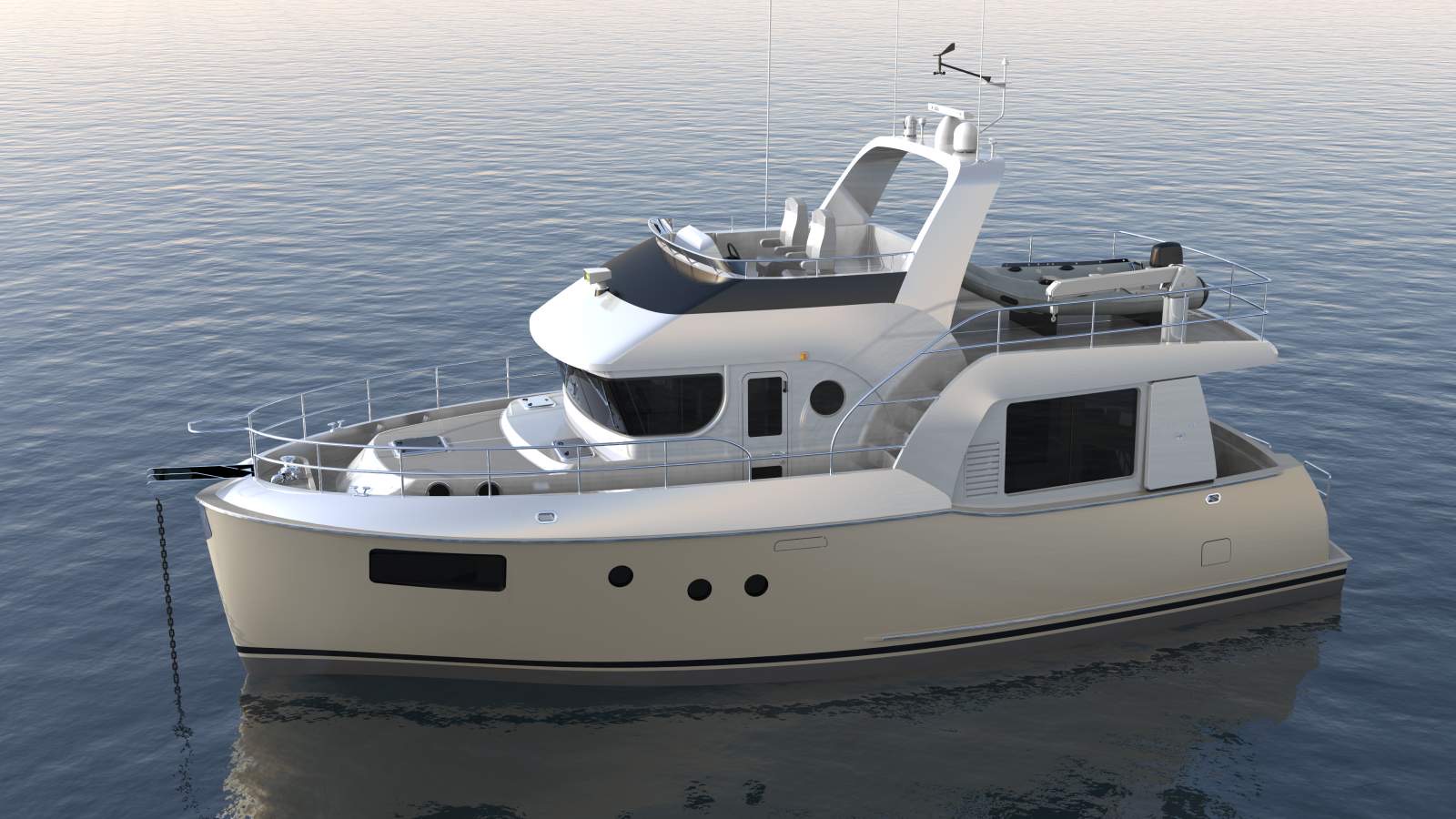

The 46MK II returns to the couple-operated passagemaker brief established by the original Nordhavn 46, but uses a completely new design.

Twin engines, a redesigned underbody, a near walk-in engine room and fuel capacity more than 30 per cent greater than the original are central to the update.

Factory specifications can change during a build programme. Confirm the final configuration with Nordhavn Australia.

Nordhavn 46MK II

Quick specifications

Length overall
46' 3" / 14.10 M
Waterline length
44' 7" / 13.59 M
Beam
15' 9.5 in / 4.81 M
Draft
4' 9" / 1.45 M
Displacement
57,498 LBS / 26.14 MT

Nordhavn 46MK II

Photos

25 photos.

Nordhavn 46MK II, image 11 / 25

1 / 25

Nordhavn 46MK II, image 1

Nordhavn 46MK II

Specifications

Confirm equipment and final build configuration with Nordhavn Australia.

Dimensions and construction
ModelNordhavn 46MK II
Length14.1 m
Beam4.81 m / 15 ft 9.5 in
Draft1.45 m / 4 ft 9 in
Displacement26.14 t / 57,498 lb
DesignerJeff Leishman
BuilderNordhavn
Hull materialComposite
Deck materialTeak
Propulsion and performance
EngineTwin Nanni N4.140 diesels
Power135 bhp each at 2,600 rpm
FuelDiesel
PropulsionTwin shaft drive diesel with reduction gear
Thrusters13.5 hp Side-Power bow thruster
GeneratorNanni Q1100 11 kW (9.6 kW 50 Hz)
Accommodation and domestic systems
Cabins2
Berths4

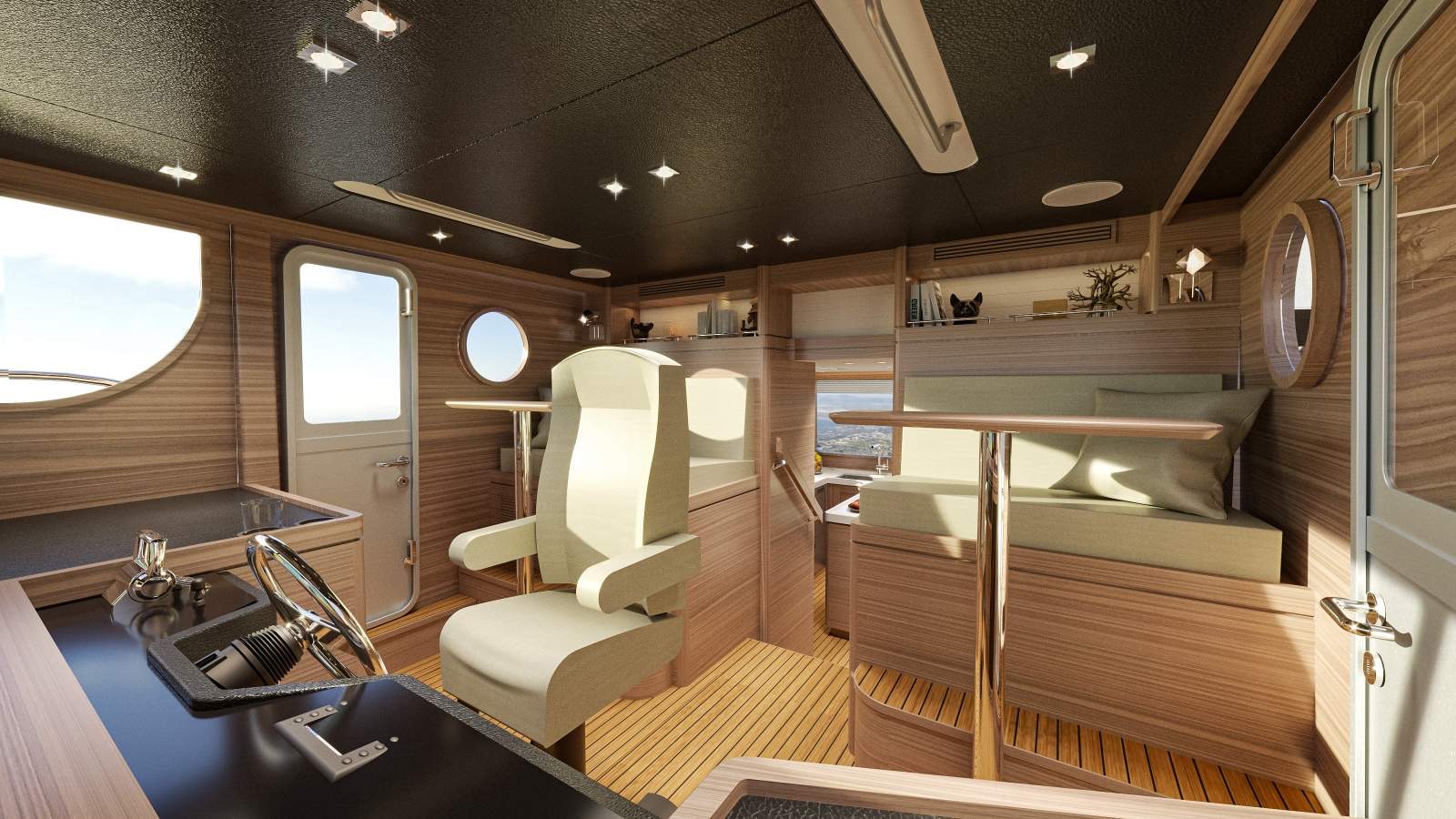

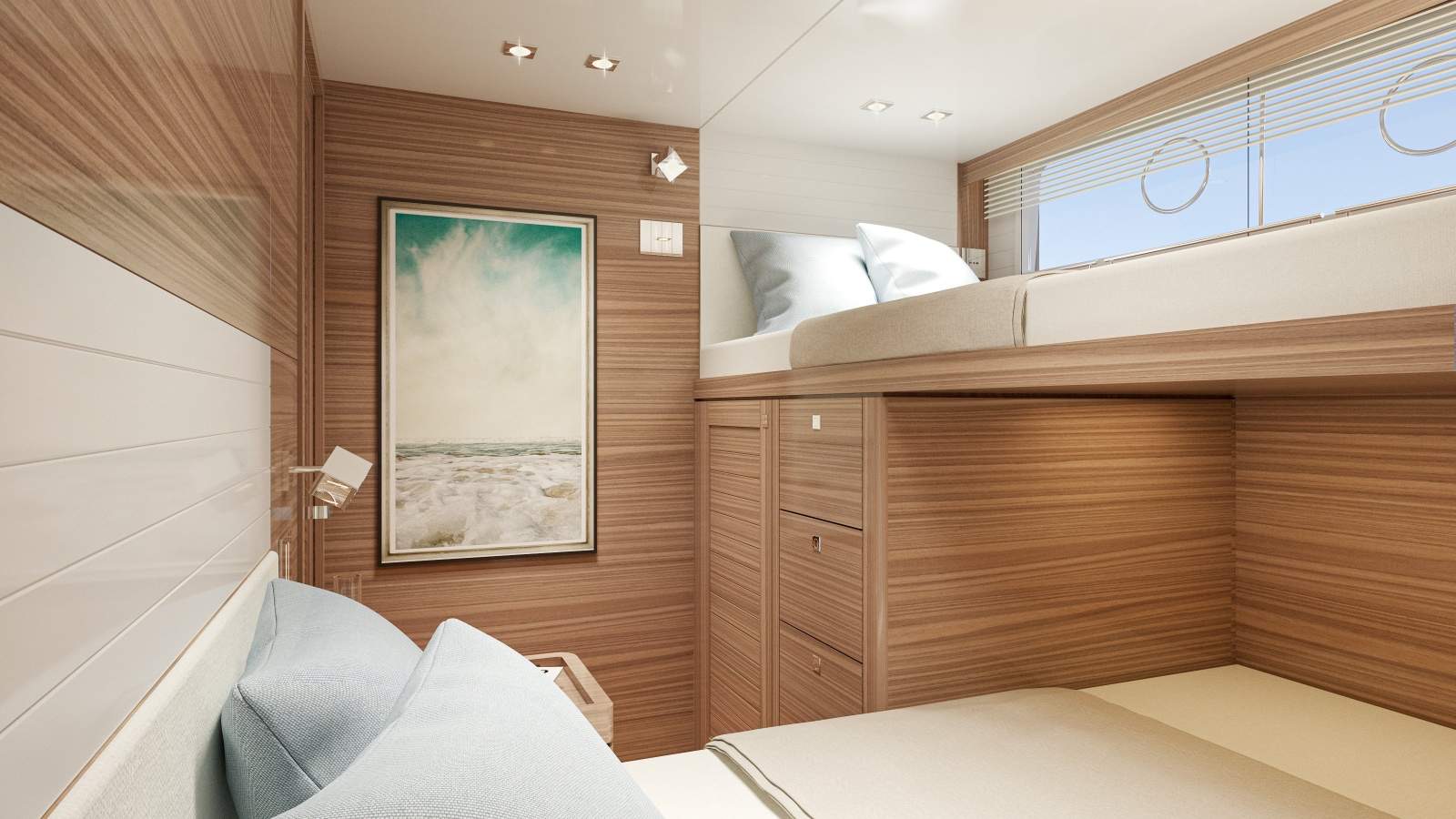

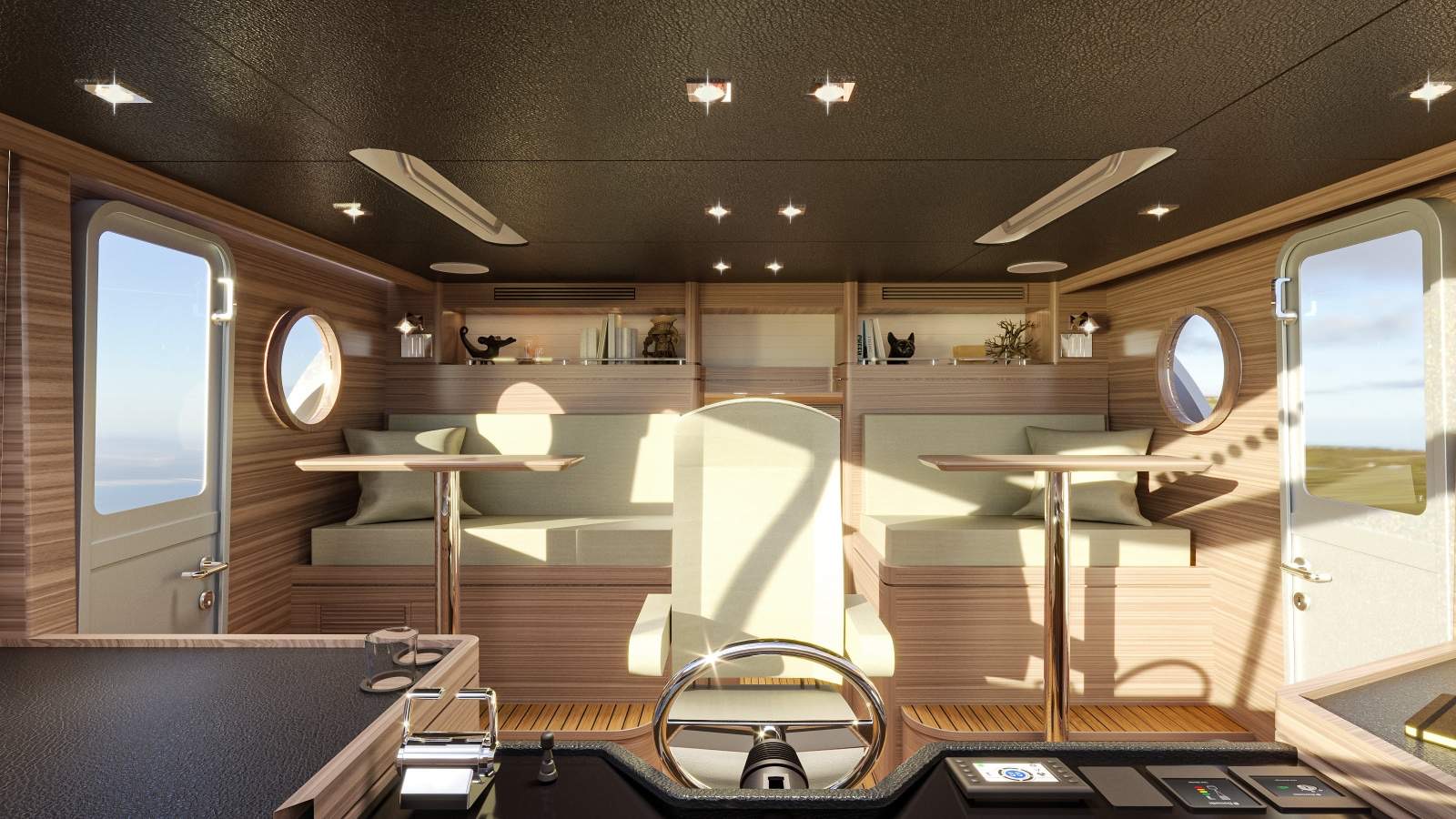

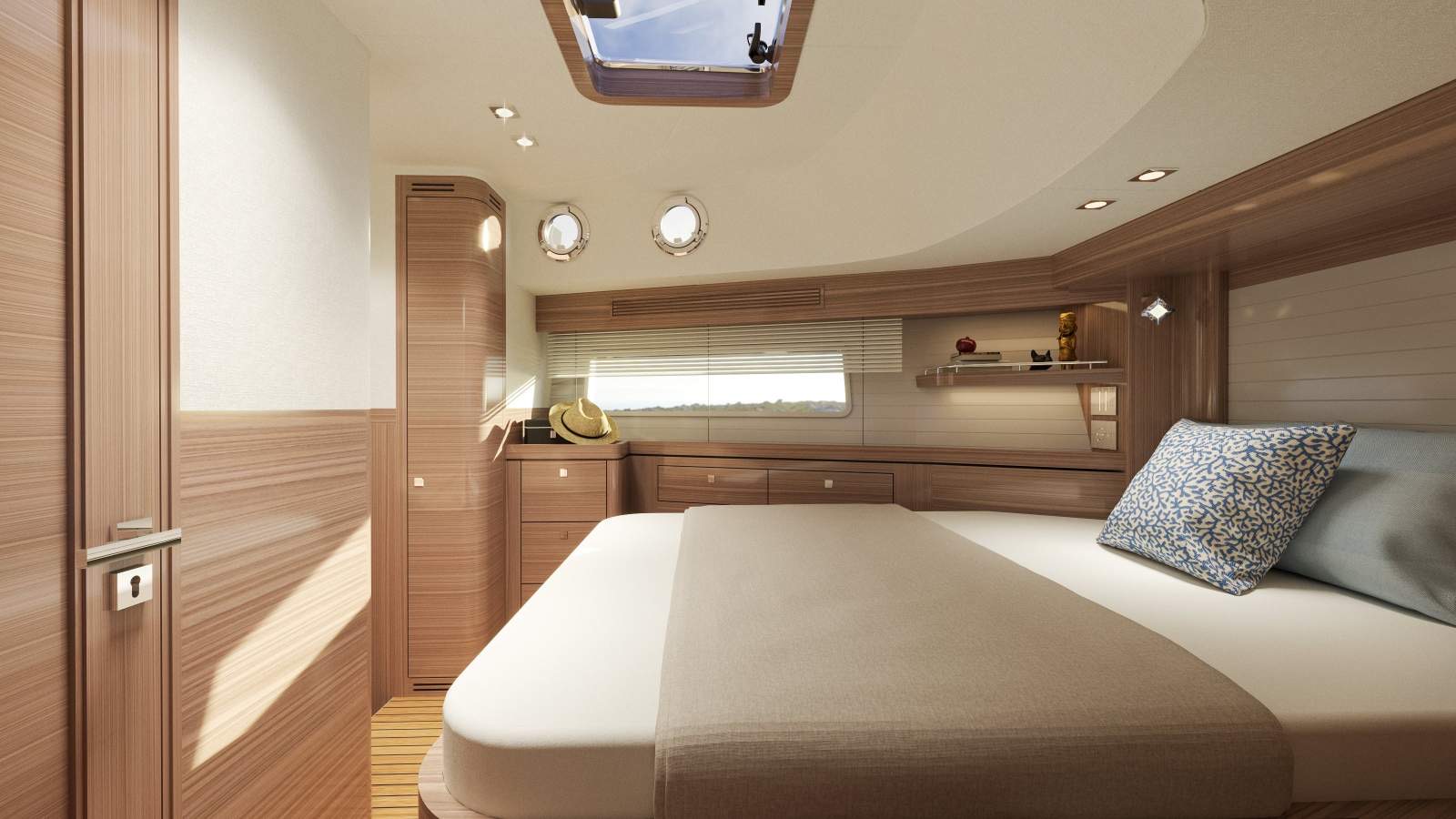

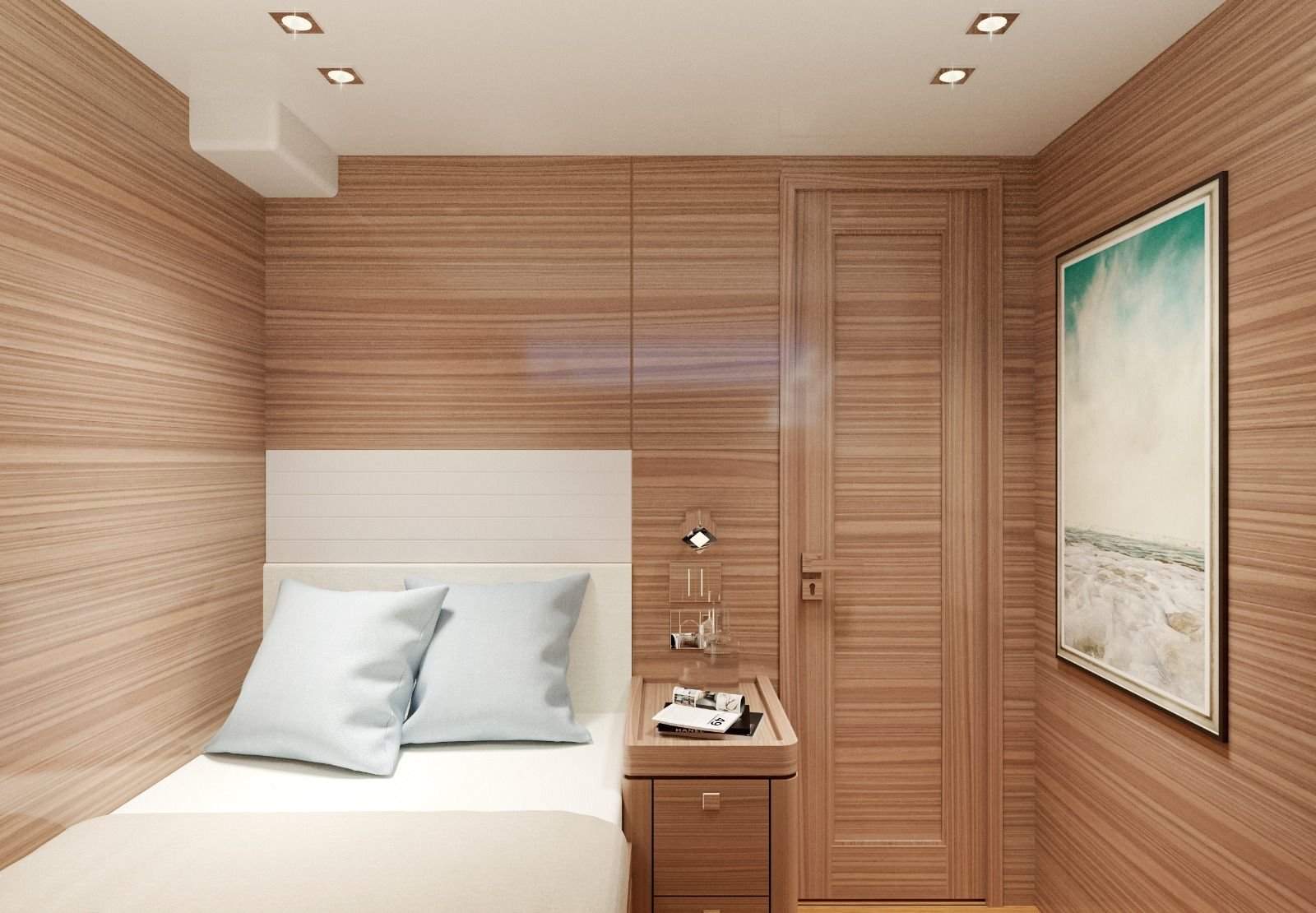

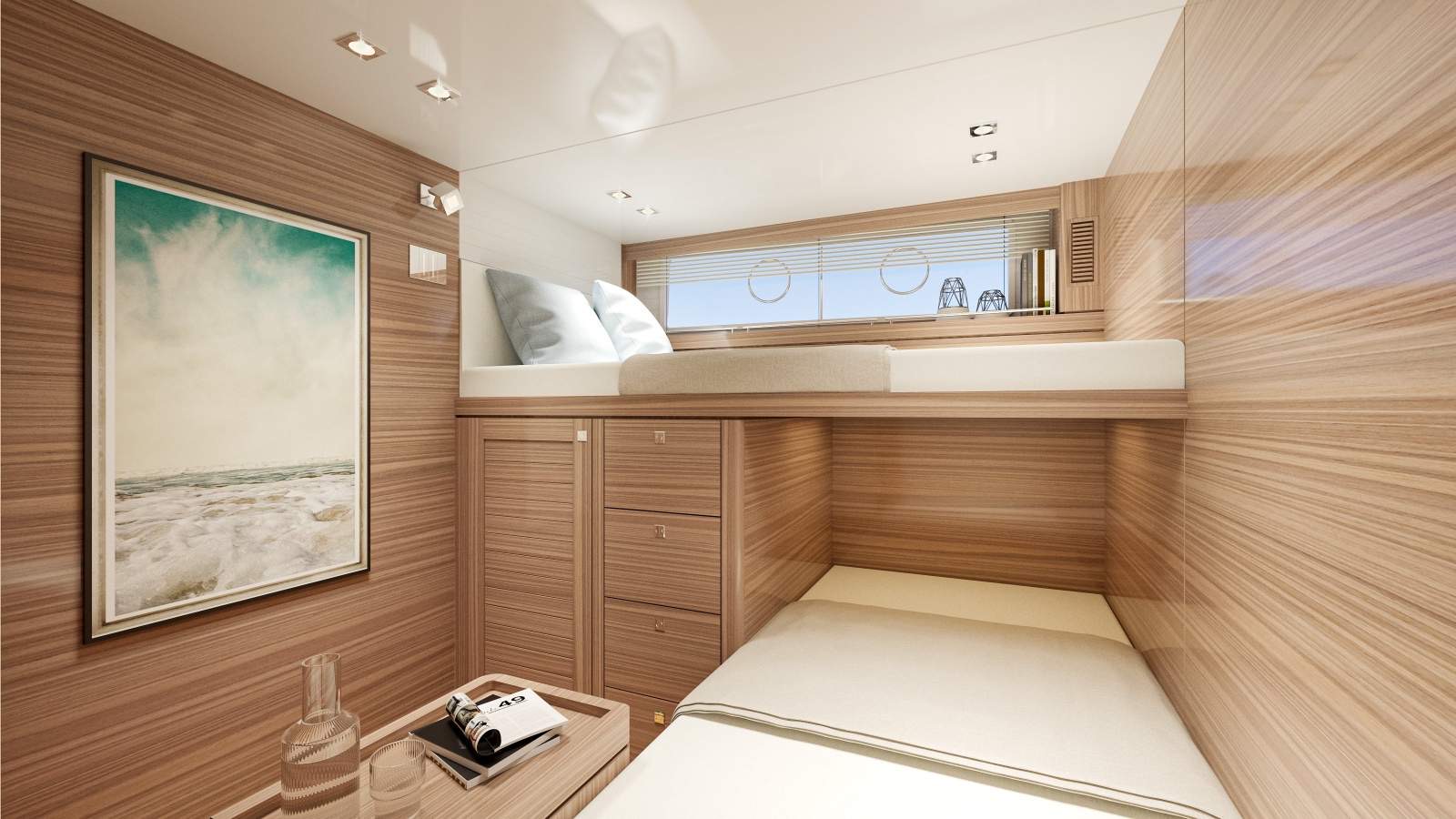

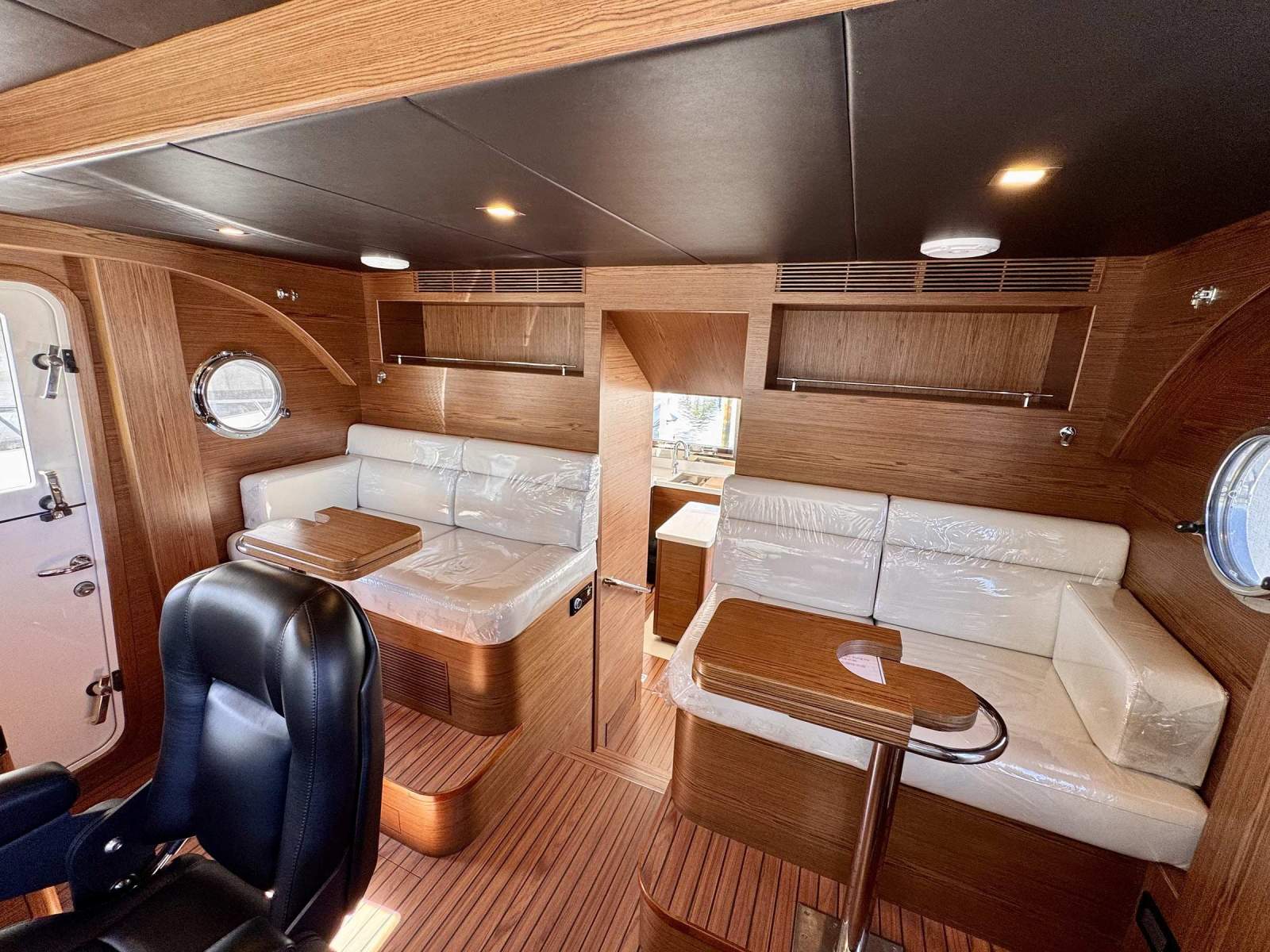

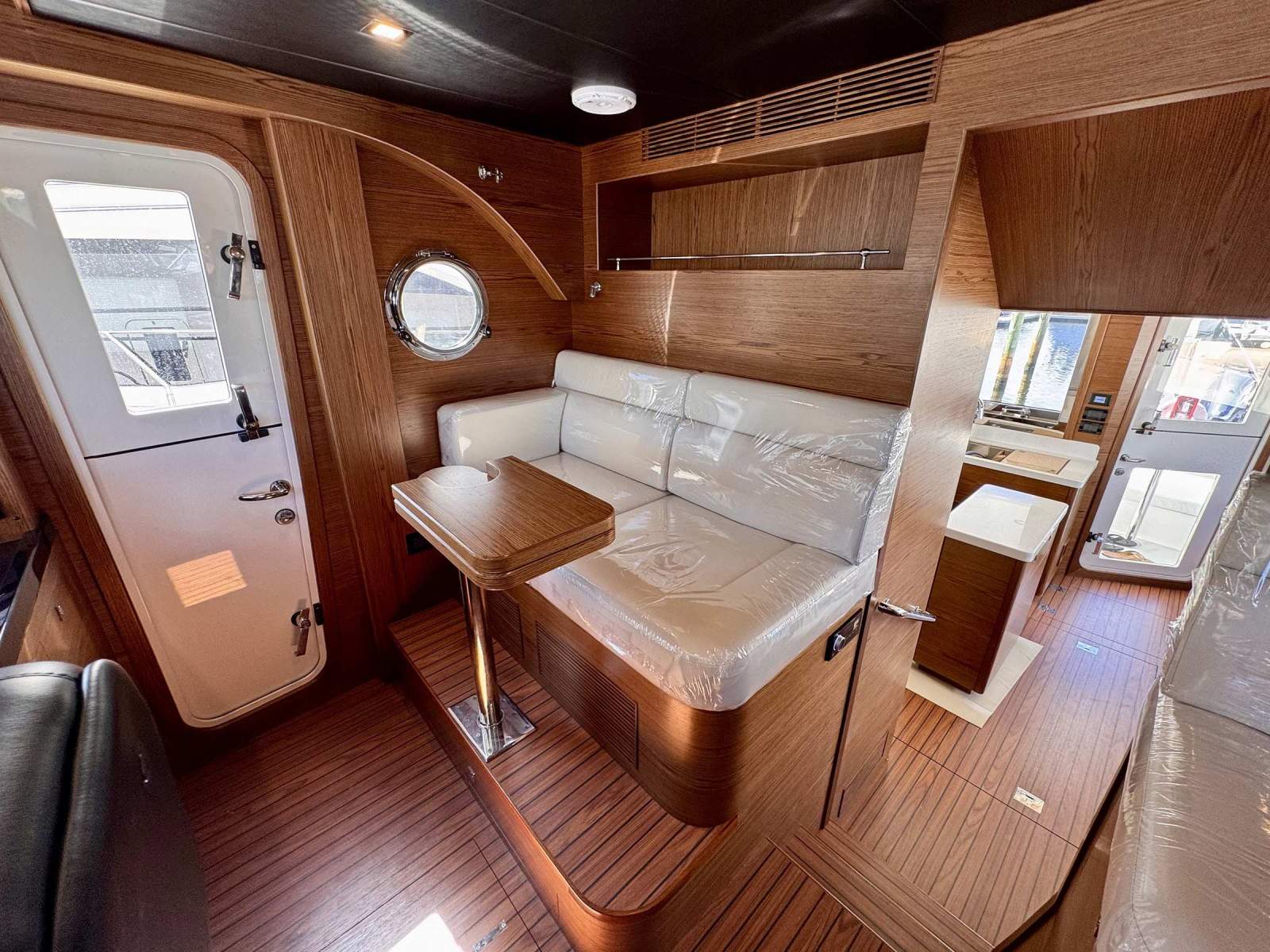

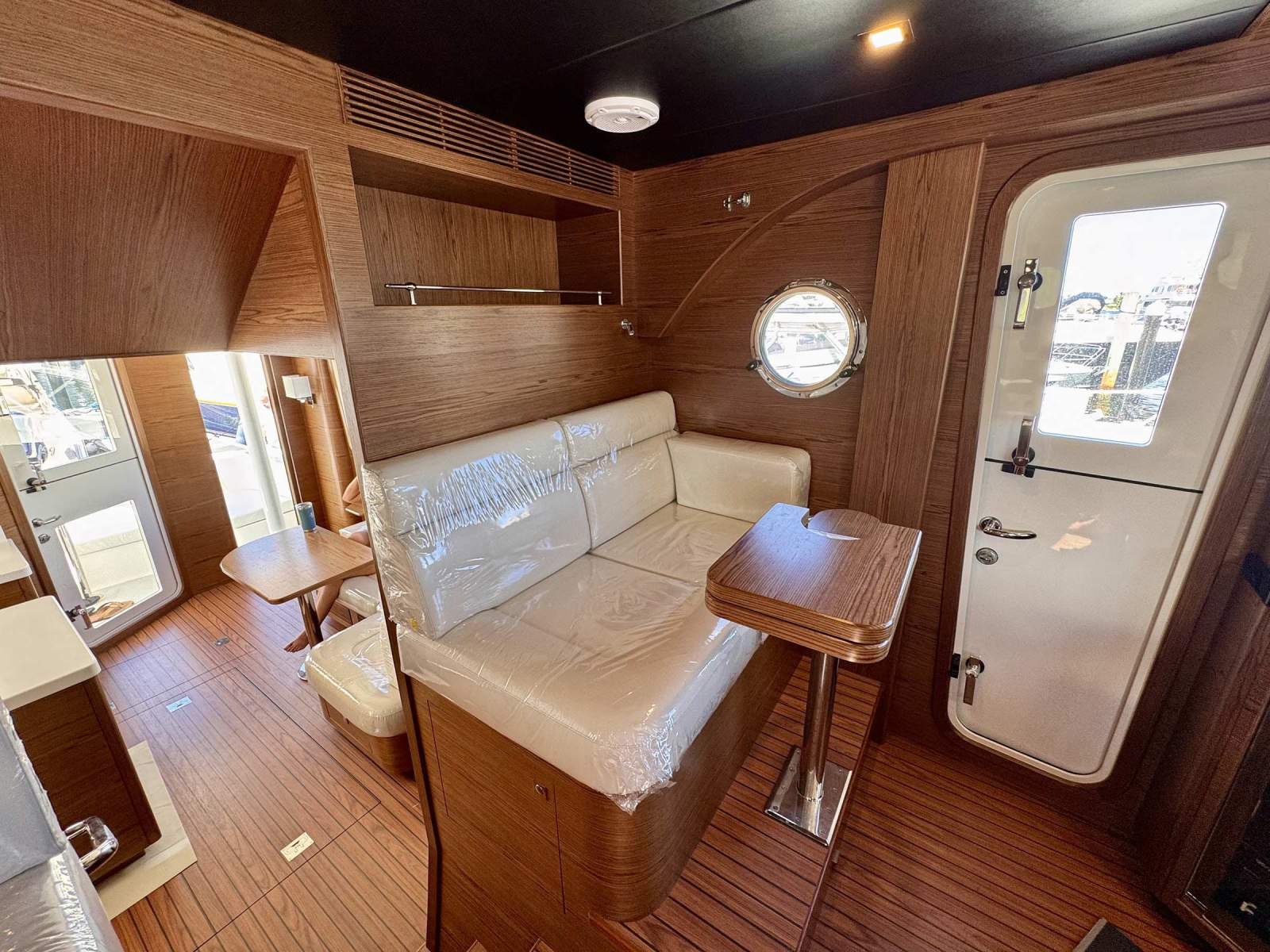

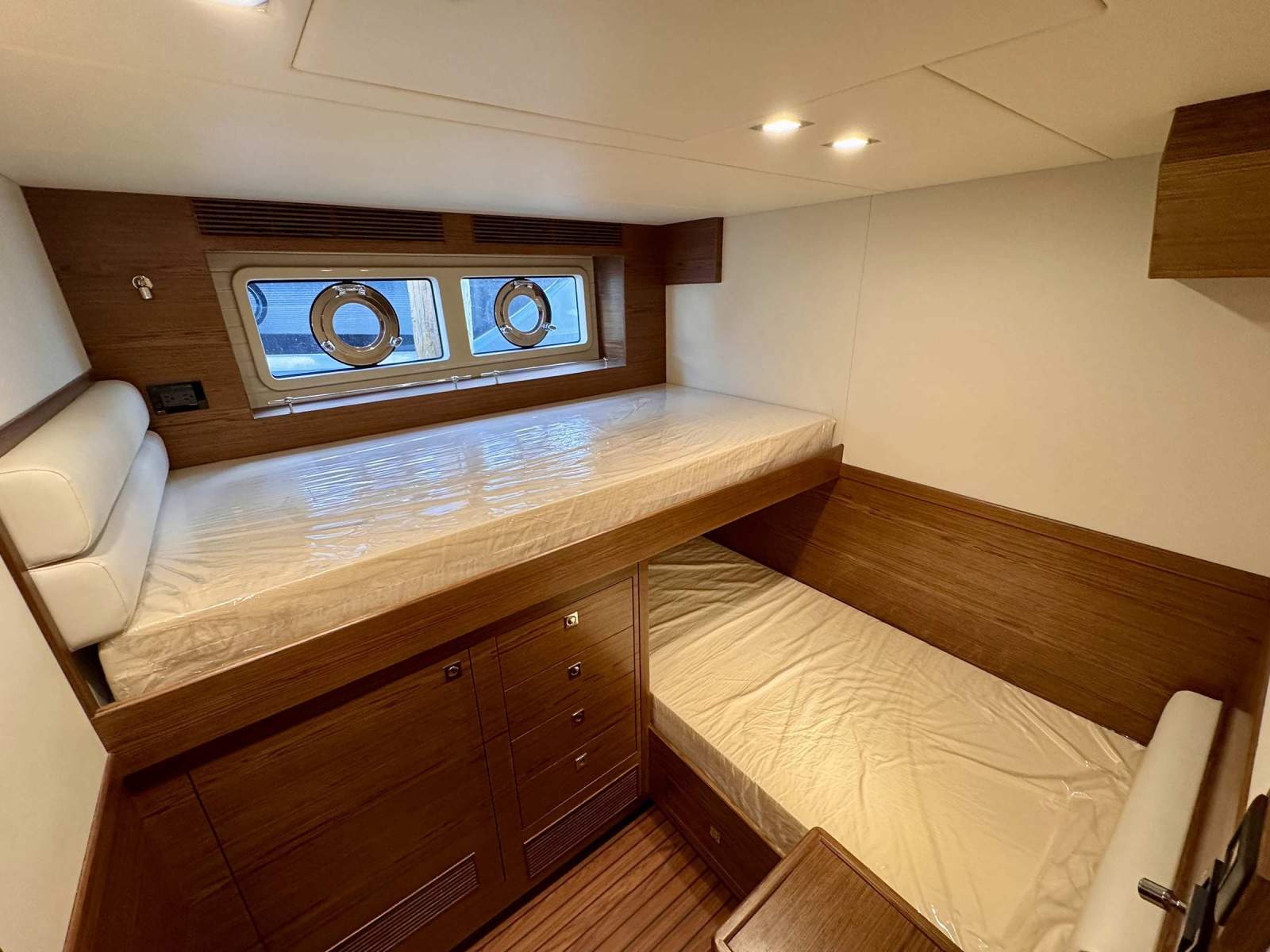

AccommodationThe master stateroom sits forward with a walk-around berth and ensuite, while the guest twin cabin lies amidships with its own head and shower. The pilothouse includes a watch berth for extended passages

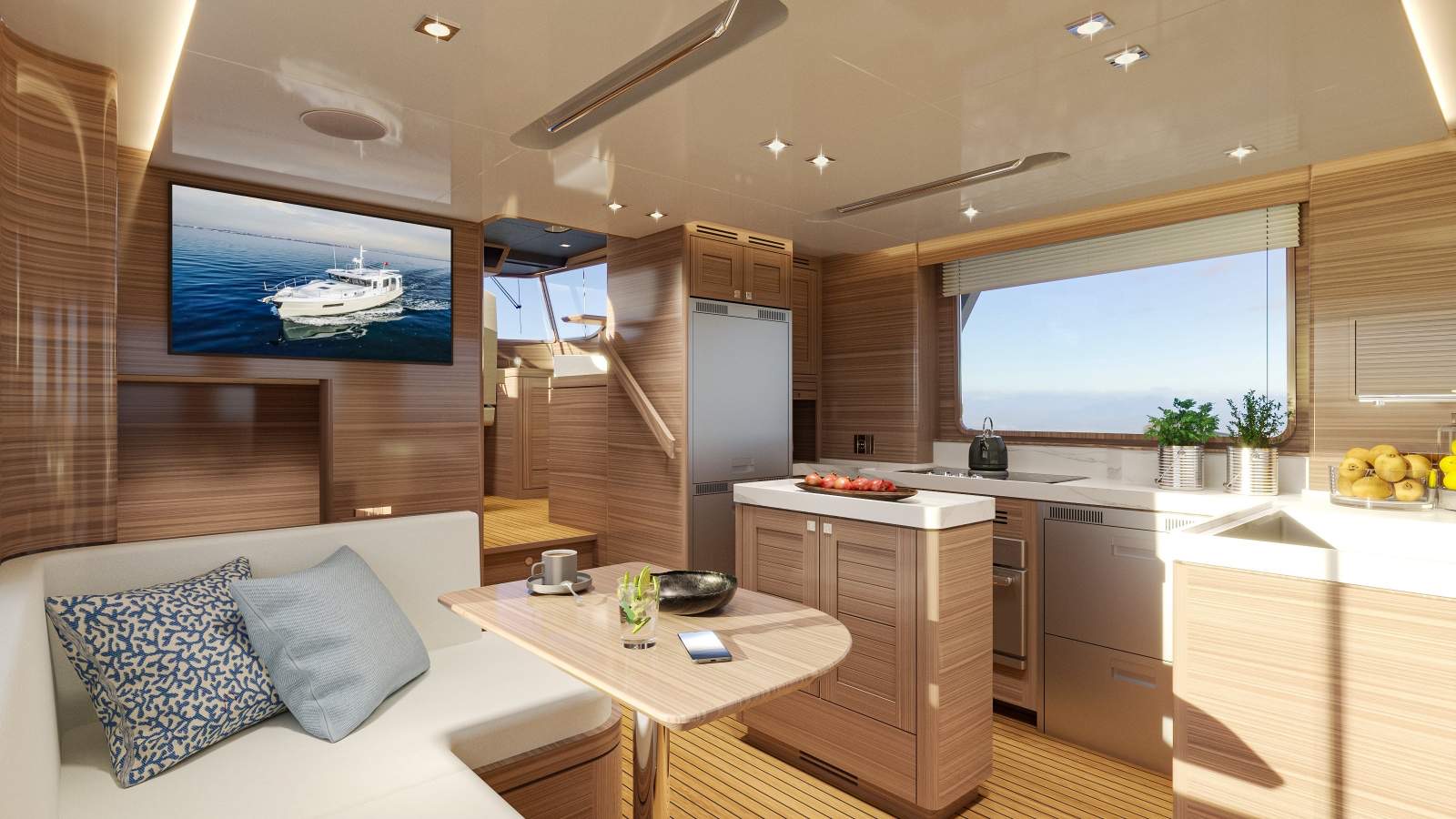

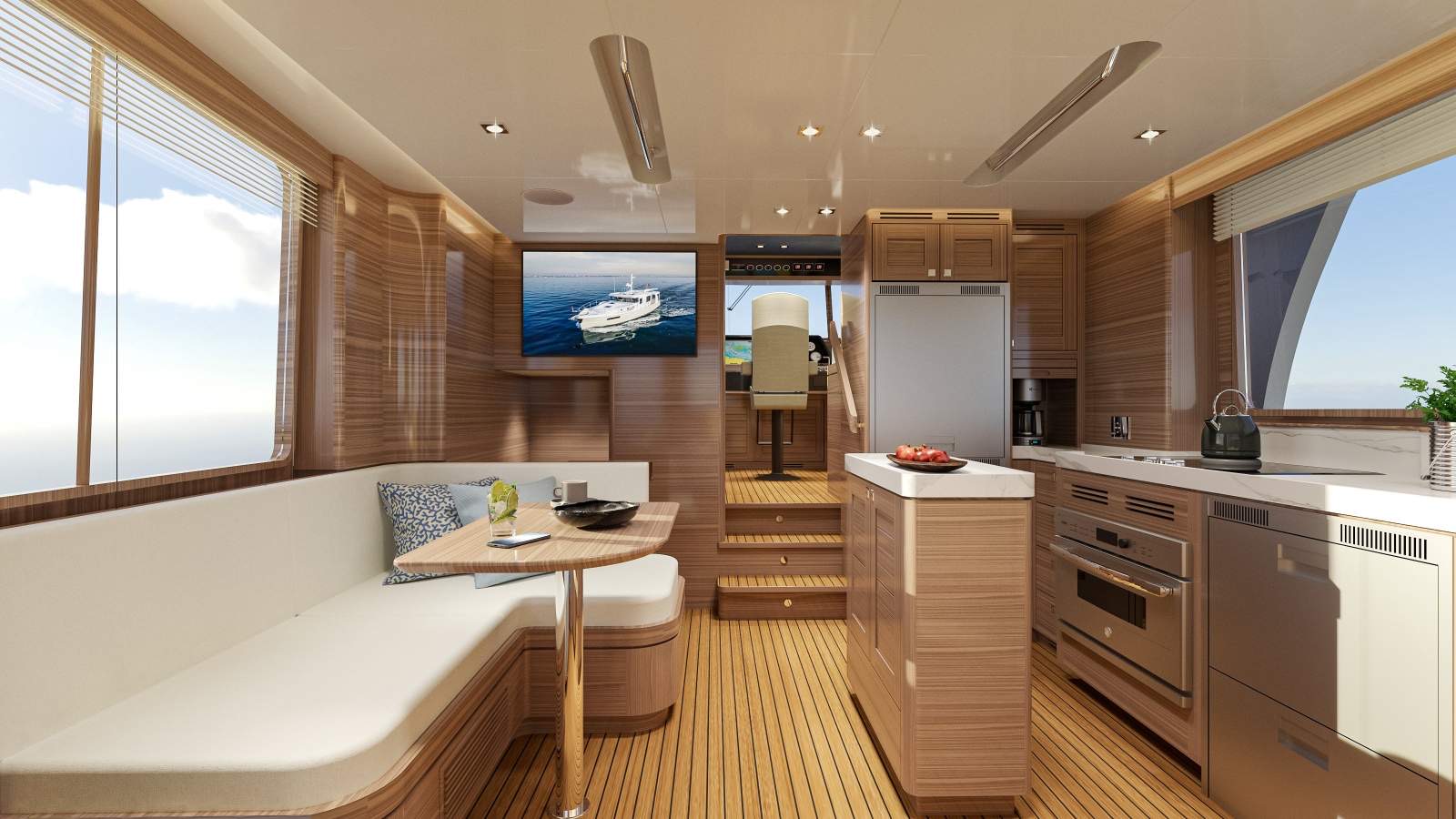

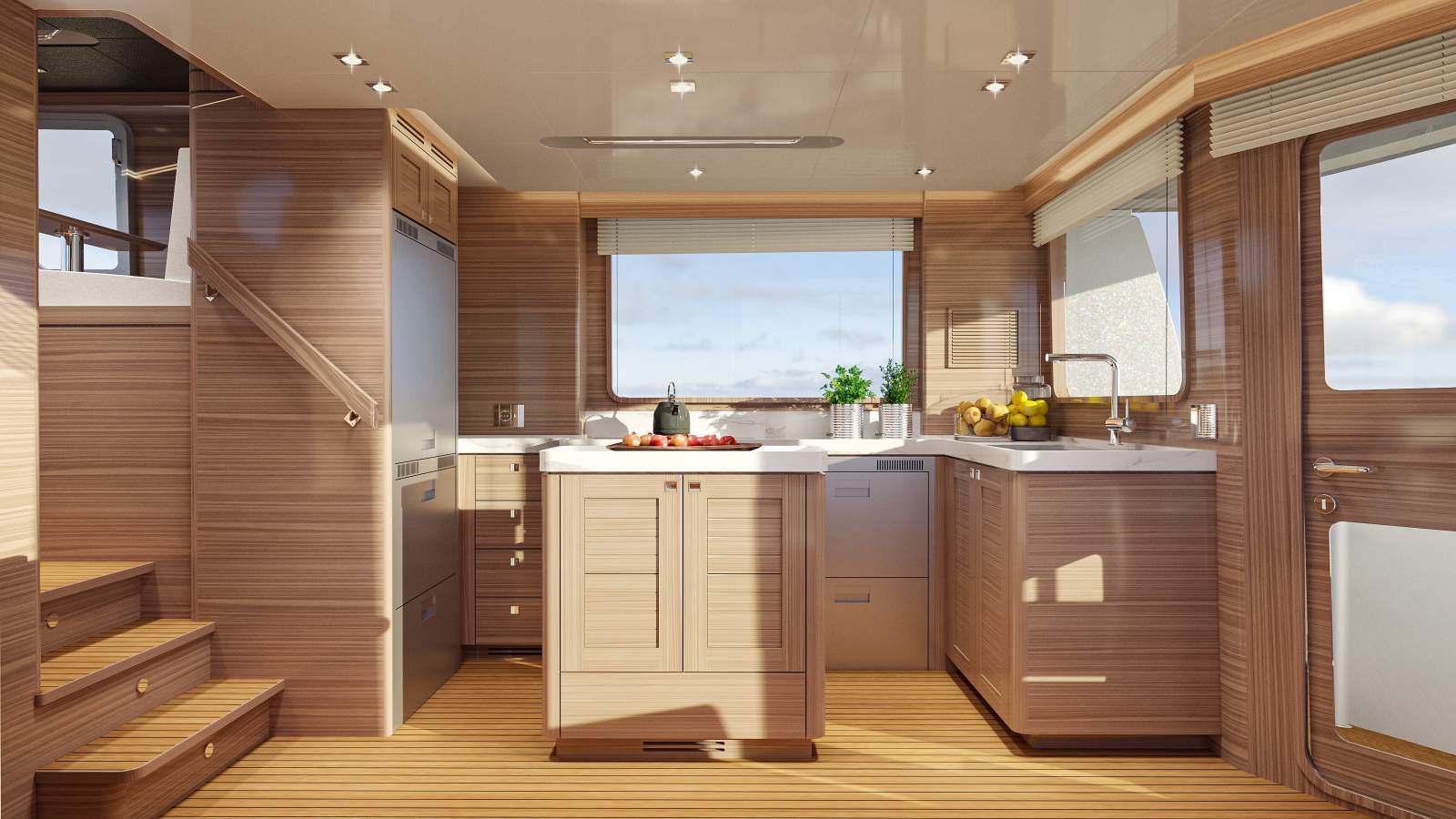

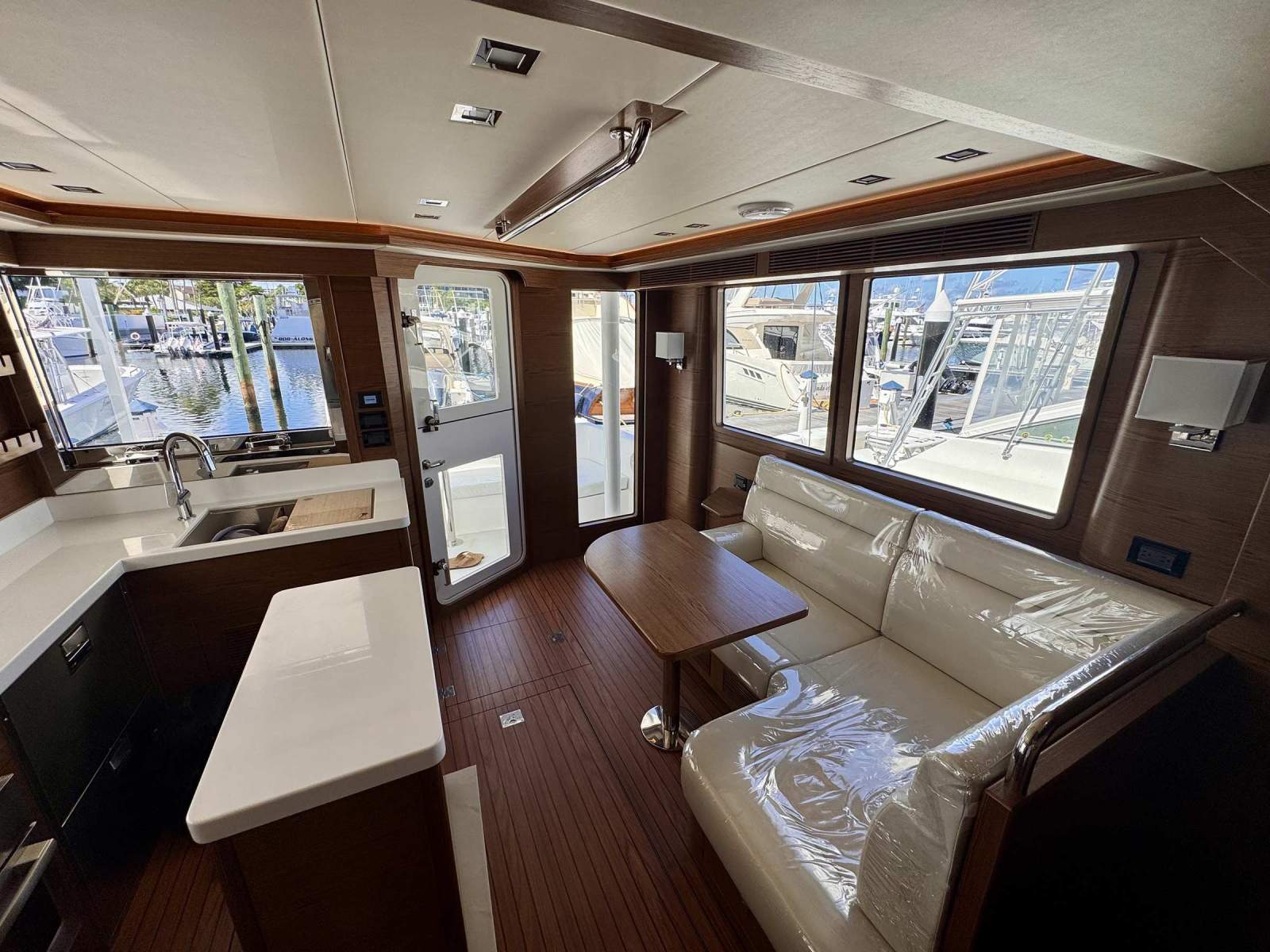

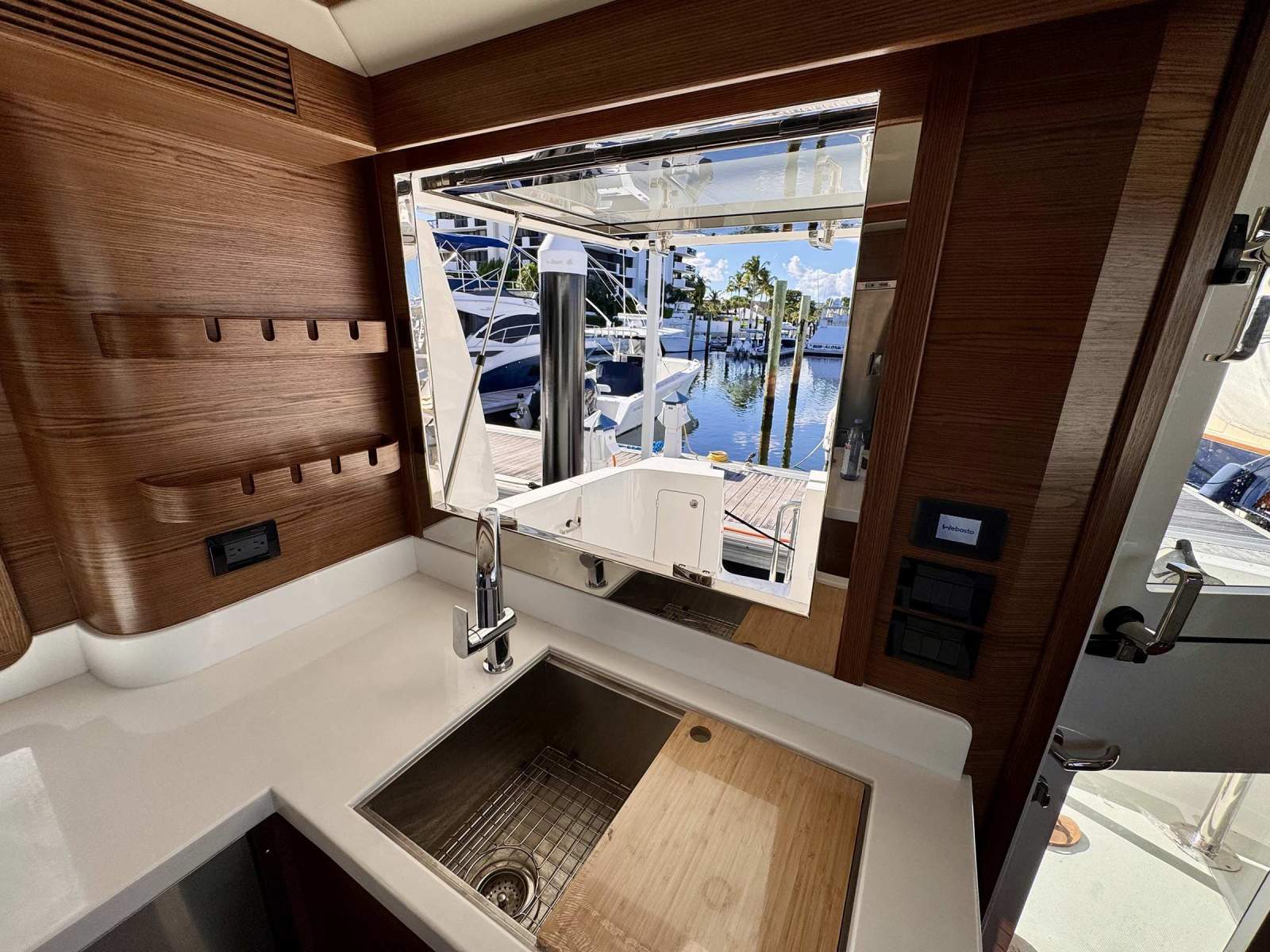

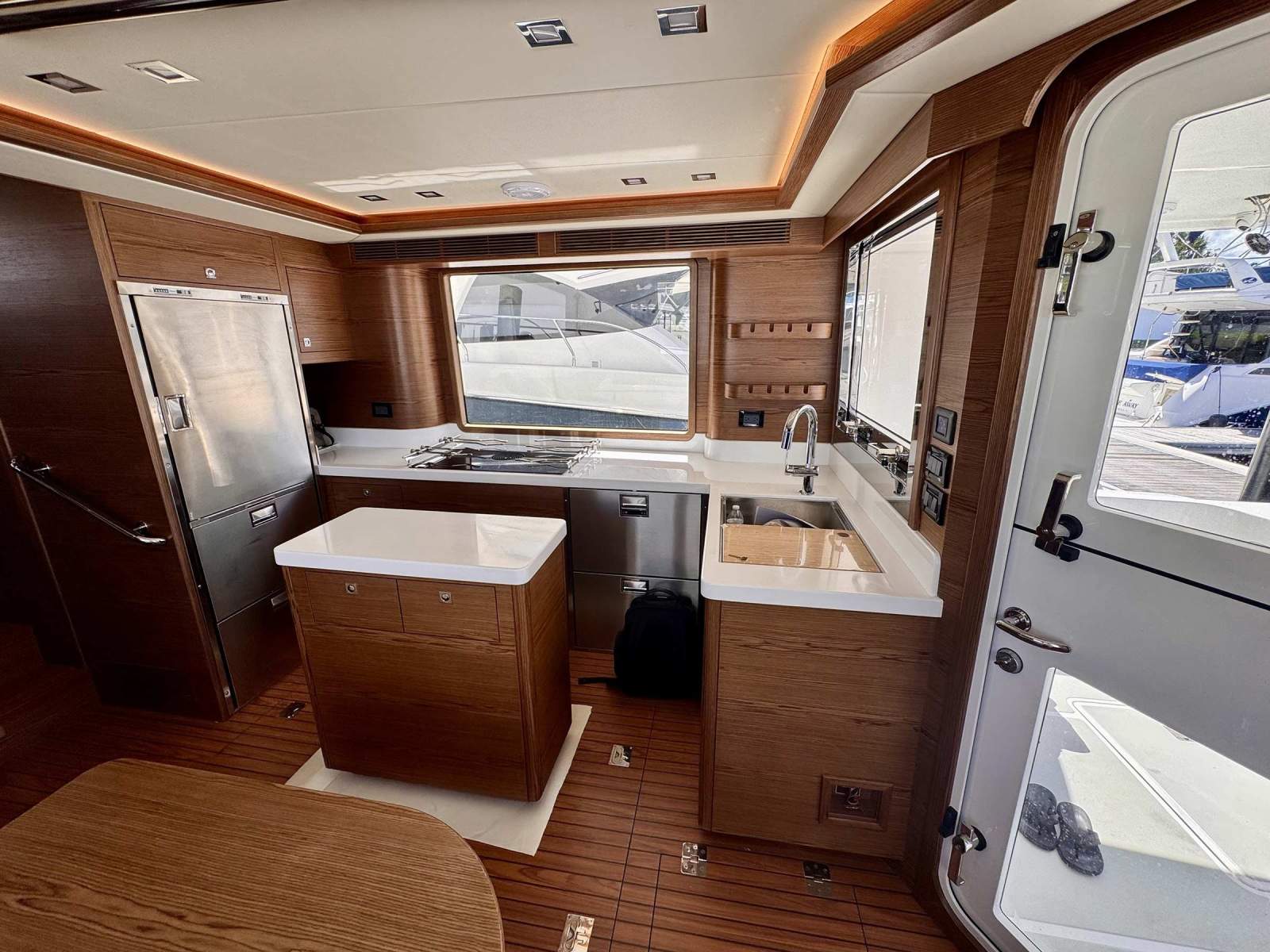

GalleySeagoing galley with full appliances including refrigerator/freezer, stove and oven, microwave, double sink.

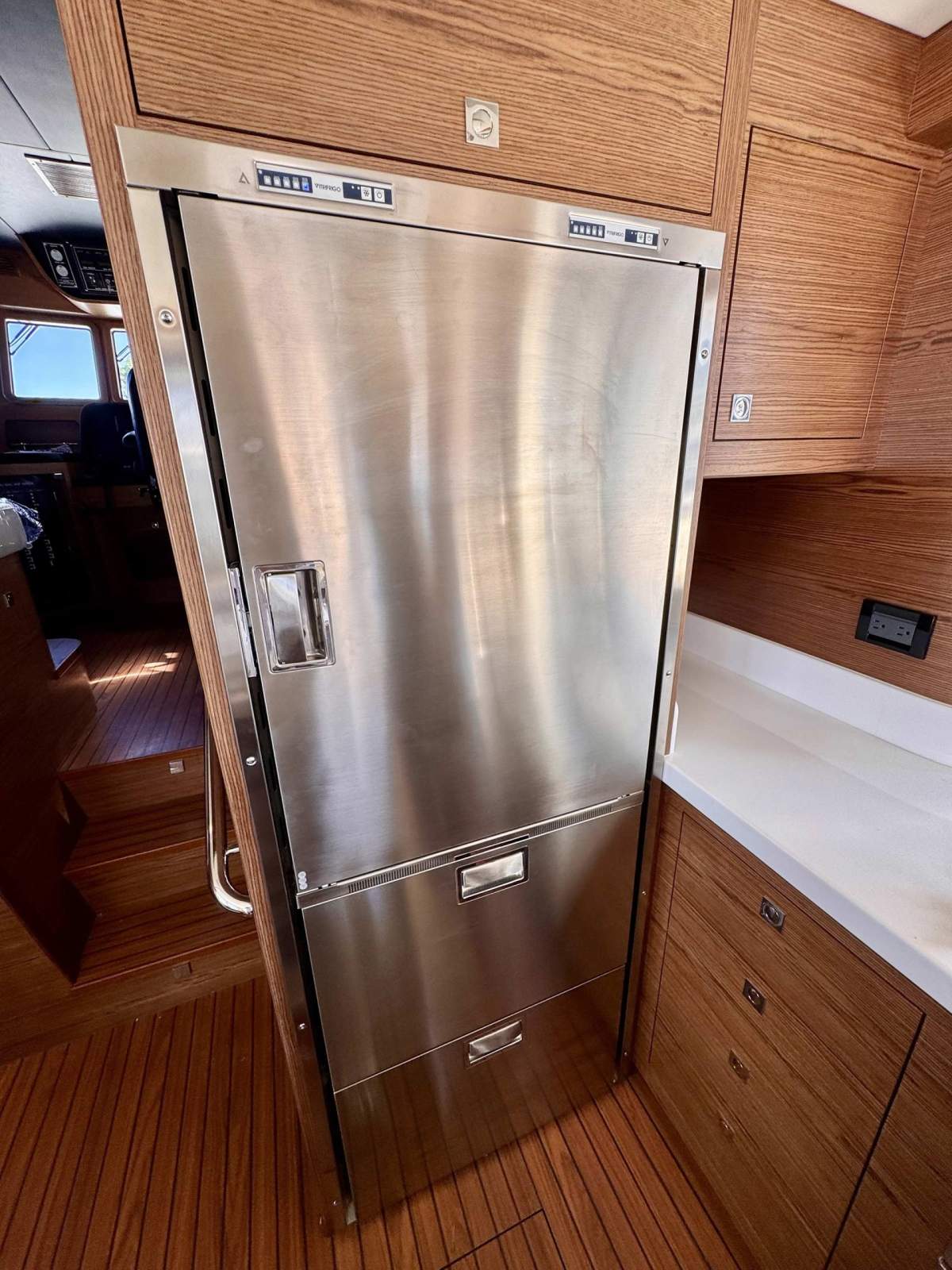

RefrigerationFull-size refrigerator and freezer unit, 24 V DC / 240 V AC operation.

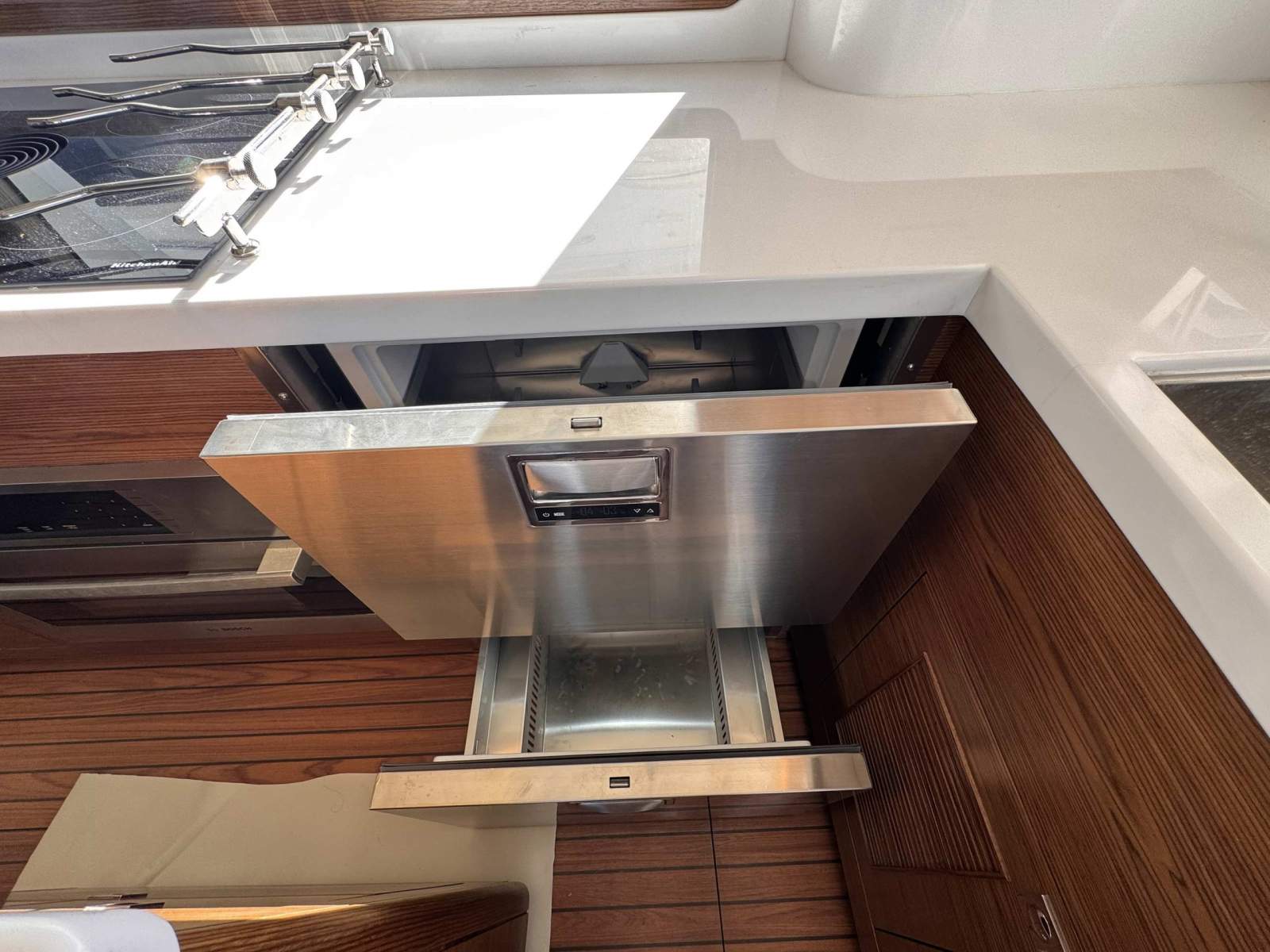

FreezerIntegrated within galley refrigerator/freezer; option for additional under-counter freezer
StoveElectric cooktop with oven

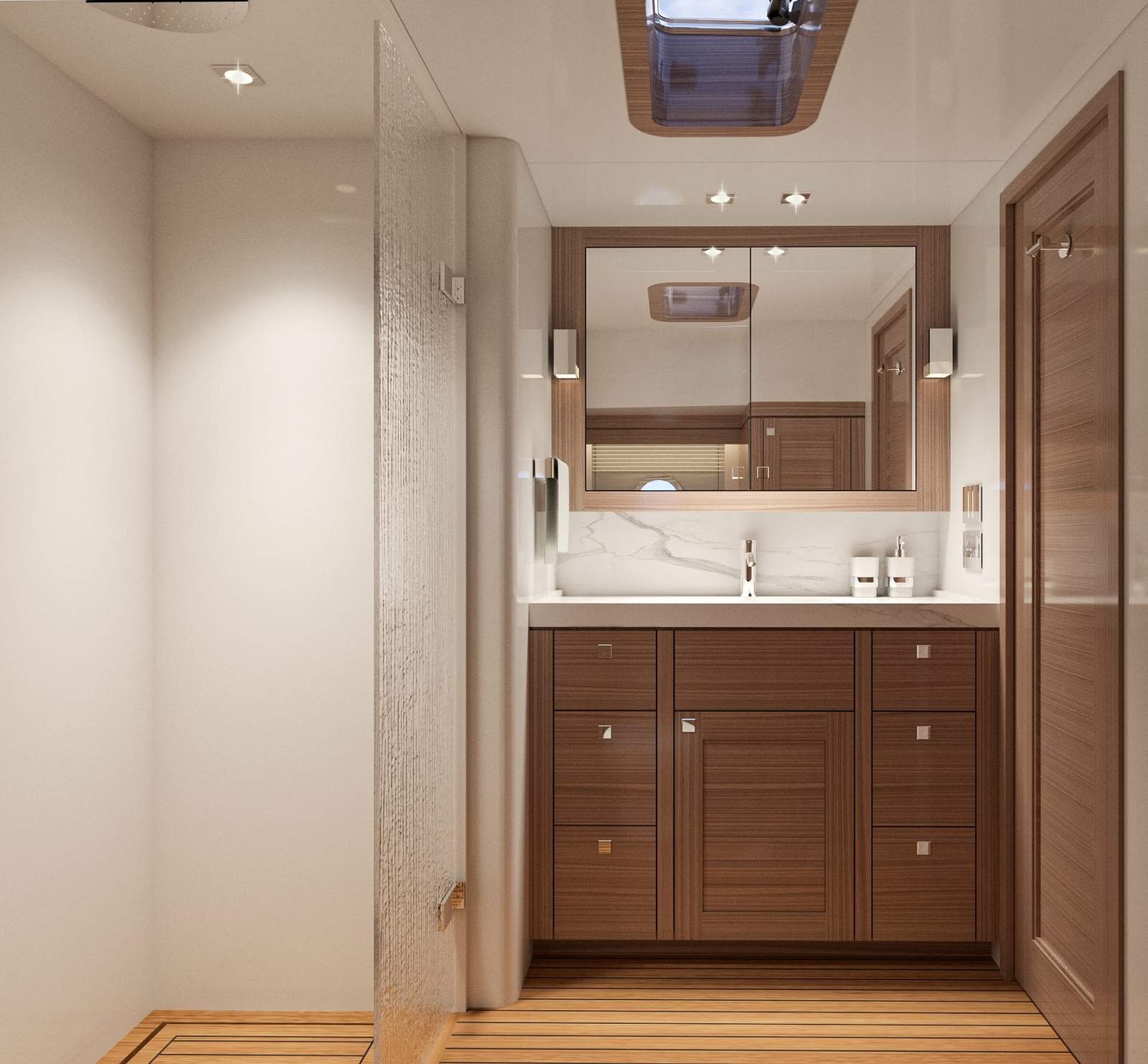

ShowerTwo enclosed showers
ToiletTwo Tecma Silence Plus freshwater-flush electric heads
Air conditioningWebasto BlueCool V50 chiller system with individual air handlers in each cabin
EntertainmentFusion MS-RA770 multi-zone audio system with speakers in saloon, pilothouse, cockpit and flybridge; three QLED TVs in saloon and cabins.
Hot water11 gal (41.6 L) Seaward or Attwood water heater
Tankage, deck and safety
Fuel capacity4,542 L
Water capacity1,514 L (400 US gal) in two FRP tanks with level gauge at helm.
Bilge pumpsRule 3700 GPH electric bilge pumps and Whale Gusher 30 manual pump
Life raftFitted space and deck mount for six-person offshore life raft
Life jacketsEight adult life jackets
Flaresoffshore flare kit including hand-held, smoke, and parachute
Fire protectionEngine room fire suppression system
Navigation and electrical

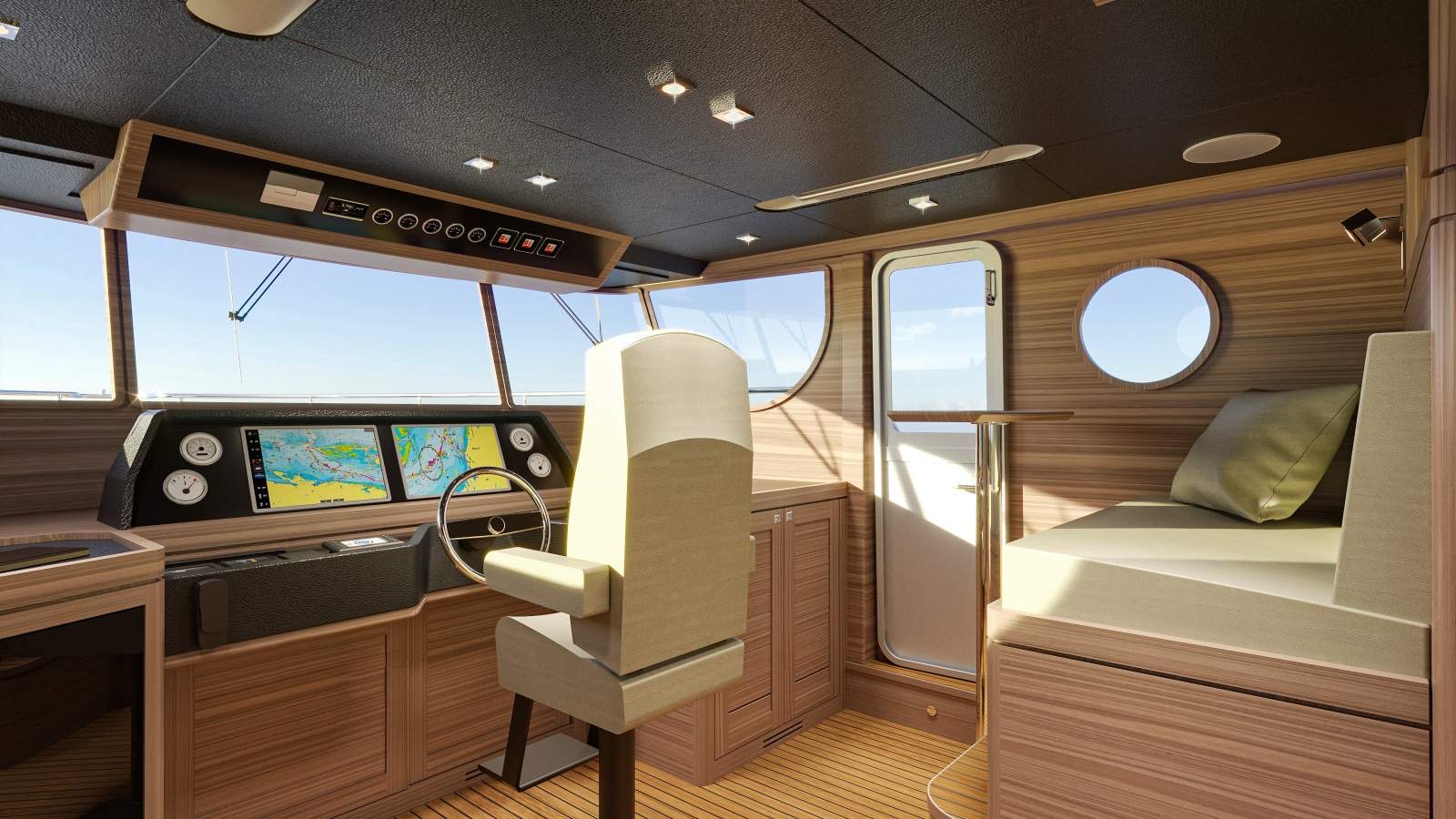

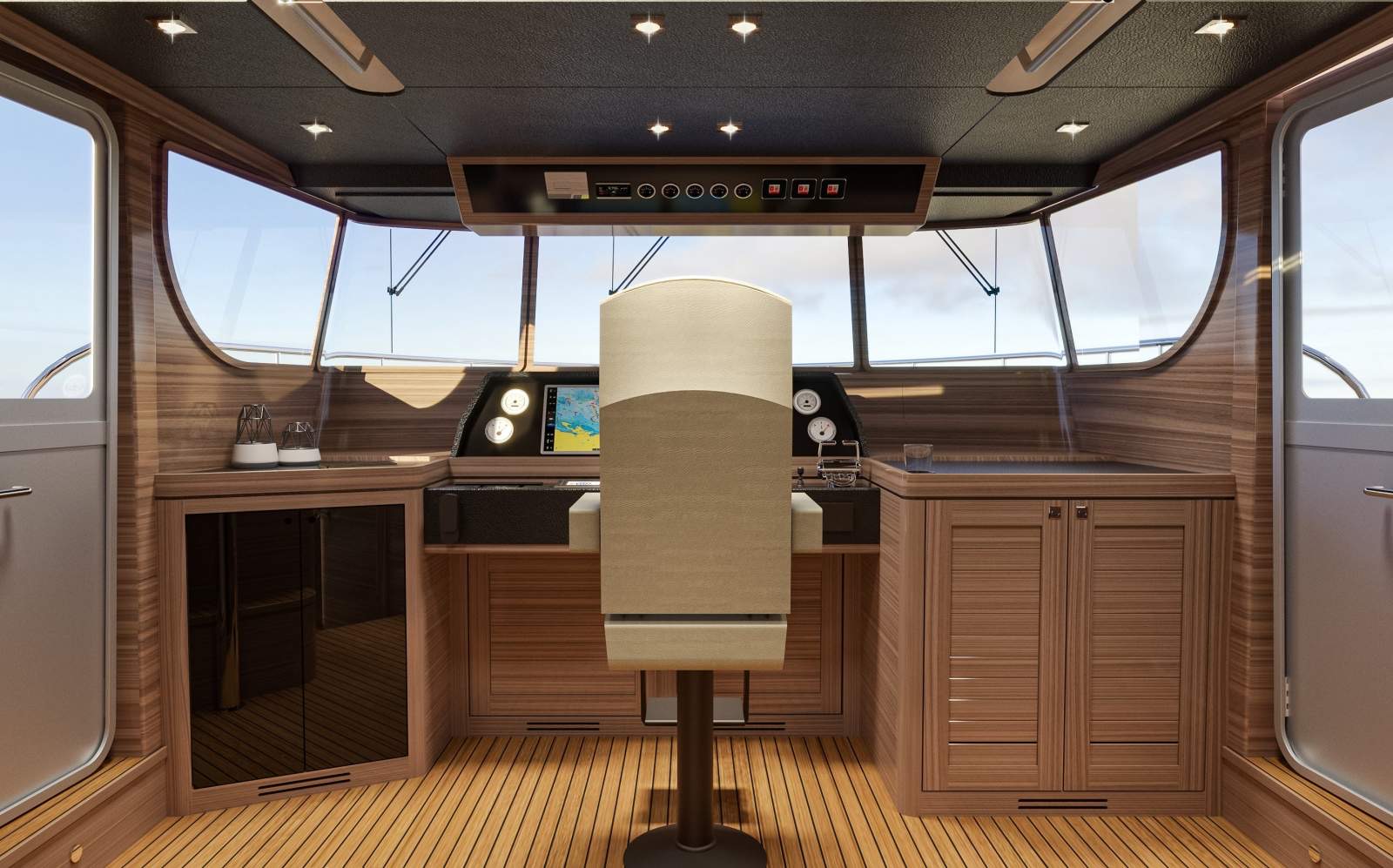

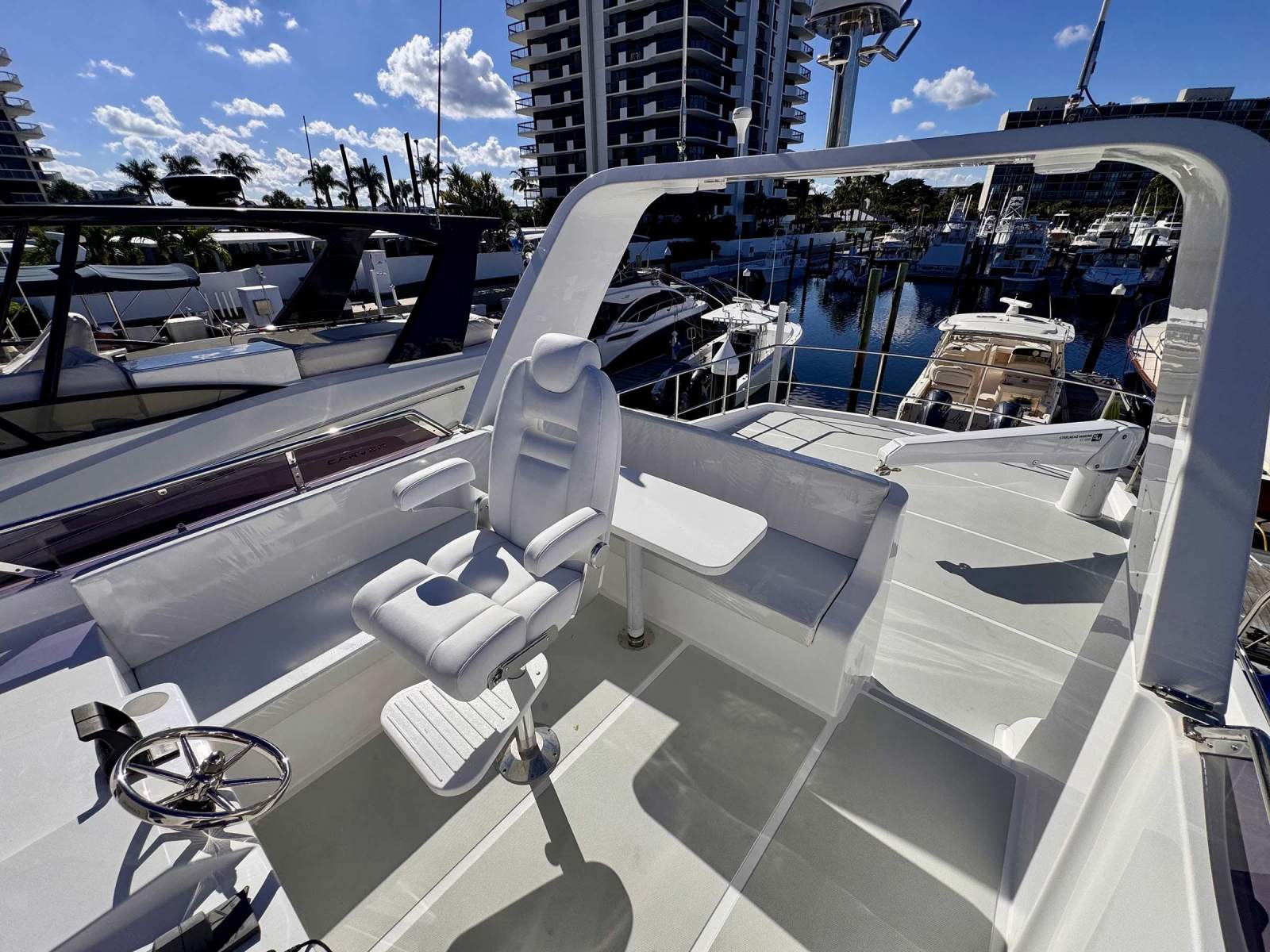

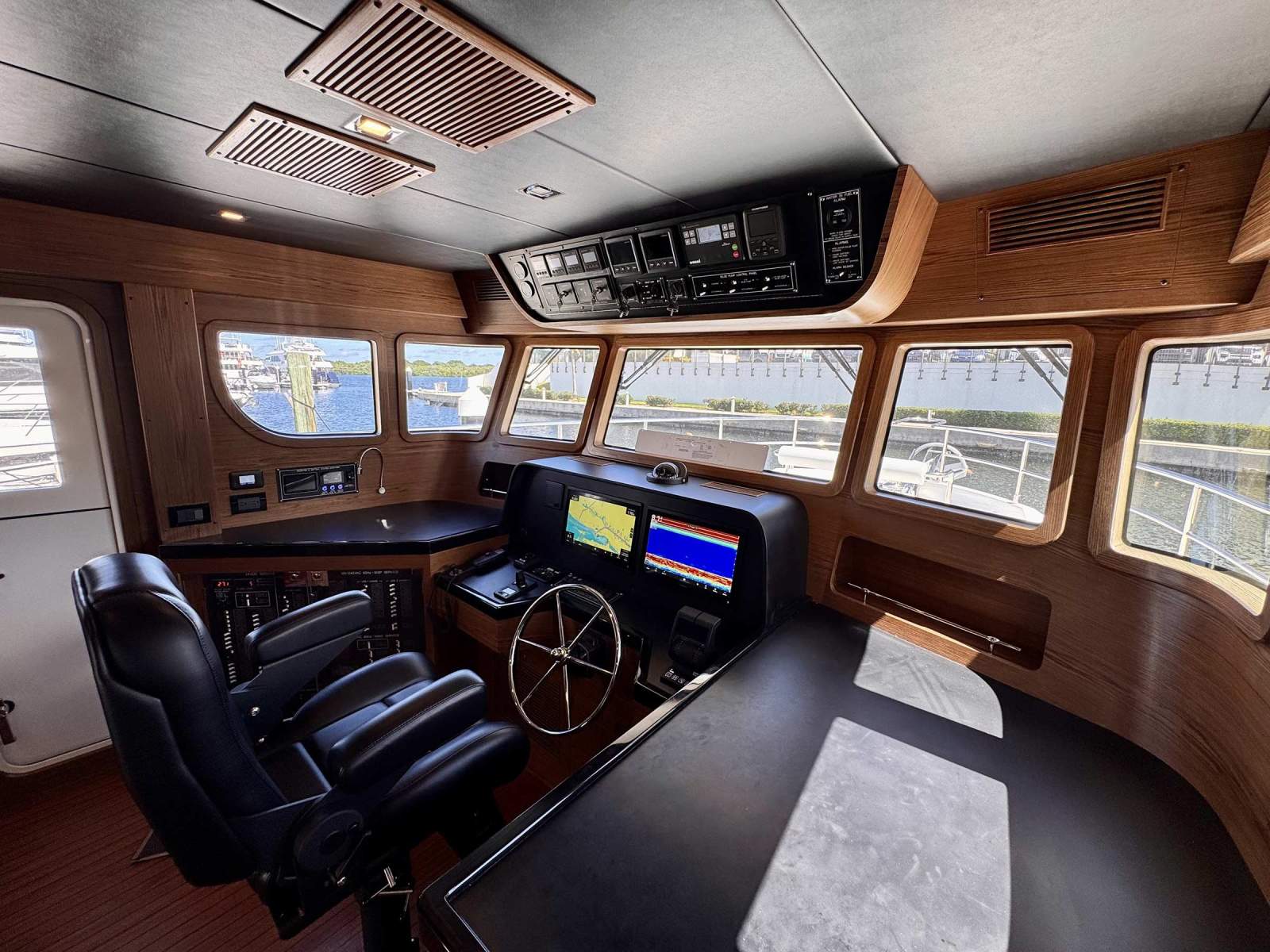

ElectronicsGarmin suite including twin 16" GPSMAP displays at helm and one on flybridge; open-array radar; Reactor autopilot system with SmartPump; VHF AIS radios at both stations; depth and temperature transducer; engine room camera with network feed; ACR RCL-100 LED searchlight; magnetic compass and navigation lighting to international standard.
ElectricsFour 230 Ah, 24 V MG lithium house batteries with dual Victron Quattro inverter-chargers, isolation transformer, shore power inlets and protected AC/DC distribution.
